Casio XJ-V10X User Manual

73
Appendix
This section explains how to establish a component video connection between the projector and a
video device.
 Component video output terminals come in 3-terminal sets: Y·Cb·Cr or Y·Pb·Pr. Be sure to match
the colors of the plugs on a component video cable with the colors of the terminals (Green: Y;
Blue: Cb/Pb; Red: Cr/Pr).
 Note that connection only to an analog component video output terminal is supported.
Connection to a digital output terminal is not supported.
XJ-V Series

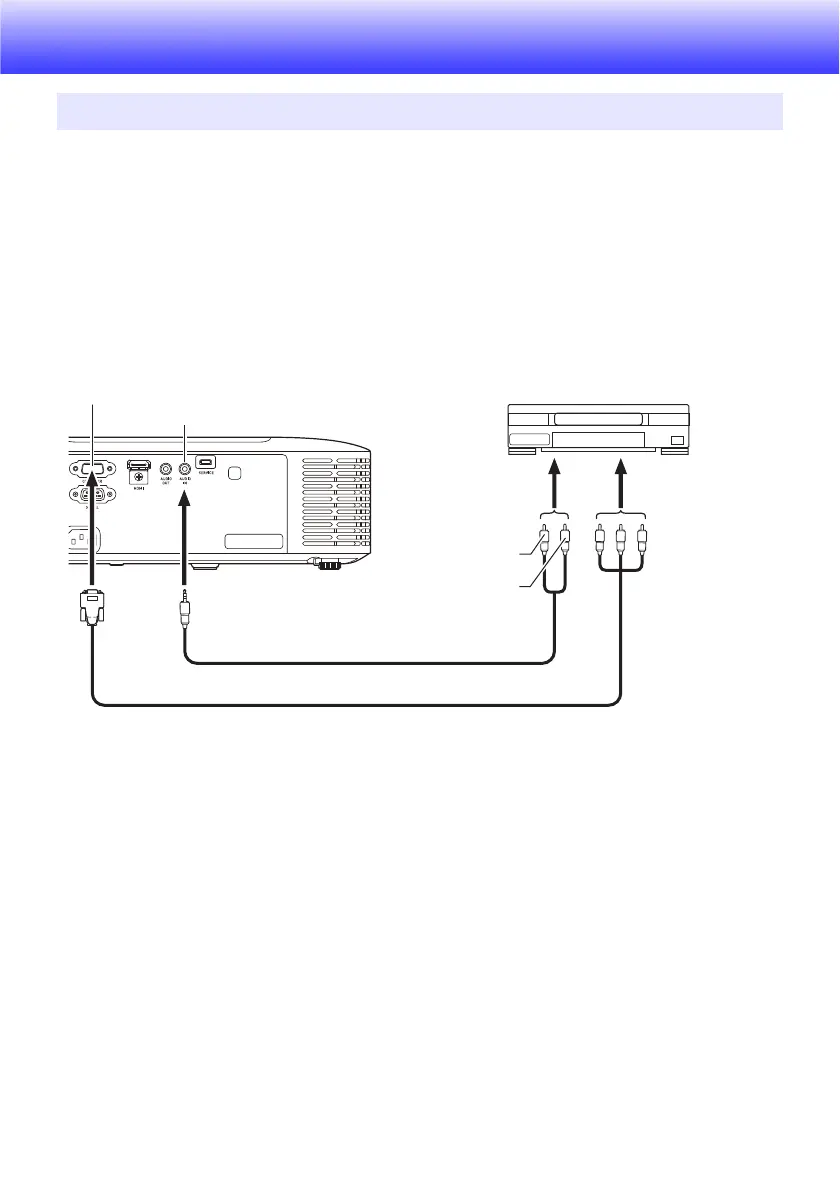

Connecting to a Component Video Output
Projector
Stereo mini plug

Pin plug type audio cable
(commercially available)
To component video
output terminals
Component video cable (commercially available)
To audio output terminals
White
Red
COMPUTER terminal
AUDIO IN terminal
Video device

Casio XJ-V10X Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	1.95 - 2.87 m
Projection technology	DLP
Contrast ratio (typical)	20000:1
Screen size compatibility	30 - 300 \
Projection distance (tele)	3.33 - 4.85 m
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	+ 30/ ± 30 °
Focus	Manual
Offset	50 %
Digital zoom	2 x
Optical zoom	1.5 x
Zoom capability	Yes
Focal length range	2.31 - 2.73 mm
DVI port	No
Audio (L/R) in	0
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Maximum digital resolution	1920 x 1080 pixels
Operating temperature (T-T)	5 - 35 °C
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Power source	-
Power consumption (standby)	180 W
Service life of light source	10000 h
Service life of light source (economic mode)	6000 h
Analog signal format system	NTSC, PAL, PAL 60, PAL M, PAL N, SECAM

Weight and Dimensions

Width	299 mm
Height	97 mm
Weight	3500 g
