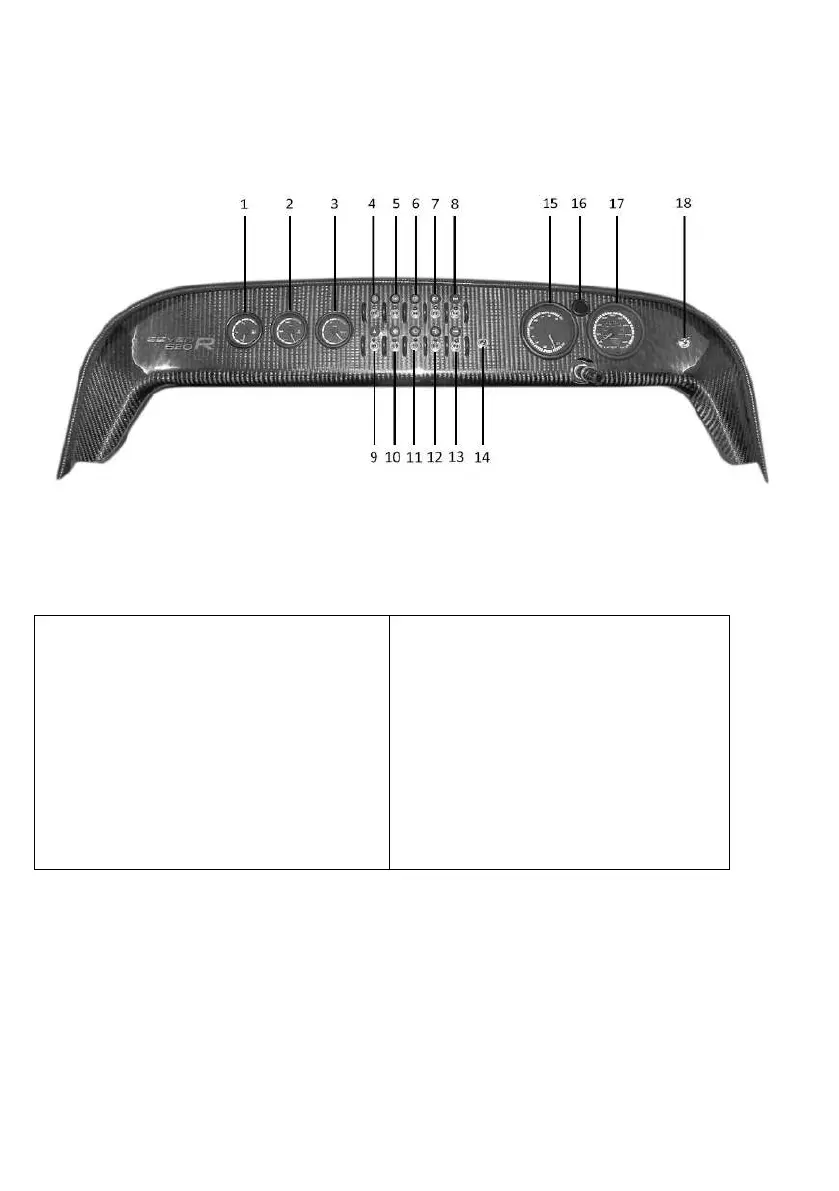

Caterham Seven - Figure 4: Dashboard Layout for Seven 620 R

12
NOTE: For full windscreen option the wiring connection to dashboard buttons for heated screen, wipers etc are
already connected if specified.
Controls
1. Fuel gauge
2. Temperature gauge
3. Oil pressure gauge
4. Fog light switch
5. Heated Screen switch
6. Screen washer switch
7. Main Beam switch
8. Horn Switch
9. Hazard Switch
10. Heater Fan Switch
11. Wiper Switch
12. Dipped beam / sidelights
13. Start Switch
14. Indicator Switch
15. Rev Counter Display
16. Gear indicator Display
17. Speedometer
18. Flasher Switch for Main
Note: 620 R Dashboard with steering wheel removed.
Figure 4: Dashboard Layout for Seven 620 R
