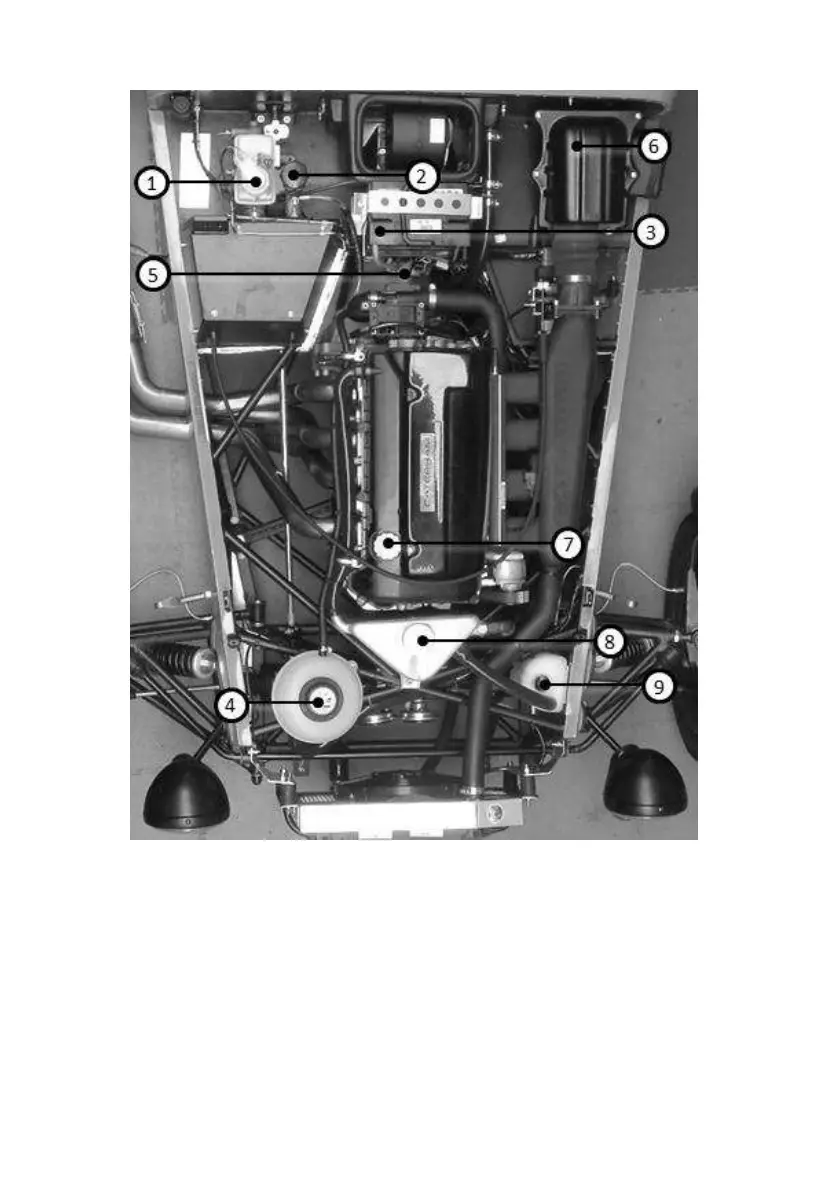

Caterham Seven - Figure 13: under Bonnet Location - Duratec 180; 210

31
1. Brake fluid reservoir
6. Air filter
2. Clutch fluid reservoir
7. Engine oil filler cap
3. Battery
8. Oil tank filler cap
4. Coolant filler cap
9. Oil catch tank cap (for dry sump systems)
5. ECU (located under battery)
NOTE: Under bonnet location for Superlight R400 with dry sump is similar as standard
R400 apart from oil tank located near coolant tank and oil cooler in front of the radiator.
Also, car pictured has washer bottle located in boot, see following page for location.
Figure 13: Under bonnet location – Duratec 180 / 210
