Caterham Seven - Figure 10: under Bonnet Location - EU4 Sigma 120

63 pages

Save Page as PDF

To Next Page

To Previous Page

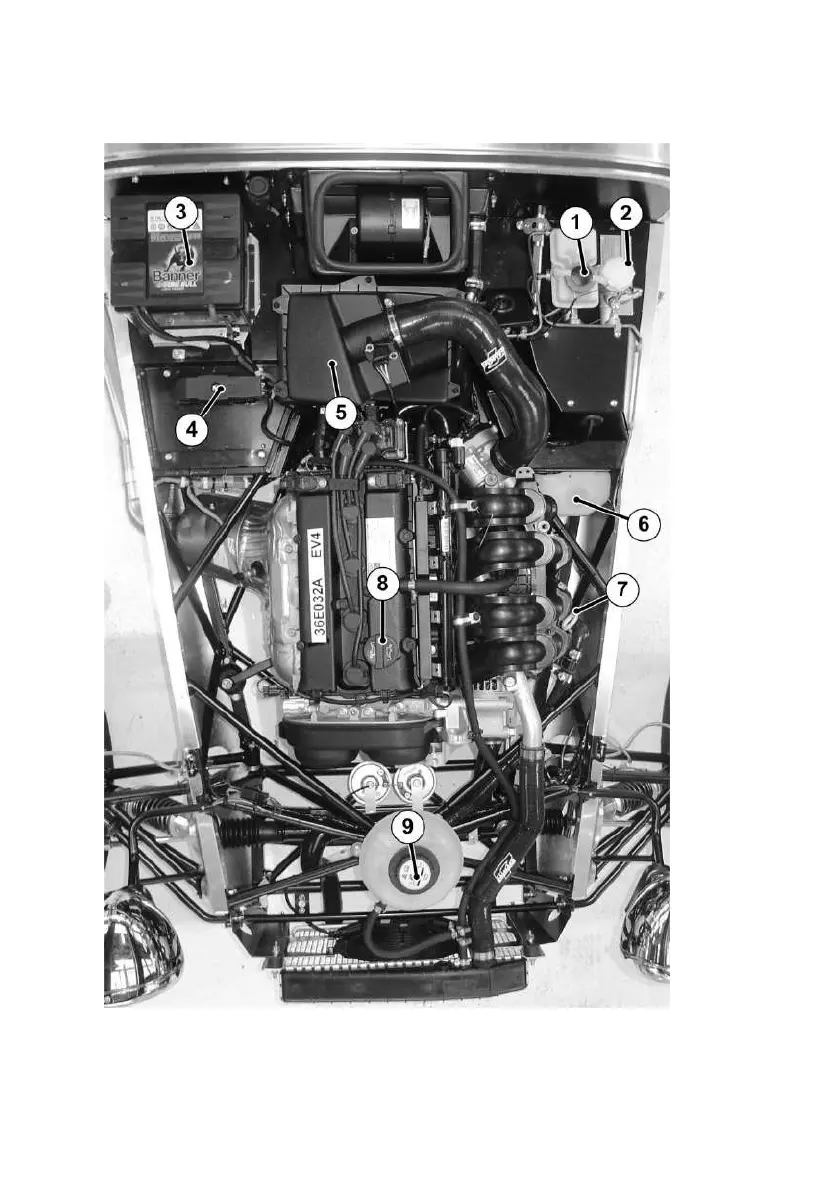

1. Brake fluid reservoir

6. Windscreen washer fluid

2. Clutch fluid reservoir

7. Dip stick

3. Battery

8. Engine oil filler cap

4. ECU

9. Coolant filler cap

5. Air box

Figure 10: Under bonnet location – EU4 Sigma 120
