Fuses and relays
The fuse box is located under the dashboard on the
vertical face of the engine bulkhead (see illustration
below). Although the fuses and relays are not
numbered the tables below are in the order that
they will be found in the fuse box working from the
top down.
Fuses and relays - K6A Suzuki
K6A Suzuki
Fuses
1 = EMS Wake-Up
5A
2 = EMS Ignition Supplies (non-critical)
7.5A
3 = Brake/Reverse Lamps
10A
4 = Ignition Services
7.5A
5 = Heater
7.5A
6 = Demist
10A
7 = Washers & Wipers
10A
8 = Power socket
10A
9 = Horns
7.5A
10 = Headlamps
15A
11 = Headlamp Flash
15A
12 = EMS Ignition Supplies (critical)
15A
13 = Flasher Unit
10A
14 = Diagnostic Connector
5A
15 = Side Lamps & Rear Fog Light
7.5A
16 = Immobiliser
7.5A
17 = EMS ECU Power
10A
18 = Spare
-
19 = Fuel Pump
15A
20 = Cooling Fan
15A
Fuses and relays - Sigma
Sigma
Relays
Ignition
1
Lights
2
Indicator
3
Hazard
4
Starter
5
Fuel Pump
6
Cooling Fan
7
Fuses
A= Brake Lights
7.5A
B = Reverse Light
5A
C = Instruments
7.5A
D = Heater
7.5A
E = Heated Screen
10A
F = Rear Fog Light
5A
G = R/H Side/Tail Light
7.5A
H = L/H Side/Tail Light
5A
I = Main Beam
15A
J = Dip Beam
15A
K = Wipe/Wash
15A
L = Horn
7.5A
M = Flasher Unit
10A
N = Fuel Pump
15A
O = Power Socket
10A
P = Ignition Supply Engine
15A
Q = Ignition Supply Engine
15A
R = Ignition Supply Engine
15A
S = Ignition Supply Engine
15A
T = Main Feed Engine
15A
U = Acc Cluster engine
7.5A

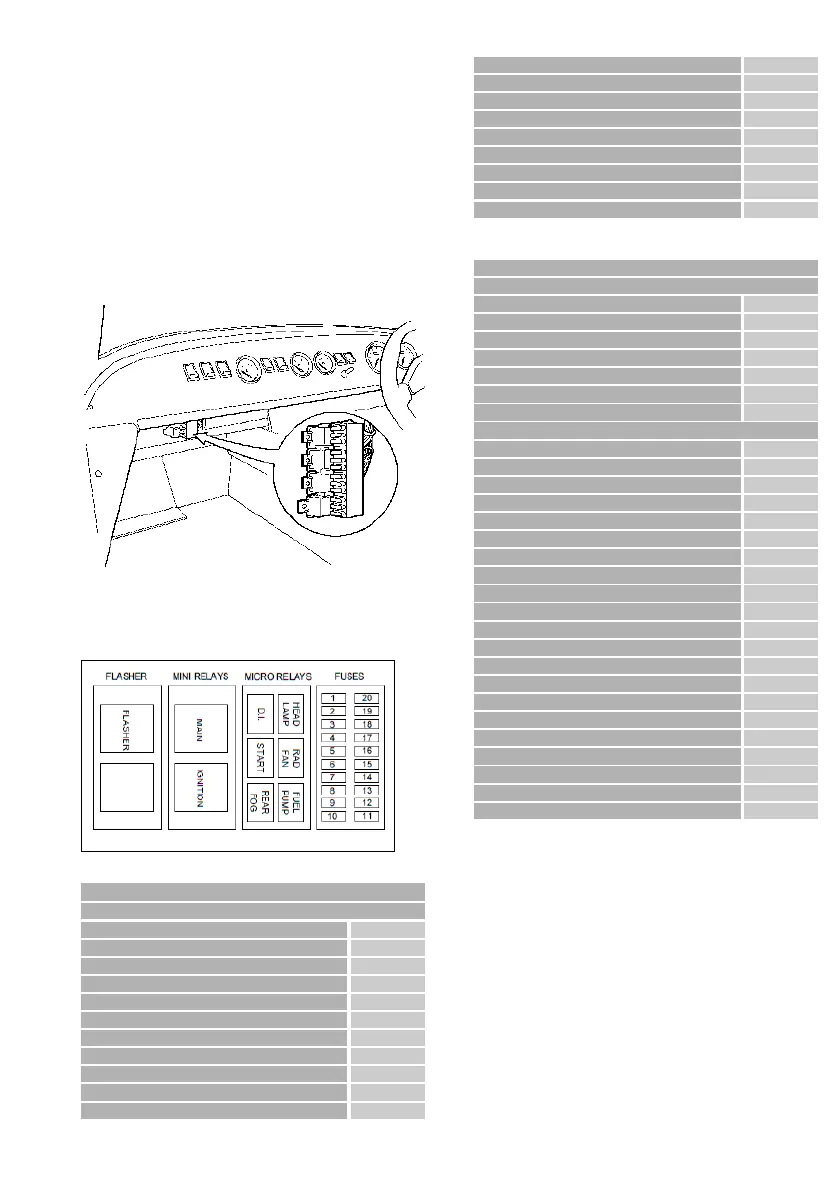

Figure 27: K6A Fuse box and relay layout
Figure 26: Fuse box and relay location
