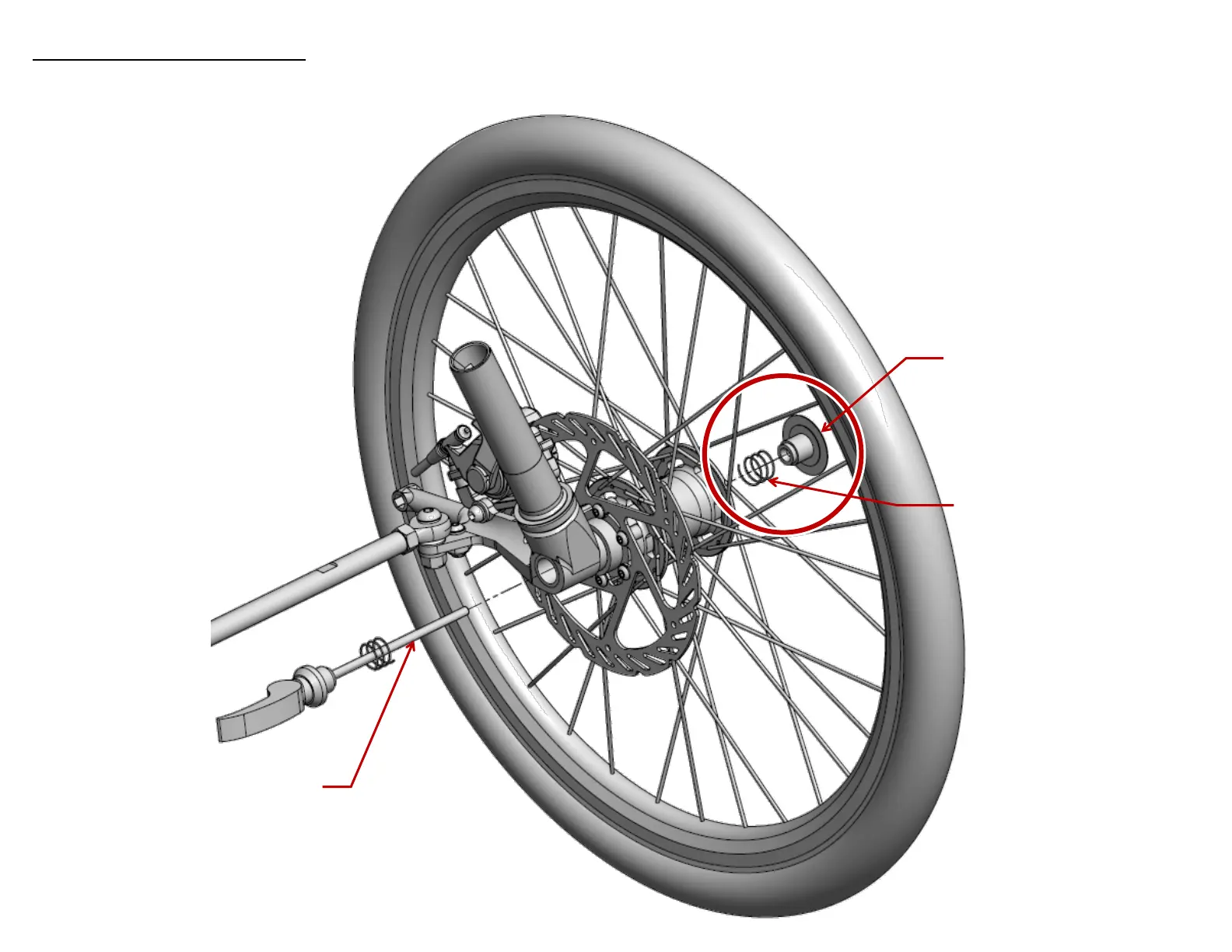

WHEEL INSTALL STEP 3
INSTALL A SPRING ON EACH
SIDE OF THE AXLE ASSEMBLY.
INSTALL THE QUICK RELEASE
SKEWER SO THAT THE HANDLE
IS ON THE INSIDE OF THE
SPINDLE AND THE AXLE NUT
IS ON THE OUTSIDE OF THE
HUB.
QUICK RELEASE HANDLE AND SKEWER
CONICAL AXLE NUT
AXLE SPRING (2x)
