REV 12.18.24 Pg.26 MAX
ADJUSTABLE SEATBACK ADJUSTMENT

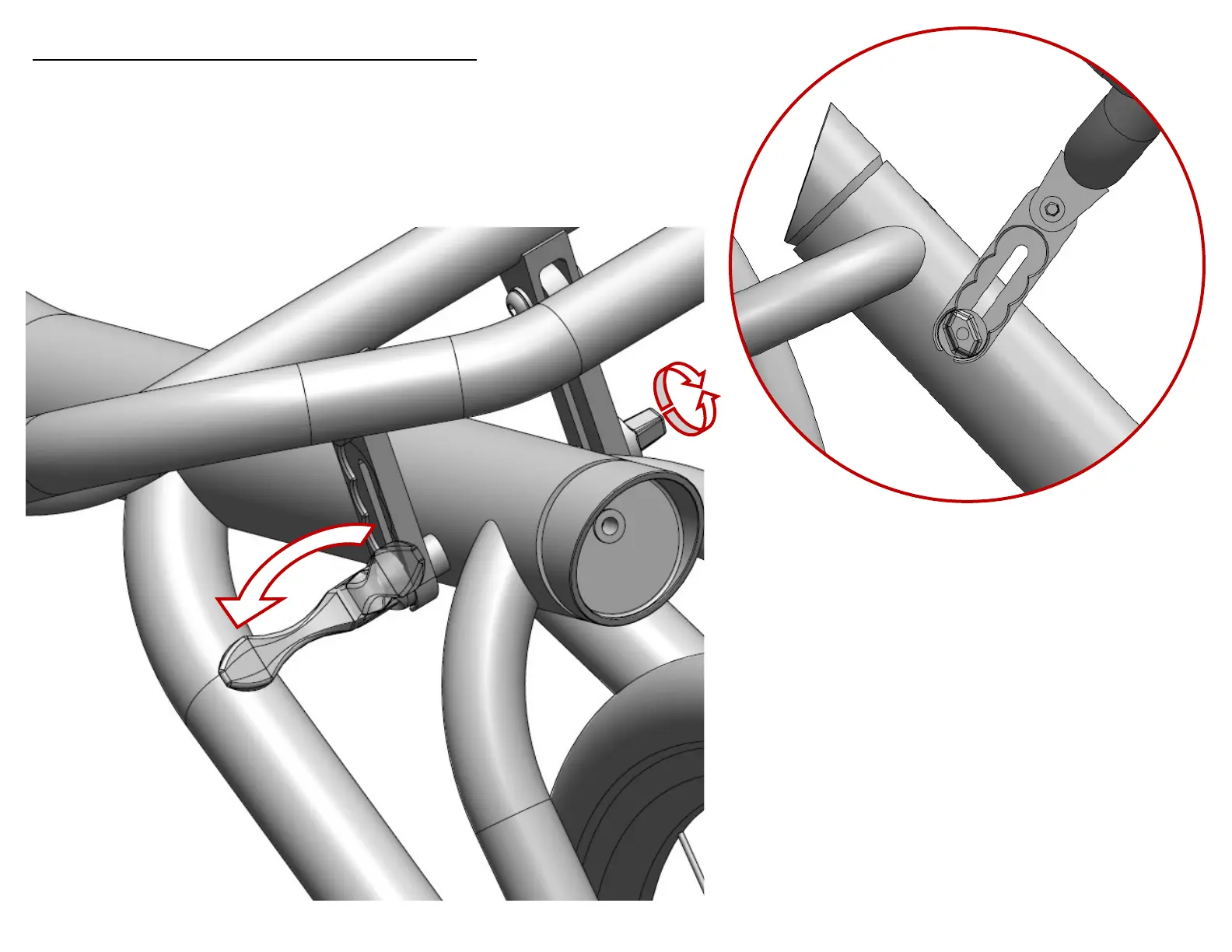

STEP1
OPEN THE SEATBACK QUICK
RELEASE AND LOOSEN THE
QUICK RELEASE NUT UNTIL
THE SEATBACK FORKS CAN
MOVE FREELY
STEP2
SLIDE THE SEAT INTO ONE OF
THE FOUR POSITIONS ON THE
ADJUSTMENT FORK
STEP3
TIGHTEN QUICK RELEASE NUT SO THAT
WHEN CLOSING THE QUICK RELEASE
HANDLE THE SEATBACK DOES NOT MOVE
