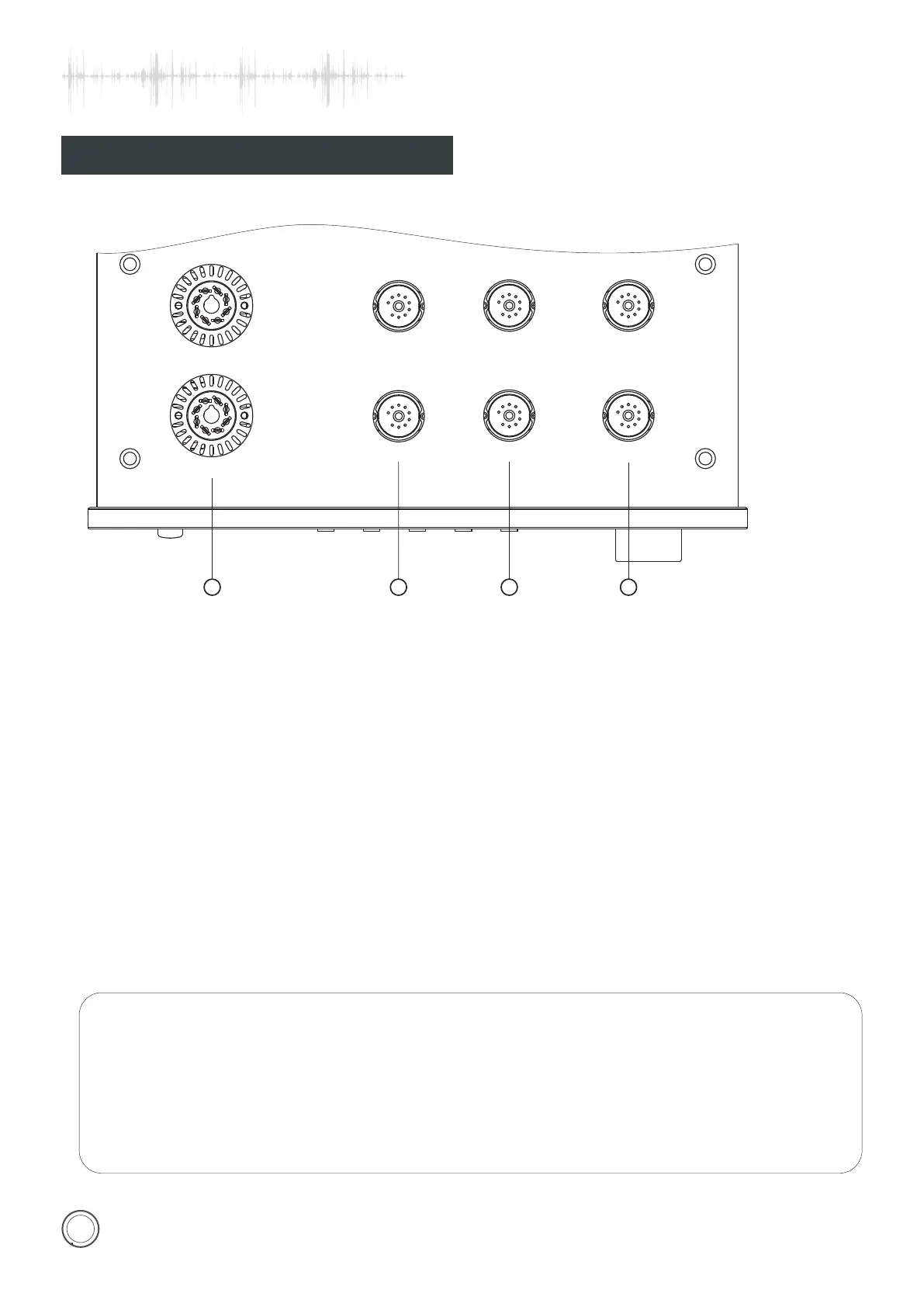

Cayin CS-6 PH - Top Panel Tube Layout; Top Panel V7, V8 Tube Location; Top Panel V3, V6 Tube Location; Top Panel V2, V5 Tube Location

Top Panel
9
NOTE
◆ Be careful of the high temperature of the tubes during operation.
◆ Please replace the power tubes after switch off in 20 minutes, and follow the suggetion to unplug the
inset the tubes.
◆ Power tubes must be matched for well function.
① V7、V8:RCA 22DE4
② V3、V6: 12AT7EH/ECC81
③ V2、V5:JJ 12AX7/ECC83
④ V1、V4: 6922EH/ECC88
.
.
.
.
Electro-Harmonix
Electro-Harmonix
1
2
4
V8
22DE4
V7
22DE4
V6
/
12AT7
ECC81
V5
/
12AX7
ECC83
V4
/
6922
ECC88
V3
/
12AT7
ECC81
V2
/
12AX7
ECC83
V1
/
6922
ECC88
3
