LINE1BALANCE LINE2
MODEL : M-11LS
LINE3 BALANCEOUT1 OUT2
OUTPUT
220 50 70
FUSE T1AL250V
VACUUM TUBE PRE- AMPLIFIER
T500mAL25 V0
62
RCA
XLR
MC MM
GND
OUTPUT
INPUT
ZHUHAI SPARK ELECT RO NI C EQ UIPMENT CO., LTD.
RISK OF ELECTRIC SHOCK
CAU TIO N
DO NOT OPEN
-CS 6PH
VACUUM TUBE PHONO PREAMPLIFIER

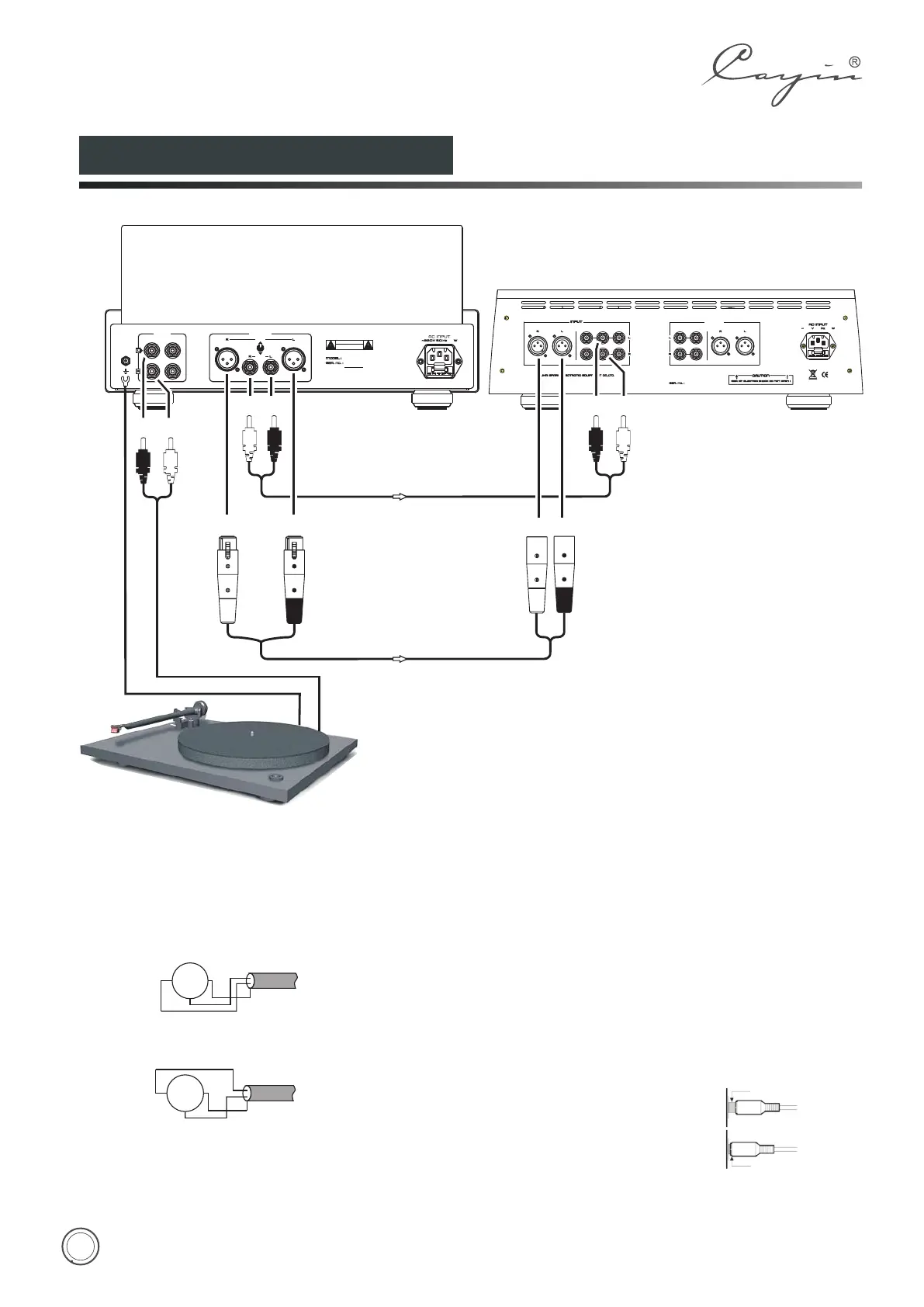

Audio Connection
Connection method of CAYIN CS-6PH with other audio equipments Take pictures below for your reference.
11
R L L R
L R
LR
R L
Wrong connection
Right connection
Balanced Connector:
1.This amplifier use XLR connectors that are
commonly used in professional application
for balanced connection.
2.There are two XLR wiring standards:
①
②
③
GND
HOT
COL D
①
②
③
GNDCOL D
HOT
European standard: pin 1=Ground,
Pin 2 = COLD, Pin 3 = HOT
American standard: pin 1=Ground,
Pin 2 = HOT, Pin 3 = COLD
3.This amplifier use American standard. When
connect to audio equipment with balanced output
wired in European, the playback signal might be in
reversed phase. We advise user to maintain the
phase of the system correctly.
Attention to Audio Connection:
1.Please refer to the manual of associated
equipment whenever necessary.
2.Do not connect the power cord until all
equipment are properly connected
3. “R”indicates the right channel; “L” indicates
left channel.
4.Please make sure all connectors are securely
installed. Bad connection might cause noise
and degrade in audio performance, or even
damaging your equipment.
5.Please do not tie the power cord, audio
interconnects, and speaker cable together or
run them in parallel because
this will produce adverse
effect on audio performance.
Note: Please make sure + and -, left and right are
connected properly.
