Fitting the furniture (decor) door
The machine is supplied with a fitting template that aligns with the top
of the décor door and has arrows cut out of it that point toward the
door top. NOTE: If this template is aligned with the top of the décor
door, the resultant position will align the décor door top with the top of
the machine fascia.
The required height of the door top edge above the fascia panel,
and hence the gap between décor door and worktop, can only
be determined by the fitter after the final height adjustment of the
machine has been determined. The final positioning of the template
is therefore at the discretion of the fitter. The furniture door should
be fitted to the casing of the machine using the hinges supplied. Any
osets should be accounted for.

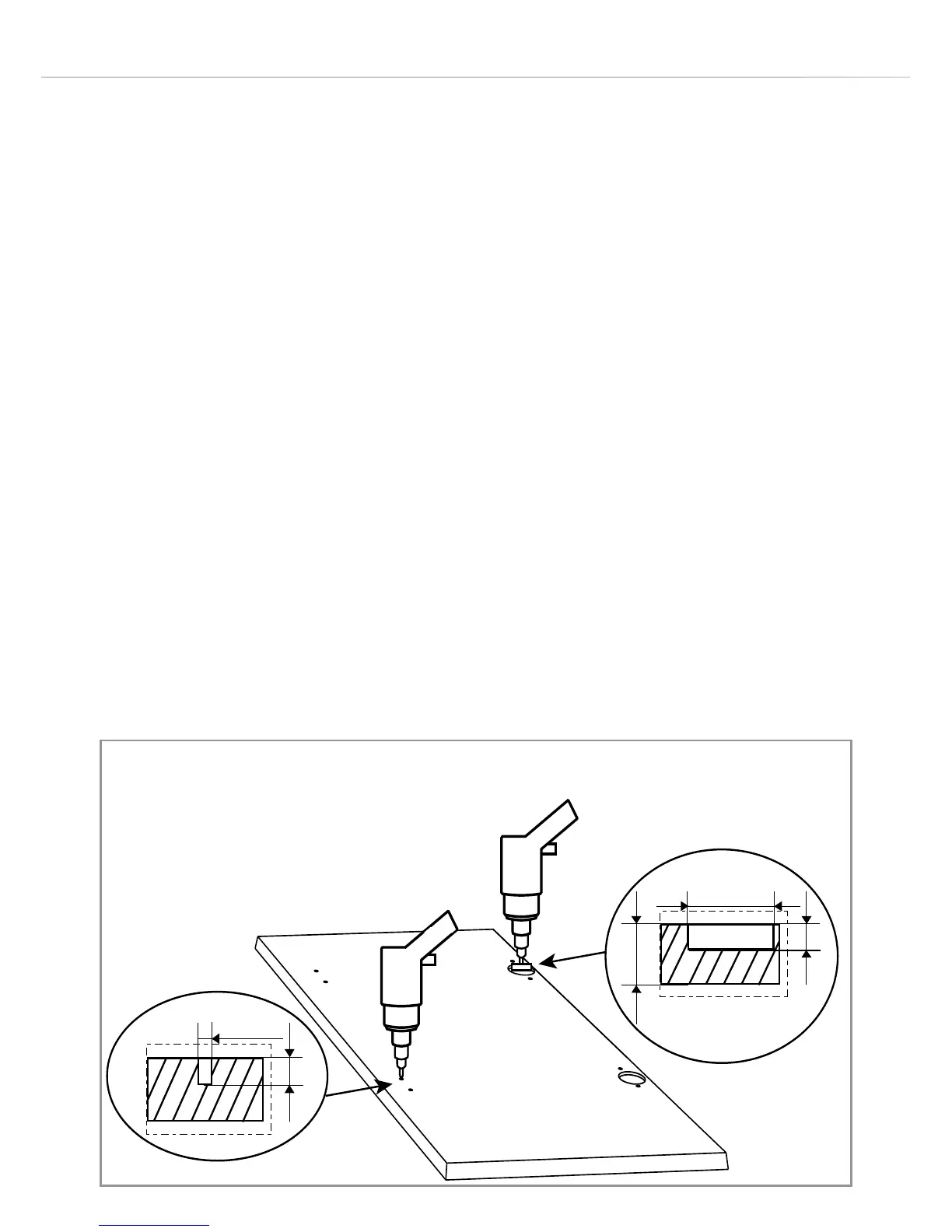

CHECK THAT THE DECOR DOOR ALIGNS PROPERLY BEFORE
DRILLING THE HINGE HOLES. RE-MARK IF NECESSARY.
