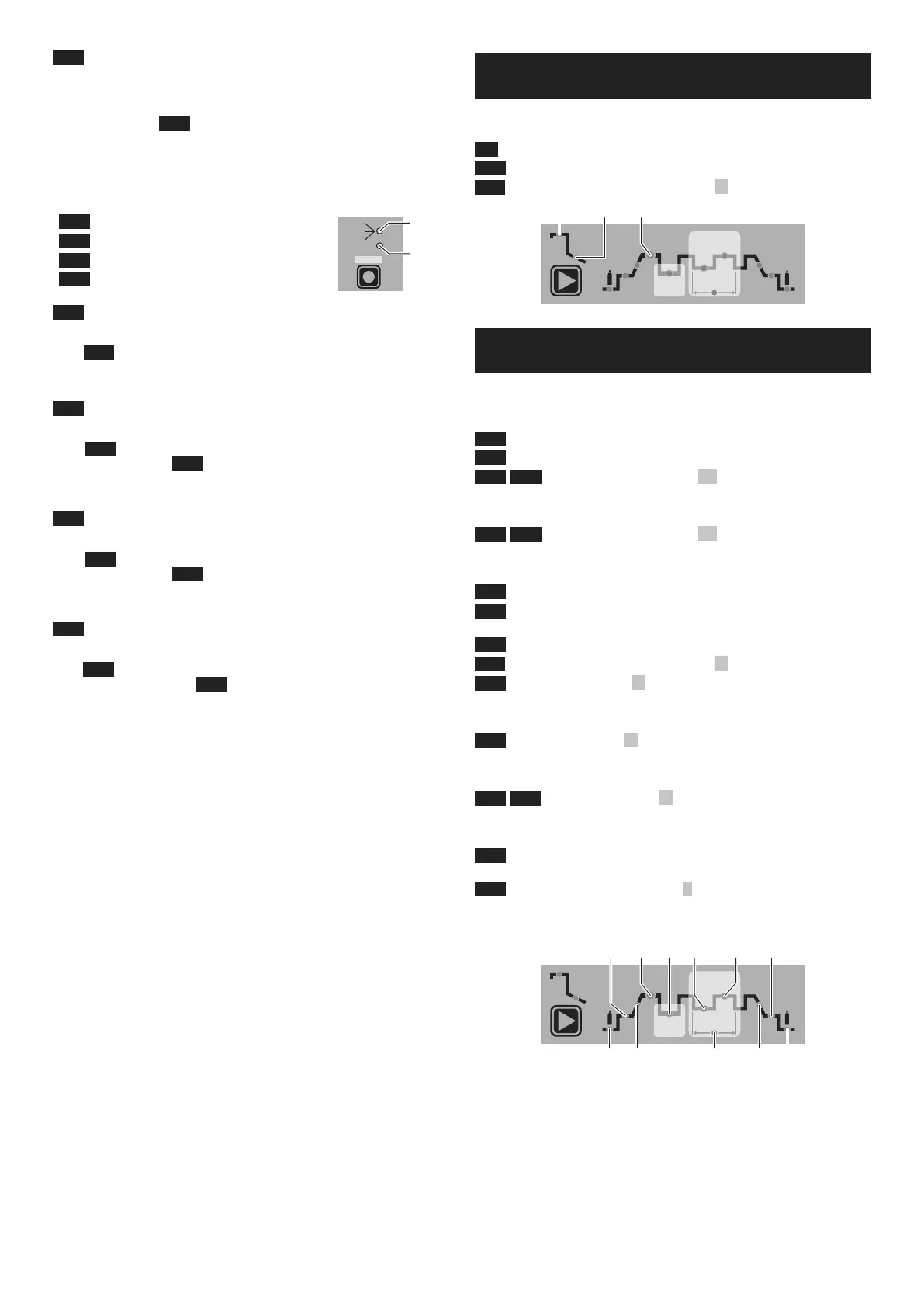

4
L29 FREQUENCY of the AC welding current
The high frequency makes it possible to weld minor thicknesses
with excellent results, while the low frequency is ideal for welding
average thicknesses, or where edge preparation is poor.
WARNING: LED L29 switched on and flashing.
■ PULSE
When using one of the 3 TIG welding processes, it makes it pos-
sible to set one of the 4 pulsation modes available on the welding
machine, using the relevant button:
L25 SYN PULSE
L26 SLOW PULSE
L26 FAST PULSE
L26 ULTRA FAST PULSE
ON
FAST
ULTRA
FAST
SLOW
SYN
PULSE
L25 Synergic pulsations (SYN PULSE)
WARNING:
LED L25 switched on and steady.
This can only be programmed when the TIG DC with HF ignition
or TIG DC with “Lift” type ignition welding processes are used.
L26 Slow pulsations (SLOW PULSE)
WARNING:
LED L26 on and flashing slowly (hold the PULSATION button
down until the LED L26 flashes slowly).
This can only be programmed when the 3 TIG welding process-
es are used.
L26 Fast pulsations (FAST PULSE)
WARNING:
LED L26 on and flashing quickly (hold the PULSATION button
down until the LED L26 flashes quickly).
This can only be programmed when the TIG DC with HF ignition
or TIG DC with “Lift” type ignition welding processes are used.
L26 Ultra fast pulsations (ULTRA FAST PULSE)
WARNING:
LED L26 on and flashing very quickly (hold the PULSATION but-
ton down until the LED L26 flashes very quickly).
Attivabile solo con i processi di saldatura TIG DC con innesco HF
o TIG DC con innesco tipo “Lift”.
WARNING: The operator can decide to TIG weld without using
any pulsation mode. If this is the case, the 2 LEDs are switched off.
■ WELDING PARAMETERS
Each time the button is pushed, the welding machine selects the
next function according to the machine configuration, the welding
process, the welding mode, etc...
1A - STANDARD CONFIGURATION
Electrode welding (MMA)
When using the electrode welding process, this allows you to select
the following welding parameters, based on which LED is flashing:
L9 HOT START
L10 ARC FORCE
L11 PRINCIPAL welding CURRENT I
1
HOT
START
ARC
FORCE
I2
PULSE
CYCLE
f
I
1
Ip
Ib
1B - STANDARD CONFIGURATION
TIG welding
When one of the 3 TIG welding processes available on the welding
machine is activated, this allows you to select the following weld-
ing parameters, based on which LED is flashing:
L12 PRE-GAS duration
L13 SLOPE UP duration
L18 - L21 BASE current duration T
b
WARNING: This can only be programmed when SLOW pulsa-
tion is activated.
L19 - L21 PEAK current duration Tp
WARNING: This can only be programmed when SLOW pulsa-
tion is activated.
L14 SLOPE DOWN duration
L15 POST-GAS duration
L16 INITIAL welding CURRENT
L11 PRINCIPAL welding CURRENT I
1
L17 CYCLE CURRENT I2
WARNING: This can only be programmed when the CYCLE weld-
ing mode is active.
L18 BASE CURRENT Ib
WARNING: This can only be programmed when at lease one pul-
sation mode is activated.
L19 - L11 PEAK CURRENT Ip
WARNING: This can only be programmed when at least one pul-
sation mode is activated.
L20 FINAL welding CURRENT
L21 PULSATION FREQUENCY f
WARNING: NOT programmable when SLOW pulsation mode is
active.
HOT
START
ARC
FORCE
I2
PULSE
CYCLE
f
I
1
Ip
Ib
L16 L11 L17 L18 L19 L20
L15L14L21L13L12
