11
It is a numerical increase at UP key. One figure falls by DOWN key.
If DOWN is pushed again after setting up the first figure,
since all figures will be displayed, check the set point.
When the setting is corrected, it sets it from the fourth digit again
pushing DOWN key. If a setup of a maximum value is completed,
the PRG key will be pressed again.
* When the PRG key is pressed while setting up, move to the next setting.

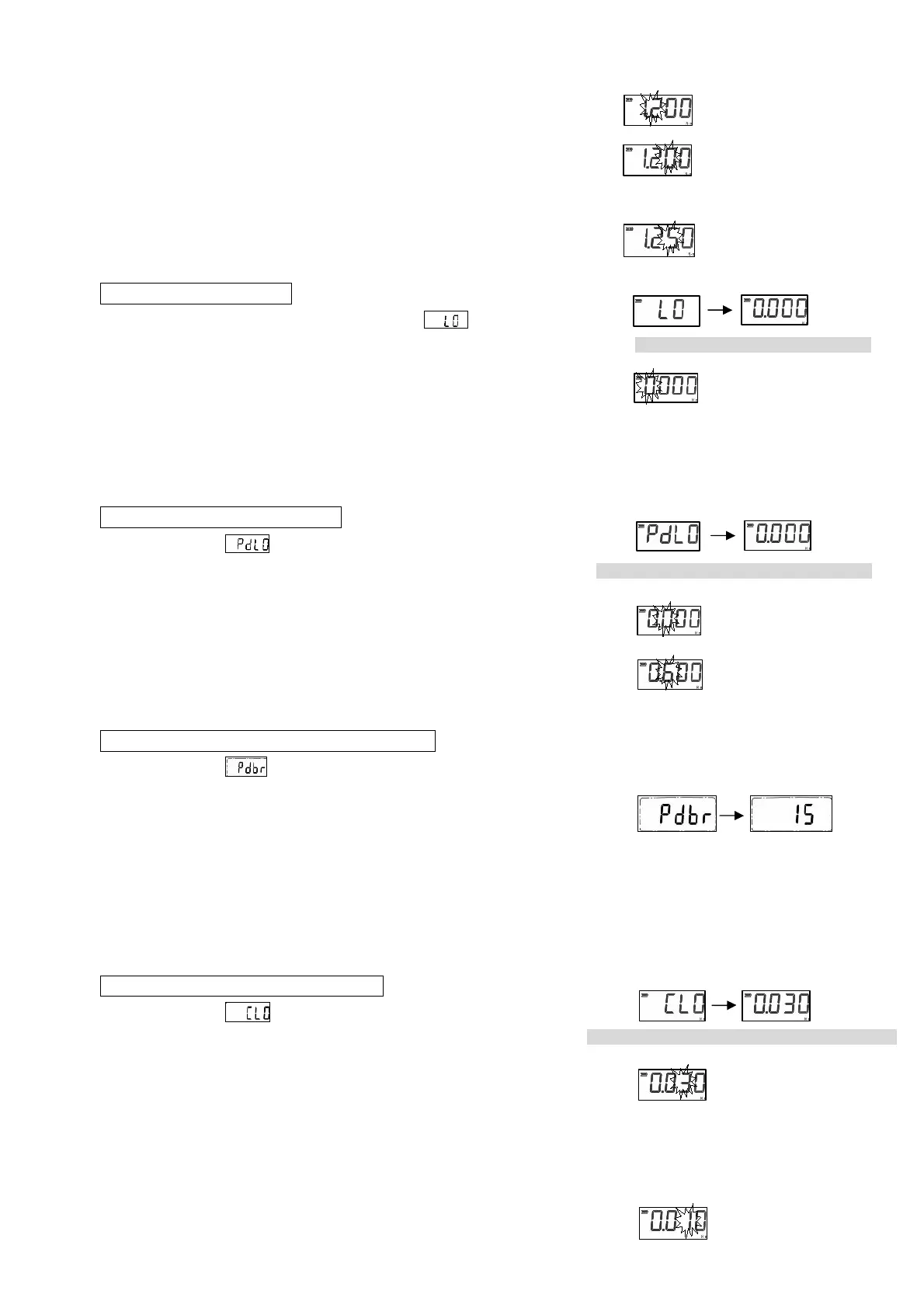

3. Setup of Minimum Value
A minimum value is displayed after displaying
The minimum value of torque measurement is set up by UP key
and DOWN key like a maximum value.
The a minimum value cannot set a value bigger than
a maximum limit value.
If a setup is completed, the PRG key will be pressed again.
4. Setup of Peak-Down Start Value
After displaying , a peak-down start value is displayed.
A peak-down start value is set up by UP key and DOWN key
like a maximum value.
( When it fell 15 digits ahead of this value, peak-down displays it.)
If a setup is completed, the PRG key will be pressed again.
5.Setup of Peak Down Judging Numerical Value
After displaying , The judgment numerical value of a peak down
is displayed. The downward width numerical value of the torque for
making a peak down judge is set up by the UP key or the DOWN key.
(A setup is [ the whole five ] possible between 5-30)
It decreases by an increase and DOWN by UP.
If a setup of a value is completed, the PRG key will be pressed again.
5. Setup of Real-time Output Start Value
After displaying , a real-time output start value is displayed.
A value is set up similarly.
When this value is set to 0, the inside of real-time output mode
continues outputting data.
The preservation to the memory of real-time data consists of 20 or
more digits.
When you save in memory, please set this value or more to 20.
If a setup is completed, the PRG key will be pressed again.
Push UP twice
The treble figures blink by "2.
Push DOWN
The second figures blink.
Push PRG
When a minimum value is set as 1.000
Push DOWN twice
The forth figure blinks.
Push PRG
When a peak down start value is set as 0.600
The treble figures blink by "6
PushUP 6 times
Push DOWN twice
The treble figures blink.
Push PRG
When a real-time output start value is set as 0.010
Push DOWN 3 times
The second figures blink
Push UP 8 times
The second figures blink by "1"
Push PRG
The second figures blink by "5."
PushUP 5 times
