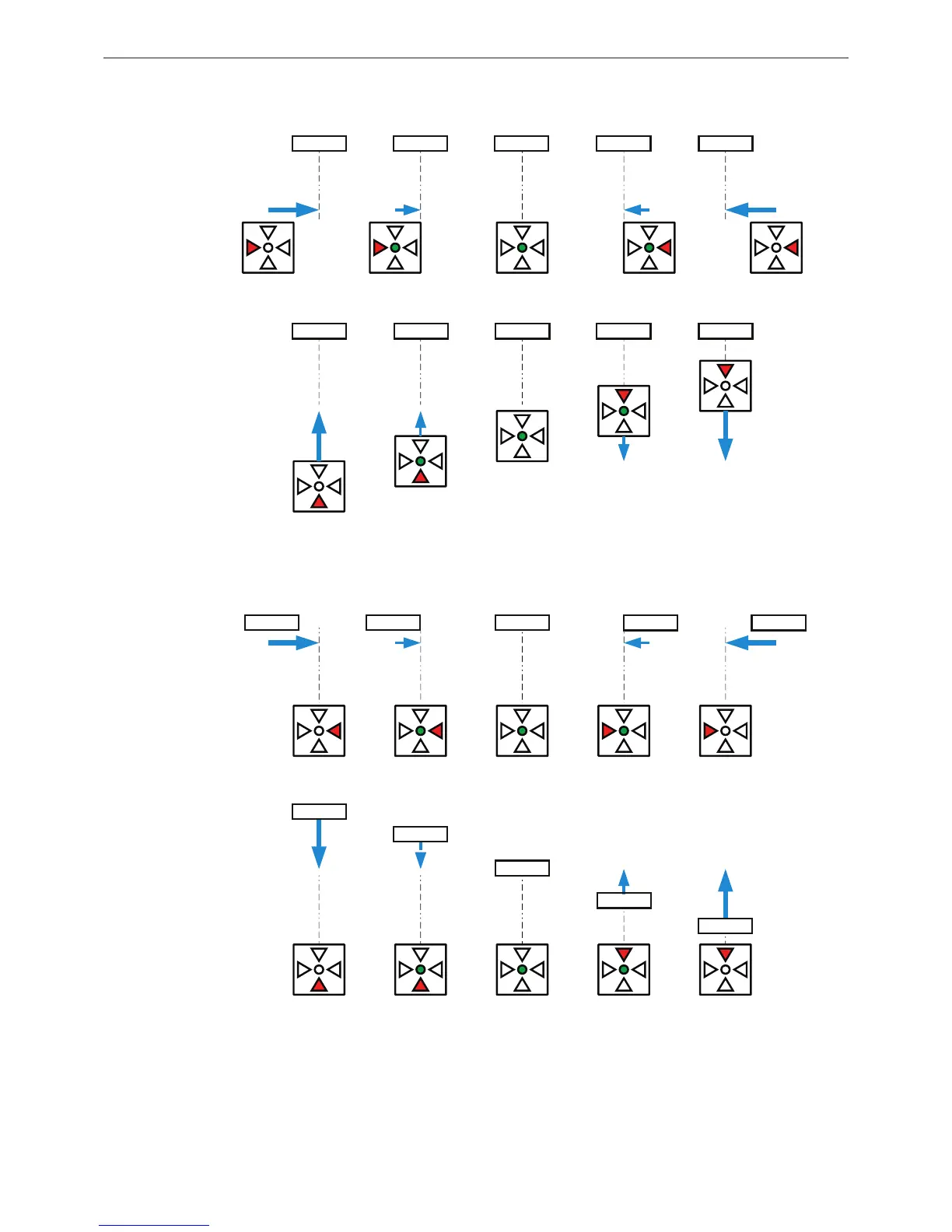

Figure 43: Alignment procedures: APS sensor to the code tape and vice versa (the arrow indicates the moving direction)
When the sensor must be aligned with the tape: Direction of sensor movement
Left / right alignment
Left / right alignment
Far / near alignment
Far / near alignment
When the tape must be aligned with the sensor: Direction of tape movement
Tape
Tape Tape Tape Tape Tape
Tape Tape Tape Tape
Tape
Tape
Tape
Tape
Tape
Tape Tape Tape
Tape Tape
