Installation and control elements
• CEDIMA
®
• Technical Documentation • All rights reserved as per ISO 16016 • Subject to modications due to progressive development •
4.5 Mounting the diamond saw blade
on the CF-2116 D
4.5.1 General notes
on mounting the saw blade
DANGER!
Danger of injury! Shut down the blade
drive motor. Make sure that the joint cutter
does not start unintentionally or might roll away.
All set-up works must only be carried out when the
machine stands still and the blade drive motor is
switched off.
Secure the machine against unintentional rolling away
by moving the clutch lever to position “Engaged” (feed
switched off) (section 4.3.3).
DANGER!
Danger of injury! It is not allowed to
operate the joint cutter without blade
guard.
ATTENTION!
Transporting the machine with freely
rotating saw blade beyond the place of
operation (working area) is prohibited.
Dismount the diamond saw blade.
4.5.2 Selecting the suitable saw blade
The speed of the cutting shaft has been designed in
such a way to provide optimum conditions for cutting
with diamond saw blades.
ATTENTION!
Observe the max. admissible saw blade
diameter!
The joint cutter CF-2116 D standard has been designed
for saw blades of up to 800 mm diameter. The joint
cutter CF-2116 D-FB (green concrete) has been
designed for saw blades of up to 400 mm diameter
Larger diameter must not be operated with this joint
cutter.
ATTENTION!
Observe the diameter of the saw blade
receptacle and the mounting width!
The joint cutter CF-2116 D is equipped with a saw
blade receptacle of 25.4 mm and a max. saw blade
mounting width of 20 mm (refer to section 2.1).
If the bore hole of the saw blade to be mounted is
larger use a suitable reducer ring.
When mounting several saw blades us washers.
Select the correct type of saw blade according to the
material to be cut and the required cutting depth (as per
section 1.4). Detailed information on the correct type of
saw blade, reducer rings and washer can be obtained
from the CEDIMA
®
customer service.
No warranty in case of improper use!
CEDIMA
®
will refuse any warranty in case of improper
use of saw blades.
Complaints on saw blades can only be accepted if
there is a remaining diamond segments’ height of
20 %.
4.5.3 Mounting/dismounting the
saw blade
It is not necessary to remove the blade guard for
mounting/dismounting the saw blade.
Saw blade mounting is identical for right or left side
cutting.
Mount/dismount the diamond saw blade as follows:
1. Raise the cutting shaft (blade guard) as far as pos-
sible (section 4.3.2, key switch in position 2 and sec-
tion 4.3.1).
2. Loosen the front and rear clamping screws at the
blade guard ap and sway the blade guard ap up-
wards (g. 4.17 and 4.18).
3. Loosen the two clamping screws and sway the pro-
tective lid upwards (g. 4.17 and 4.18).

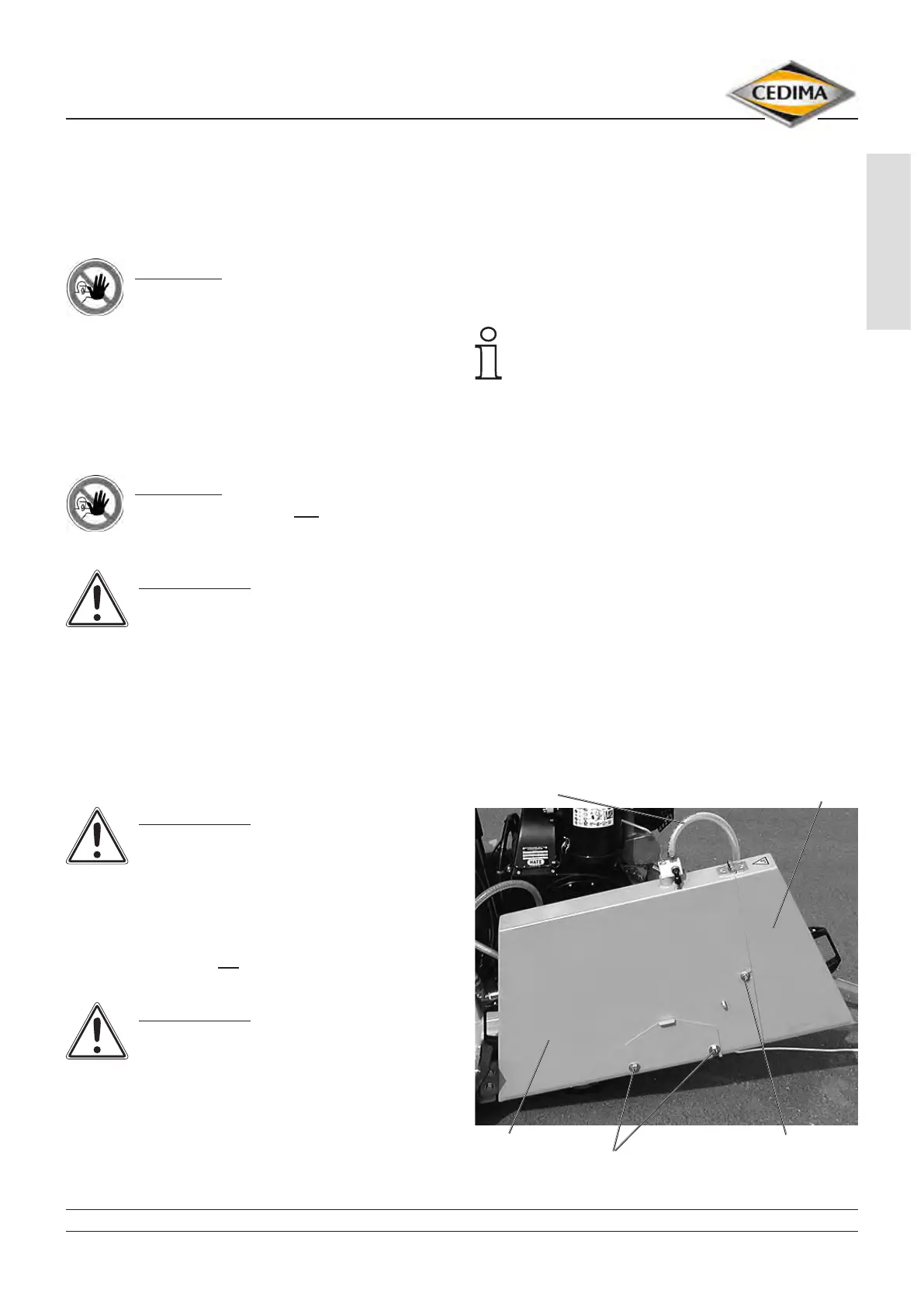

CF-2116 D blade guard (mounted right) Fig. 4.17
water supply blade guard ap
protective lid front clamping screw
clamping screws
