ENGLISH
26
Installation and control elements
• CEDIMA
®
• Technical Documentation • All rights reserved as per ISO 16016 • Subject to modications due to progressive development •

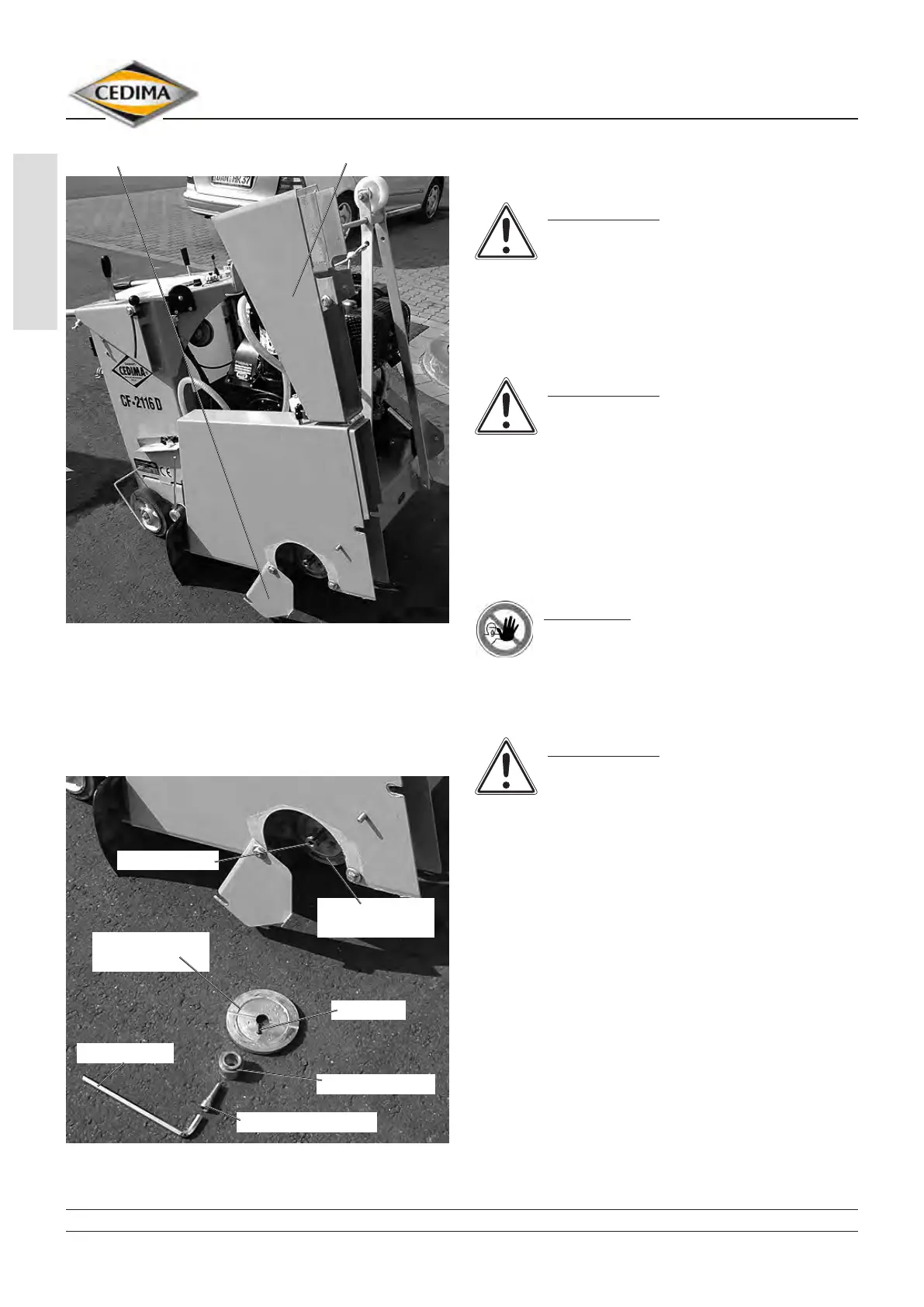

protective lid blade guard ap
CF-2116 D blade guard (mounted right), blade guard ap opened
and protective lid swayed open Fig. 4.18
4. Loosen and remove the cutting shaft screw with the
supplied Allen key (left-hand thread) and remove the
clamping ange and the blade receiving ange from
the cutting shaft (blade mounting ange, g. 4.19).
CF-2116 D dismounted blade receiving ange Fig. 4.19
cutting shaft
blade receiving
ange
Allen screw
drive pin
blade mounting
ange
clamping ange
cutting shaft screw
5. An already mounted saw blade should be removed
from the cutting shaft without being canted.
ATTENTION!
When handling diamond saw blades wear
personal safety equipment.
Wear at least protective gloves and protective shoes.
6. Provide cleanliness of cutting shaft (thread) and
especially of blades anges. Remove any dirt with a
lint-free cloth.
ATTENTION!
Check the blade receptacle and the
diamond saw blade!
The mounting area of blade receptacle and diamond
saw blade must be free of dirt or residues in order to
mount the blade properly.
7. Check the diamond saw blade and, observing the
rotational sense, place it onto the blade mounting
ange of the cutting shaft. The blade has to rotate in
the same direction as the joint cutter’s feed, g. 4.20.
DANGER!
Danger of injury! Check the saw blade’s
rotational sense, its smooth running and if
there are any damages.
Any damages/missing diamond segments as well as
untrue running exclude the use of the saw blade.
ATTENTION!
The diamond saw blade’s cutting
direction has to comply with the cutting
shaft’s rotational sense!
The diamond saw blade rotates in the same direction
as the joint cutter’s cutting direction.
The cutting shaft’s rotational sense is marked by
an arrow on the blade guard (g. 4.20). There is a
directional arrow on the saw blade as well (g. 4.20).
Both arrows have to point in the same direction!
