ENGLISH
32
Installation and control elements
• CEDIMA
®
• Technical Documentation • All rights reserved as per ISO 16016 • Subject to modications due to progressive development •
ATTENTION!
Avoid frost damages!
In case of frost or temperatures around the
freezing point the cooling water system and the water
tank have absolutely to be drained after having nished
cutting or before longer periods of non-service. Place
the joint cutter in a frost-free place and/or cover it to
avoid frost damages.
4.7.1 Connecting water supply
(pumped water)
The electrical water pump (with ON and OFF switch,
g. 4.9) delivers the cooling and rinsing water out of the
installed water tank via the blade guard to the diamond
saw blade.
ATTENTION!
Do not operate the water pump without
cooling water, as this will destroy the
pump’s impeller.
Prepare the operation of the CF-2116 D with pumped
water as follows:
1. Close the water tank ball valve and disconnect the
hose (with Gardena coupling) from the ball valve (g.
4.36).

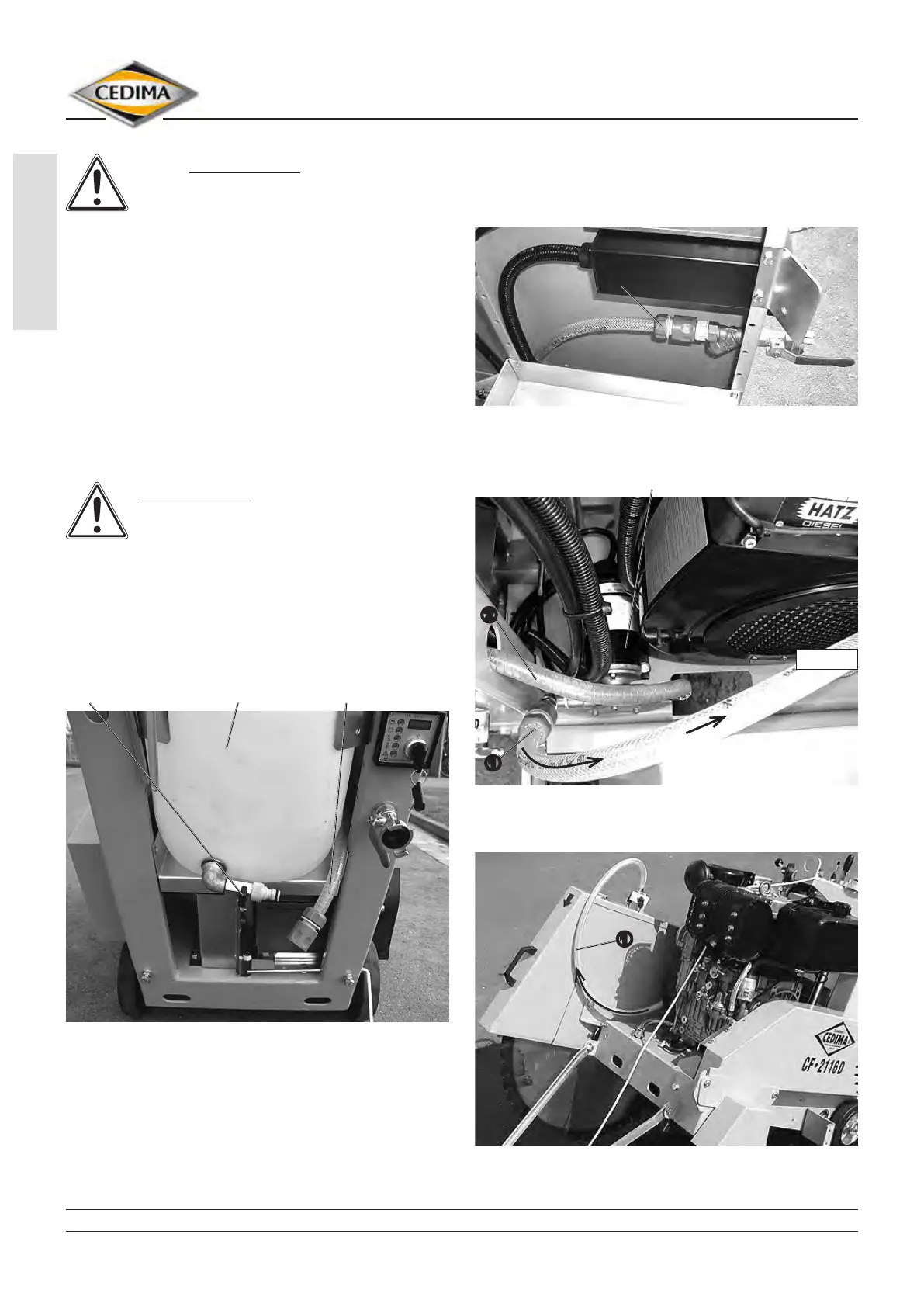

CF-2116 D, rear side, water tank Fig. 4.36
ball valve water tank hose disconnected
2. Remove the empty water tank vertically from the joint
cutter.
3. Disconnect the blade guard hose
① (with Gardena
coupling) from the connection for water supplied
under pressure (g. 4.37).
Pull the hose forward to the water pump and connect
the blade guard hose
① with the connection at the
water pump (g. 4.38).
CF-2116 D, water tank removed, disconnecting blade guard hose
① from connection for water supplied under pressure Fig. 4.37
➊
CF-2116 D, blade guard hose ① connected with water pump,
siphon hose ② led to water tank Fig. 4.38
➊
➋
water pump
Fig. 4.39
➊
CF-2116 D, blade guard hose ① at blade guard (saw blade)
mounted right Fig. 4.39
T
