Cedima CF-2116 D - Adjusting Bowden Cable of Motor Speed Lever

ENGLISH
49
Maintenance and care
• CEDIMA
®
• Technical Documentation • All rights reserved as per ISO 16016 • Subject to modications due to progressive development •

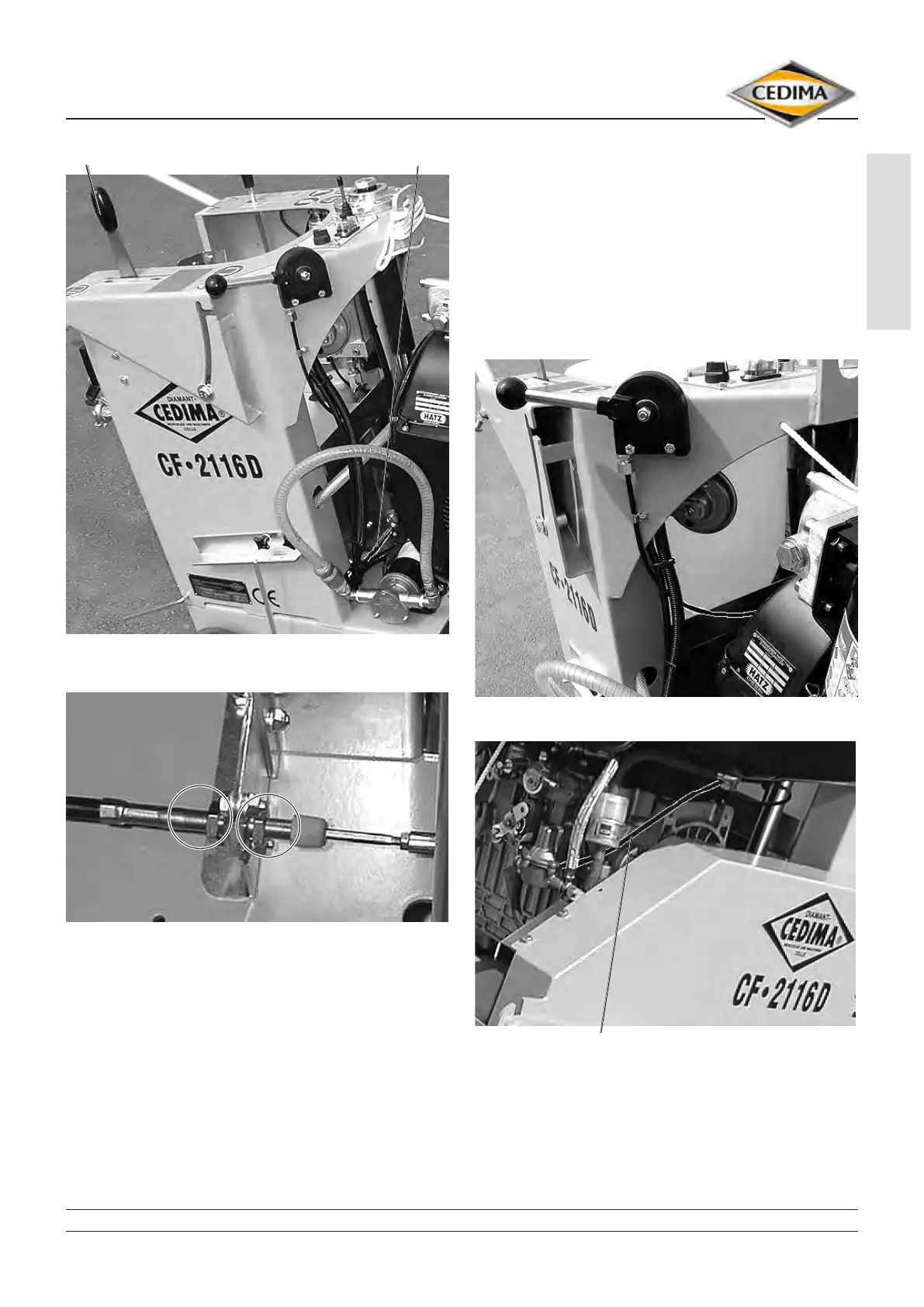

feed lever feed Bowden cable
CF-2116 D, right front part of superstructure box (water tank
removed) Fig. 6.21
CF-2116 D feed Bowden cable, counter and adjusting nuts at
feed gear housing Fig. 6.22
Adjust the Bowden cable of the feed lever as follows:
1. When the joint cutter moves forward or backward
(feed lever in neutral position), loosen the counter
and adjusting nuts on the right and left side of the
Bowden cable (feed gear housing) (gs. 6.21 and
6.22).
2. Turn the adjusting nut until the feed lever has moved
so far towards the “neutral” direction that the joint cut-
ter has come to a standstill.
3. Re-tighten the counter nut at the Bowden cable (g.
6.22).
6.6.12 Adjusting Bowden cable
of motor speed lever
The Bowden cable of the speed lever transmits the
value of the motor speed adjusting lever at the control
panel to the joint cutter’s motor (g. 4.8, 4.12, 6.21,
6.23, 6.24 and 6.25).
CF-2116 D, Bowden cable of motor speed lever Fig. 6.23
CF-2116 D, Bowden cable of motor speed lever Fig. 6.24
It is necessary to adjust the Bowden cable of the motor
speed lever when the motor speed (0/OFF, idle, up to
full load) is no longer in relation to the value that has
been adjusted by the motor speed lever.
