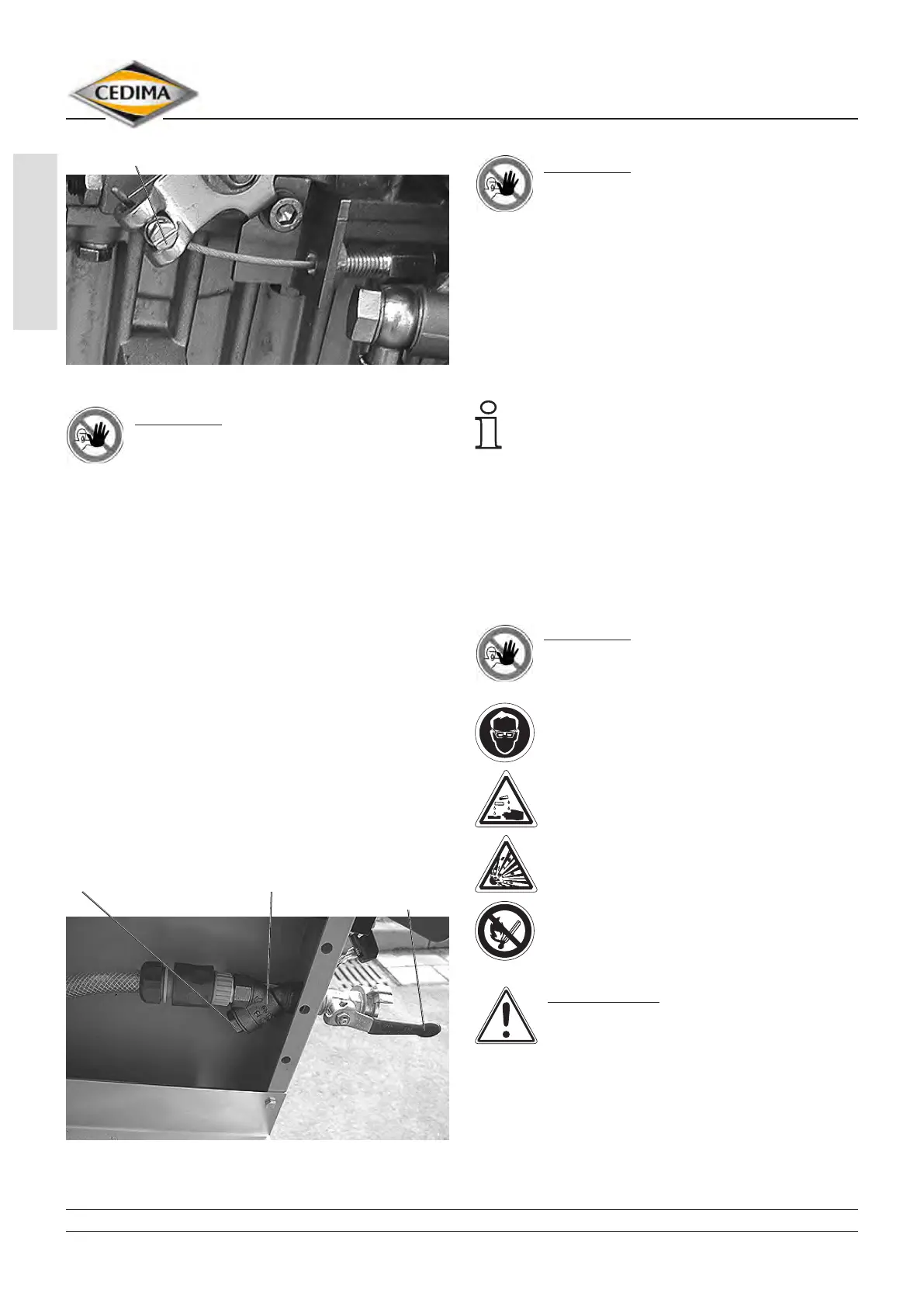

Cedima CF-2116 D - Cleaning Filter (Dirt Collector) of Water Inflow; Servicing;Changing the Battery

ENGLISH
50
Maintenance and care
• CEDIMA
®
• Technical Documentation • All rights reserved as per ISO 16016 • Subject to modications due to progressive development •
clamping screw
CF-2116 D, speed lever with Bowden cable at motor Fig. 6.25
DANGER!
Danger of injury by the joint cutter’s
motor!
Observe the corresponding safety instructions for the
joint cutter’s motor (chapter 3, 6 and motor operating
manual).
Adjust the Bowden cable at the motor speed adjust-
ing lever and at the clamping screw at the motor’s end
(gs. 6.23, 6.24 and 6.25).
Re-tighten the screw(s) at the Bowden cable of the mo-
tor speed adjusting lever.
6.6.13 Cleaning lter (dirt collector) of
water inow
The water inow lter protects the water supply to the
diamond saw blade from being blocked (section 4.7.2).
Clean the water inow lter whenever it is necessary
(maintenance table 6.5).
The water inow lter is located in the right rear part of
the CF-2116 D’s superstructure box (gs. 4.8, 4.43 and
6.26).
lid dirt collector ball valve with
GEKA-coupling
CF-2116 D, water inow lter (dirt collector), water tank removed
Fig. 6.26
DANGER!
Maintenance works must only be carried
out when the joint cutter has been shut
down.
Clean the water inow lter as follows:
1. Remove the water tank from its console.
2. Loosen and open the lid of the water inow lter (gs.
4.43 and 6.26).
3. Remove the strainer and rinse it with water.
4. Place the trainer back in the water inow lter and
tighten the lid.
Observe the strainer’s position/direction.
5. Put the water tank back on its console.
6.6.14 Servicing/changing the battery
The motor starter battery is installed in the right lower
part of the CF-2116 D’s superstructure box (gs. 4.8
and 6.27). Maintain and change the battery as per
maintenance table 6.5.
DANGER!
Risk of injury, only work on the battery
when the engine of the joint cutter is
switched off!
Wear eye protection!
Warning of acid elements! Wear
protective clothing!
Warning! Danger, risk of explosive
elements! (when charging the battery,
oxyhydrogen gas is produced)!
Fire, open ames and smoking are
forbidden!
ATTENTION!
Observe the battery documentation!
Read and observe the documentation
delivered with the battery!
