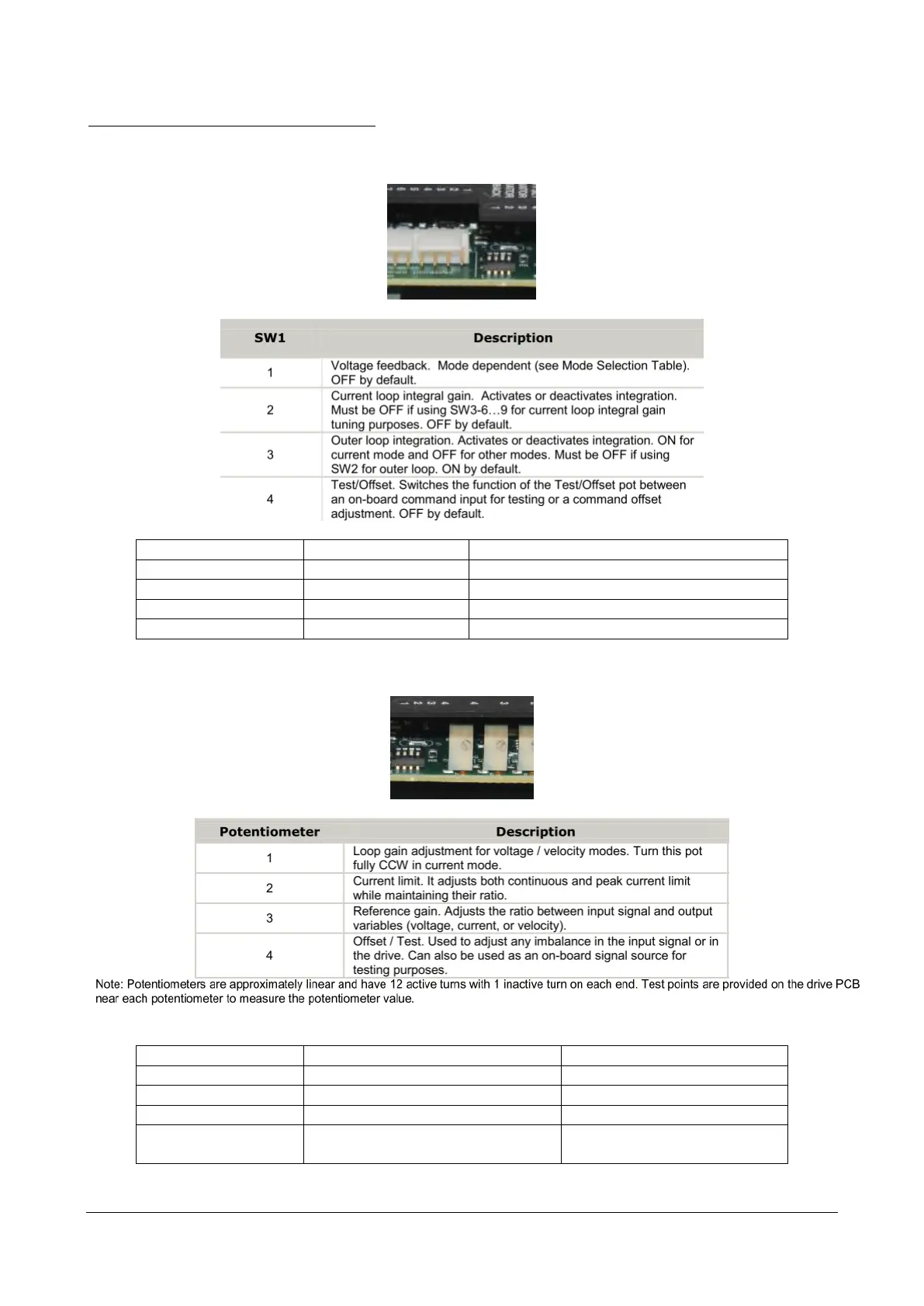

Regulation of the AMC 12A8 motor controller
1. Set the SW1 Dip Switches as folllowing:
Dip Switch / Pin
ON/OFF
Function
SW1 - 1
ON
VOLTAGE FEEDBACK
SW1 - 2
OFF
CURRENT LOOP ACTIVE
SW1 – 3
OFF
OUTER LOOP ACTIVE
SW1 – 4
OFF
OFFSET
2. Set the potentiometers as folllowing:
Potentiometer
Setting
Function
1
COMPLETELY COUNTER-CLOCKWISE
LOOP GAIN
2
COMPLETELY CLOCKWISE
CURRENT LIMIT
3
COMPLETELY COUNTER-CLOCKWISE
REFERENCE GAIN
4
COMPLETELY COUNTER-CLOCKWISE +
6 ROTATIONS CLOCKWISE
OFFSET / TEST
