13. Ethernet port (Connect to
network for automatic updates
and for uploading data to a
network hosted PC)
14. Mini-USB Port (Connect to a PC
via mini-USB cable, for
extraction to PC)

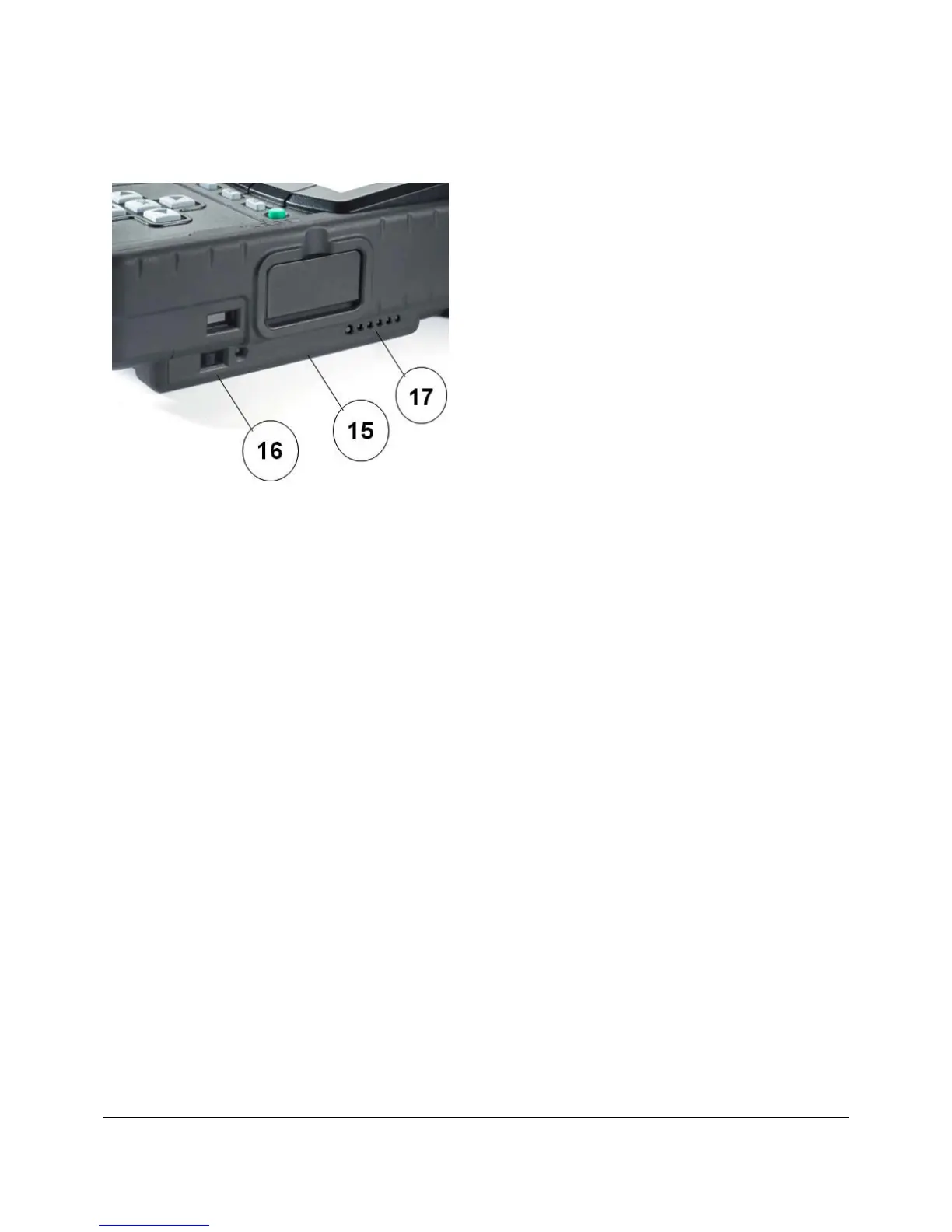

15. Battery kit and battery housing
protective covering
16. Charging switch.
17. Battery's state-of-charge –test
and LED indicators.
2.3. Ruggedized UFED Carrying Case
The UFED Ruggedized carrying case is designed specifically for field use
conditions.
To open the case, flip the two latches open.
NOTE: The case is air-tight sealed. When the case undergoes changes in
atmospheric pressure (ex. mountain areas, after airplane flights), the latches
may be ‘stuck’ closed. When this happens, you should release the vacuum
by unscrewing the vacuum release valve, located in the center of the case,
next to the handle.
