53
9. Inspect the IR lens for foreign debris and/or damage. If the IR lens is in proper position, it will reflect an image similar
to a mirror. If necessary, use a swab and alcohol to clean the IR lens, using caution not to scratch the IR lens.
Note: If the IR lens is in proper position, it will reflect an image similar to a mirror. If the IR lens appears to be damaged
(ie. scratched), contact CEM Service at 800-726-5551 or 704-821-7015 or email service@cem.com.

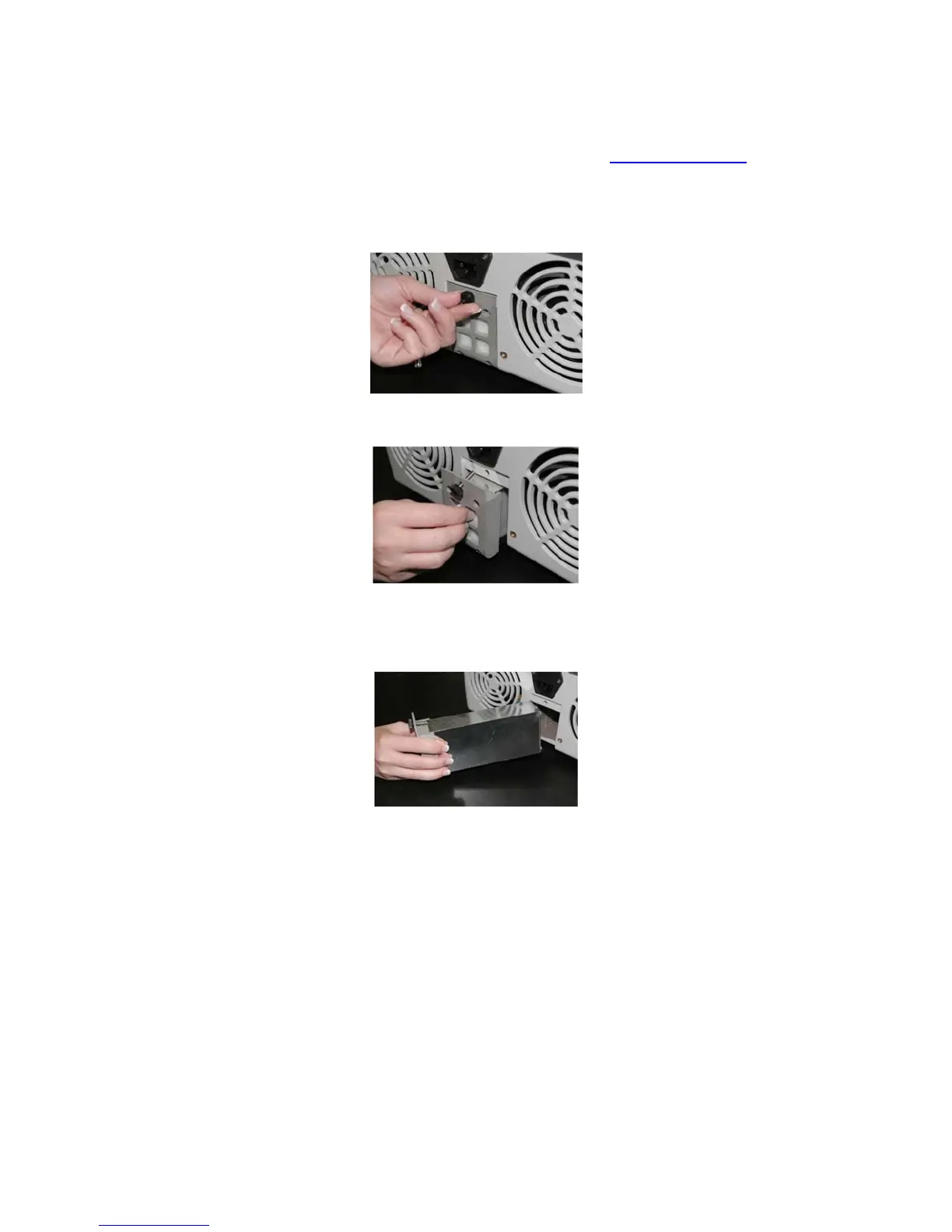

10. Clean the spill tray as outlined below.
a. Turn the instrument around so that the back of the system is visible and accessible.
b. Remove the screw securing the spill tray to the back of the instrument cover.
c. Carefully slide the spill tray out of the instrument.
d. Properly dispose of the contents of the tray.
e. Rinse the tray with an appropriate solvent and allow it to dry..
f. Install the spill tray and secure it to the instrument with the thumb screw.
11. Allow the cavity liner and spill cup to dry.
12. If the spill cup is not damaged, install the spill cup. If the spill cup needs to be replaced, contact CEM
Corporation.
Note: If the spill cup is replaced, the IR sensor will require calibration as outlined in this manual.
Note: If the spill cup is not seated properly, the attenuator cannot be installed properly.
13. Connect the instrument to the AC power source.
14. Turn the instrument on and continue routine operation.
