capacitance. Use the DC voltage function to confirm that
the capacitor is discharged.

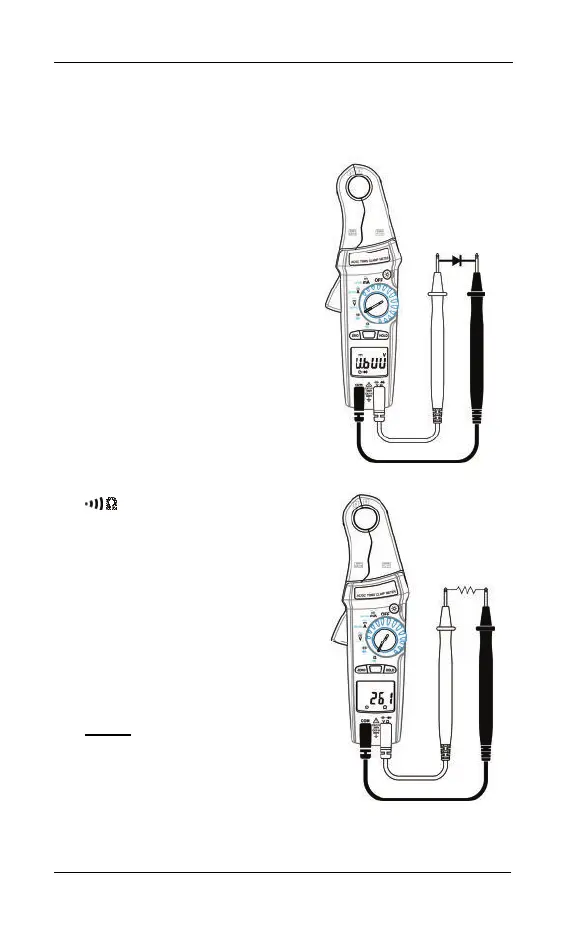

6-6 Diode test measurement
：
Switch the main function
selector to Diode range.
Connect red test lead to
“
” terminal and black one
to the "COM" terminal.
Measure the voltage by
touch the test lead tips to
the test circuit where the
value of diode is needed.
Read the result from the
LCD panel.
6-7 Resistance measurement
Switch the main function to
range.
Connect red test lead to
“
” terminal and black one
to the "COM" terminal.
Connect tip of the test leads
to the points where the
value of the resistance is
needed.
Read the result from the
LCD panel.
Note:
When taking resistance
value from a circuit system,
make sure the power is cut
off and all capacitors need
to be discharged.
