TRMS AC/DC Low Current Clamp Meter
13

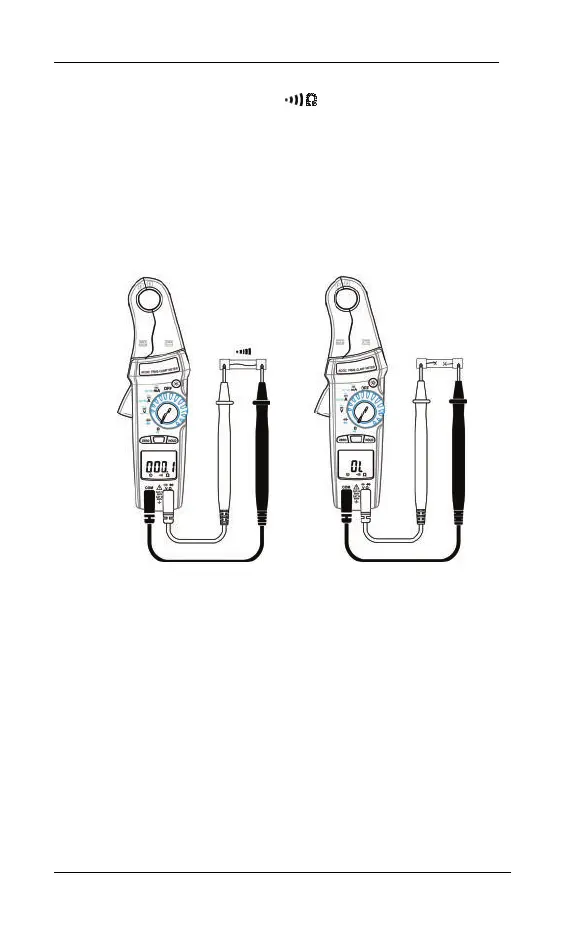

6-8 Continuity test with buzzer:
Switch the main function to range.
Connect red test lead to “
” terminal and black one to the
"COM" terminal.
Connect tip of the test leads to the points where the
conduction condition needed.
If the resistance is under 40Ω, the beeper will sound
continuously.
Short circuit Open circuit
