EAGLE CONTROLLER – INSTALLATION & COMMISSIONING INSTRUCTIONS
23 EN1Z-0970GE51 R0918
PANEL BUS CONNECTION
The EAGLE Controller features two RS485 interfaces to which Panel Bus modules can be connected: RS485-1 (consisting of
push-in terminals 24 [GND-1], 25, and 26) and/or RS485-2 (consisting of push-in terminals 29, 30, and 31 [GND-2]).
NOTE: GND-2 is internally connected with 24V-0 (terminal 1) and system GND (terminals 19+37)
Overview of Panel Bus I/O Modules
XS821-22
XSU821-22
X
S823
XSU823
X
S824-25
X
SU824-25
EAGLE
PANEL BUSPANEL BUS PANEL BUS PANEL BUS
PANEL BUS I/O
ELECTRONIC
MODULES
pluggable
ANALOG OUTPUT
pluggable
ANALOG INPUT
pluggable
BINARY INPUT
pluggable
FLOATING
OUTPUT
CLIOP821A
CLIOPR822A
CLIOP822A CLIOP823A
pluggable
RELAY OUTPUT
CLIOPR824A CLIOPR825A
CLIOP824A
MIXED I/Os
(with integrated electronic module)
123456789101112
B1 B2 B3 B4 B5 B6
B12
12
6
B11
11
5
B10
10
4
B9
9
3
B8
8
2
B7
7
1
DI
Binary Inputs
G1 G2
41 42
GND
A
nalog Output s
AI2 AI3 AI4
14 15 16
A
I1
17 18 19 20
13
Analog Inputs
AO5
AO1
AO6
AO2
AO7
AO3
AO8
AO4
21
25 26 27 28
22 23 24
DO
24V Relays
NO1NO2NO3NO4NO5NO6
CO1CO2CO3CO4CO5CO6
35
29 30 31 32 33 34
36 37 38 39 40
123456
Install. Instr.
MU1B-0473GE51
!
A
I5
A
I6
A
I7
A
I8
Honeywell
123456789101112
B1 B2 B3 B4 B5 B6
B12
12
6
B11
11
5
B10
10
4
B9
9
3
B8
8
2
B7
7
1
DI
Binary Inputs
G1 G2
41 42
GND
A
nalog Output s
AI2 AI3 AI4
14 15 16
A
I1
17 18 19 20
13
Analog Inputs
AO5
AO1
AO6
AO2
AO7
AO3
AO8
AO4
21
25 26 27 28
22 23 24
DO
24V Relays
NO1NO2NO3NO4NO5NO6
CO1CO2CO3CO4CO5CO6
35
29 30 31 32 33 34
36 37 38 39 40
123456
Install. Instr.
MU1B-0473GE51
!
A
I5
A
I6
A
I7
A
I8
Honeywell
CLIOP830A
CLIOP830A
CLIOP831A
CLIOP831A

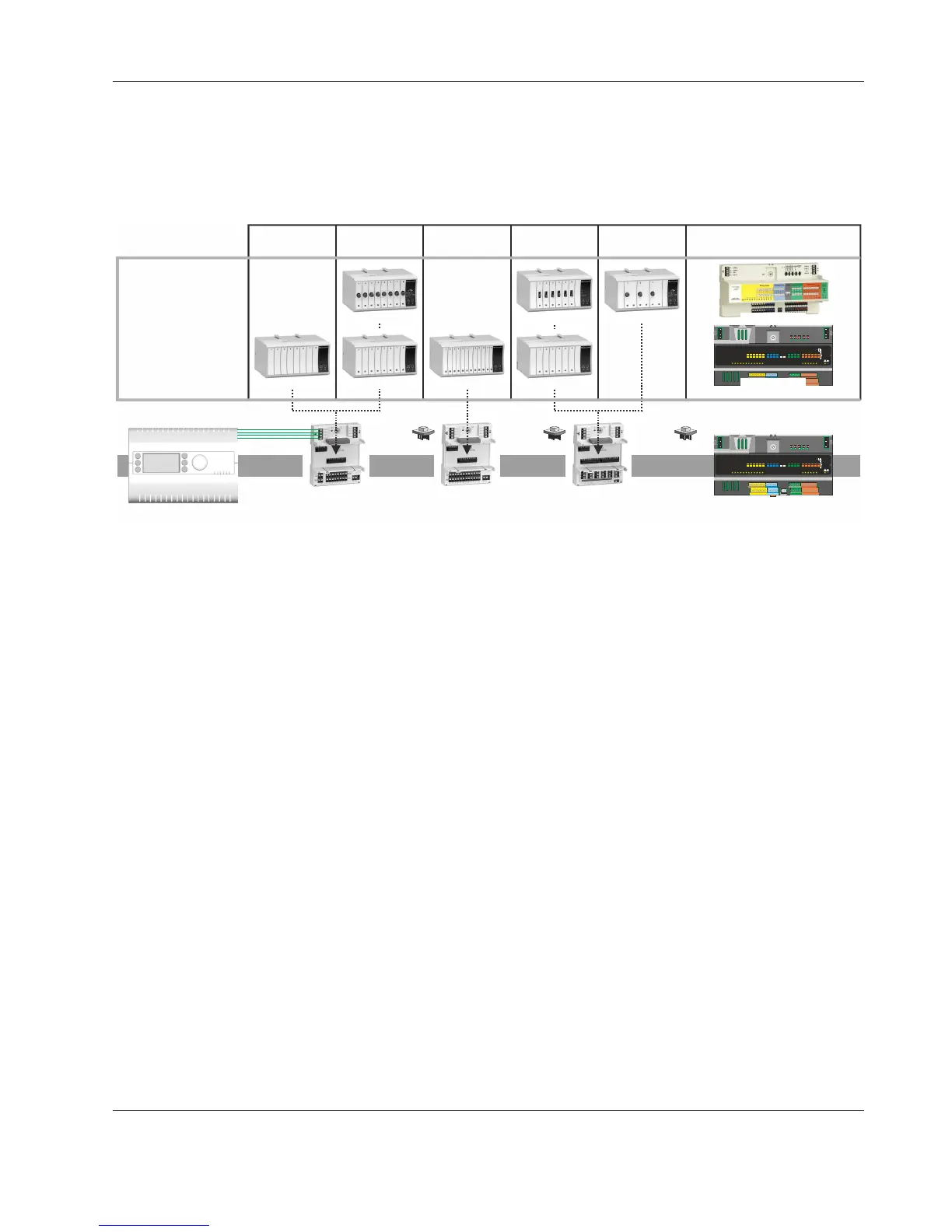

Fig. 34. Overview of Panel Bus I/O Modules
Panel Bus Considerations
 RS485-1 (isolated)
- Max. Panel Bus length:
o 40 meters. Any type of cabling and topology (including star and loop topology) possible. No additional end
termination permitted.
o 1200 meters (9.6 – 76.8 kbps) or 1000 meters (115.2 kbps) (see also section "RS485 Standard" on pg 9).
Mandatory twisted-pair or telephone cable and daisy chain topology. The EAGLE must be positioned at one end
of the Panel Bus, and an end termination (120 Ω) at the other end. Further, the three-position slide switch (see
Fig. 11 on pg. 8) must be set to "END."
 RS485-2 (non-isolated)
- Max. Panel Bus length:
o 40 meters. Any type of cabling and topology (including star and loop topology) possible. No additional end
termination permitted.
o 1200 meters (9.6 – 76.8 kbps) or 1000 meters (115.2 kbps) (see also section "RS485 Standard" on pg 9).
Mandatory twisted-pair or telephone cable and daisy chain topology. The EAGLE Controller must be positioned at
one end of the Panel Bus, and an end termination (120 Ω) at the other end.
- Must not extend beyond a single building or building floor
 Max. no. of Panel Bus I/O modules per RS485 interface
- Max. no. of Panel Bus I/O modules of a given model: 16
- Total max. no. of Panel Bus I/O modules: 64
 Max. no. of Panel Bus I/O modules per EAGLE
- Max. no. of Panel Bus I/O modules of a given model: 32
- Total max. no. of Panel Bus I/O modules: 128 (see NOTE below)
 Max. no. of hardware I/O points + NVs per EAGLE: 600
- Max. no. of mapped NVs allowed per EAGLE is thus 600 minus the no. of hardware I/O points.
