EAGLE CONTROLLER – INSTALLATION & COMMISSIONING INSTRUCTIONS
EN1Z-0970GE51 R0918 12
MOUNTING/DISMOUNTING
Before Installation
IMPORTANT
To allow the evaporation of any condensation resulting from low shipping / storage temperatures, keep the controller at
room temperature for at least 24 h before applying power.
US requirement, only: This device must be installed in a UL-listed enclosure offering adequate space to maintain the
segregation of line voltage field wiring and Class 2 field wiring.
In the case of vertical mounting on DIN rails, the EAGLE controller should be secured in place using a commercially-available
stopper.
See also the EAGLE Mounting Instructions (MU1Z-0970GE51).
Dimensions
110
215.5
45
BI1
BI2 BI3
BI4
GND
UI1
UI2 UI3
UI4 UI5 UI6
UI7
24
25 26
27
28 29 30 31 32 33 34 35 36 37 38 39 40
41 42
43
44
45 46
UI8
47
BO1
BO2 BO3
IN
IN4
BO4 BO5
IN5 IN6
BO6 BO7
IN7 IN8
BO8
GND
AO1
AO2 AO3
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
24V-0
24V~
1
AO4
23
GND1
485-1+
485-1-
GND2
485-2+
485-2-
UI9
UI10
2
52
49.5
57.5
55.5
RS232
RS485-1
END BIAS MID

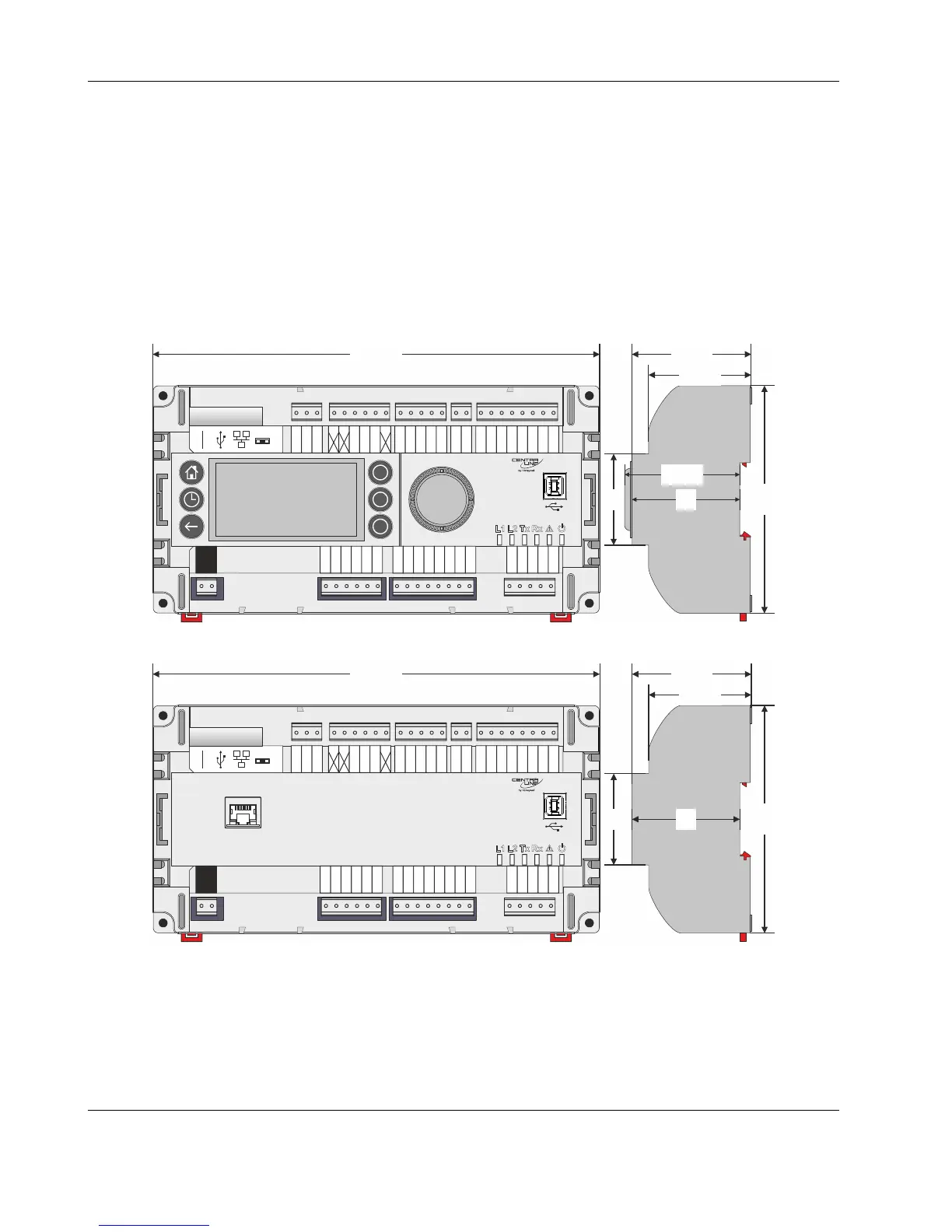

Fig. 18. EAGLE Controller with built-in HMI, dimensions (in mm)
110
215.5
5245
BI1
BI2
BI3 BI4
GND
UI1
UI2
UI3 UI4 UI5 UI6 UI7
24
25 26
27
28 29 30 31 32 33 34 35 36 37 38 39 40
41 42
43
44
45 46
UI8
47
BO1
BO2 BO3
IN
IN4
BO4
BO5
IN5 IN6
BO6 BO7
IN7 IN8
BO8
GND
AO1
AO2 AO3
5
6
789
10 11 12 13 14 15 16 17
18 19
20 21 22
24V-0
24V~
1
AO4
23
GND1
485-1+
485-1-
GND2
485-2+
485-2-
UI9
UI10
2
49.5
57.5
J1 J8
RS232 RS485-1
END BIAS MID
Fig. 19. EAGLE Controller with RJ45 socket for connection of CLEAHMI21 External HMI, dimensions (in mm)
