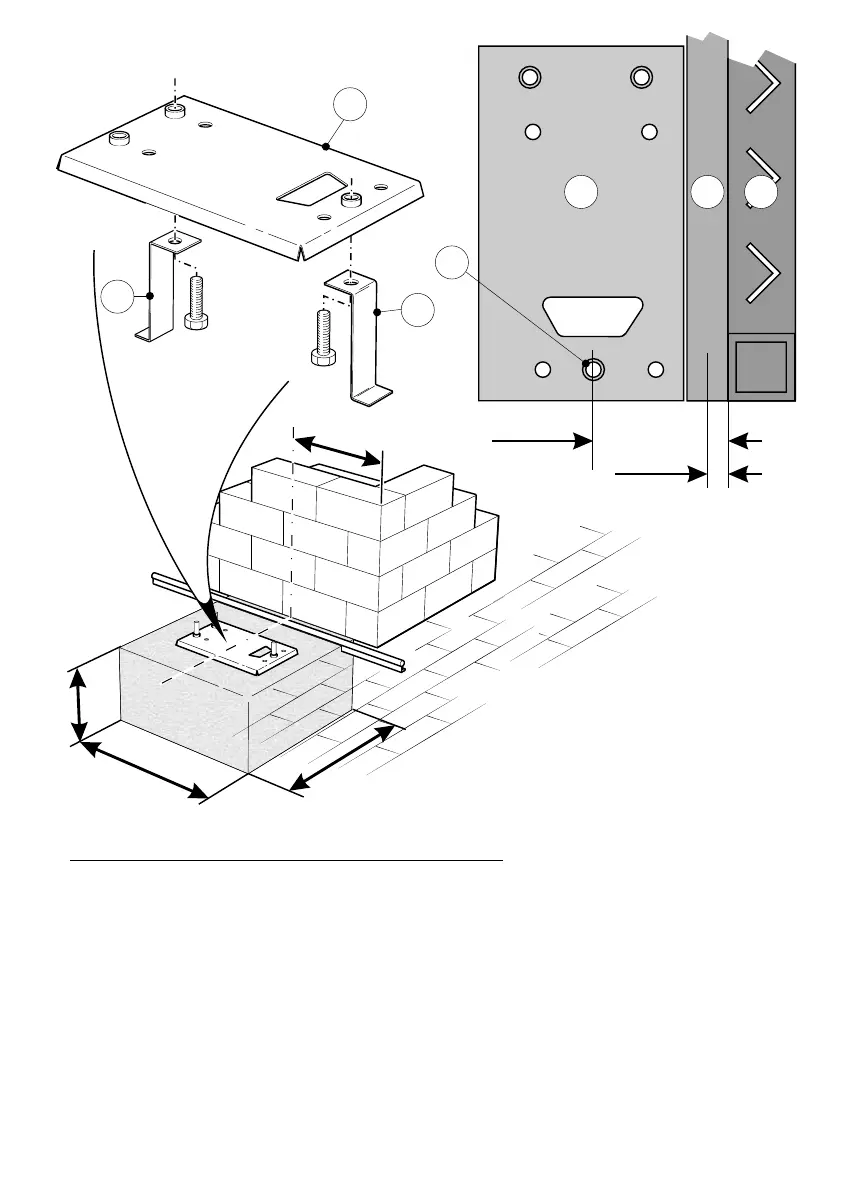

- Ensure motor does not protrude into drive-way install baseplate
with centre line 250mm off pillar centre.
- Fasten concrete anchors (44) to the baseplate (43) using the M10x45
bolts provided. Ensure that the bolts are well tightened.
- Position baseplate (43) with centre of single support stud (45) 105mm
from edge of gate (46). (This dimension assumes centre line of rack (47)
is 20mm from edge of gate).
8
105mm
20mm
4545
4343 4747 4646
L
C
4444
4343
m
25
0
m
4444
L
C
04
m
0 m
400mm
300mm
MECHANICAL MOUNTING DETAILS
Option 2 - Set into concrete plinth
