MOUNTING RACK CONTINUED
200 - 300mm
LEVEL
200mm
58
60
59
12

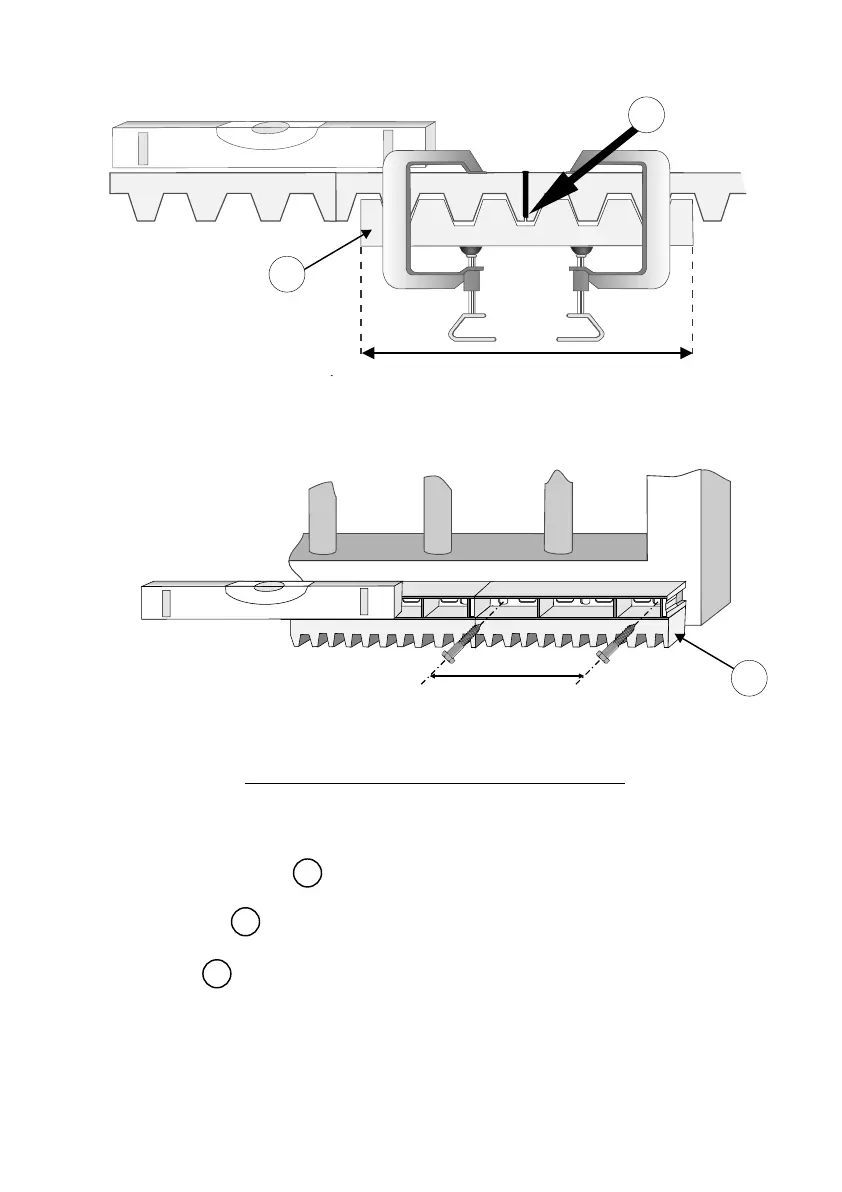

- A simple way of ensuring correct pitch spacing when joining steel rack is
to clamp a small offcut between the two pieces.
- Check that weld does not foul with meshing surfaces.
- If RAZ ™ rack is used, then start installing from the right hand side of
the gate working towards the LHS. Use fastening screws e.g. “TEK” screws
at least every 200mm.
58
59
60
