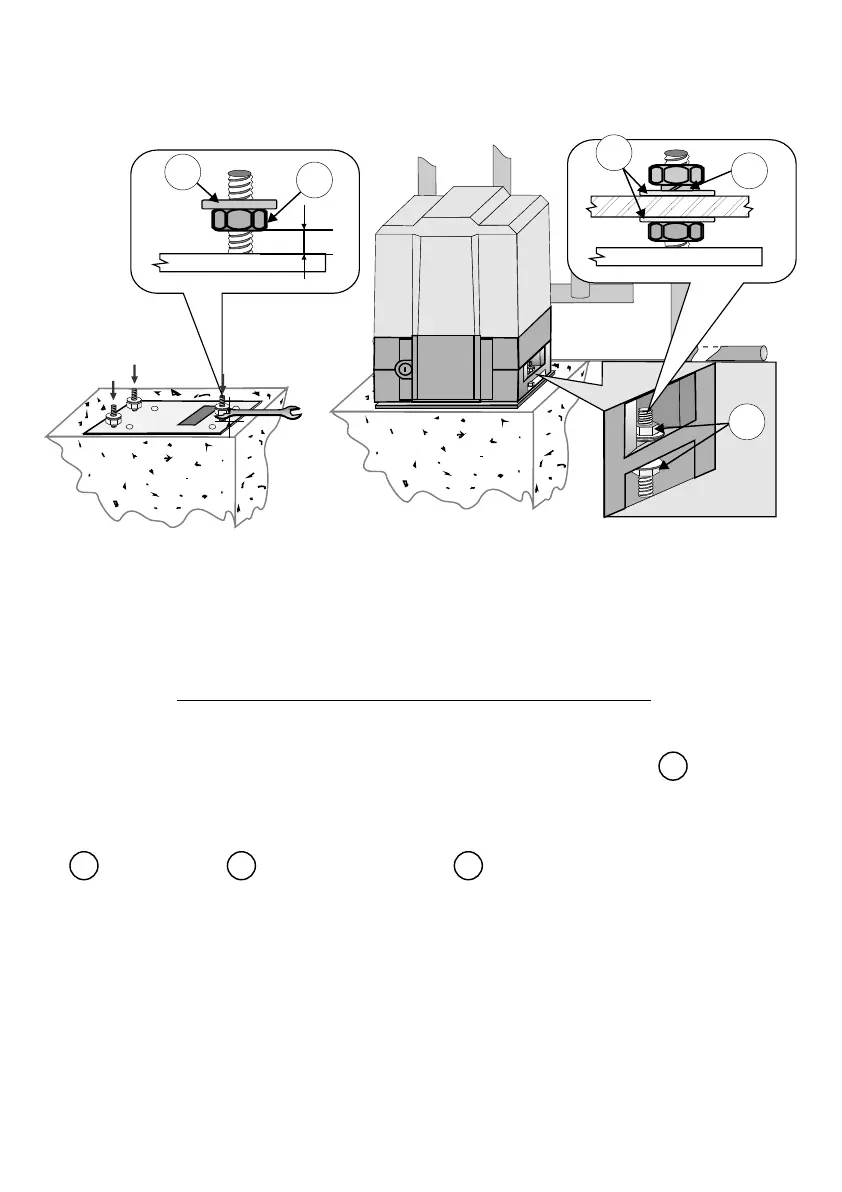

GEARBOX MOUNTING DOWN DETAILS
- Leave at least 7mm clearance between the lower gearbox nuts and
the baseplate to allow for later adjustment.
- Gearbox MUST be firmly located between top & bottom nuts and washers
as shown at . Use spring washer to lock top nut in place.
- Slide gearbox forwards or backwards to give ±8mm clearance between
front of pinion and edge of gate.
7
mm
53
10
52
54
51
52
54 51 53
54
