Centurion Vantage - Side Wall Limitation - Inward Opening

page 20 www.CentSys.com
SECTION 6 PREPARATION OF SITE
6.4. Side Wall Limitation - Inward Opening
Figure 7 shows the side wall limitations for an Inward opening gate. The operator
must be installed in accordance with these limitations. If the wall minimum cannot be
achieved, consider using an outward swing conguration.

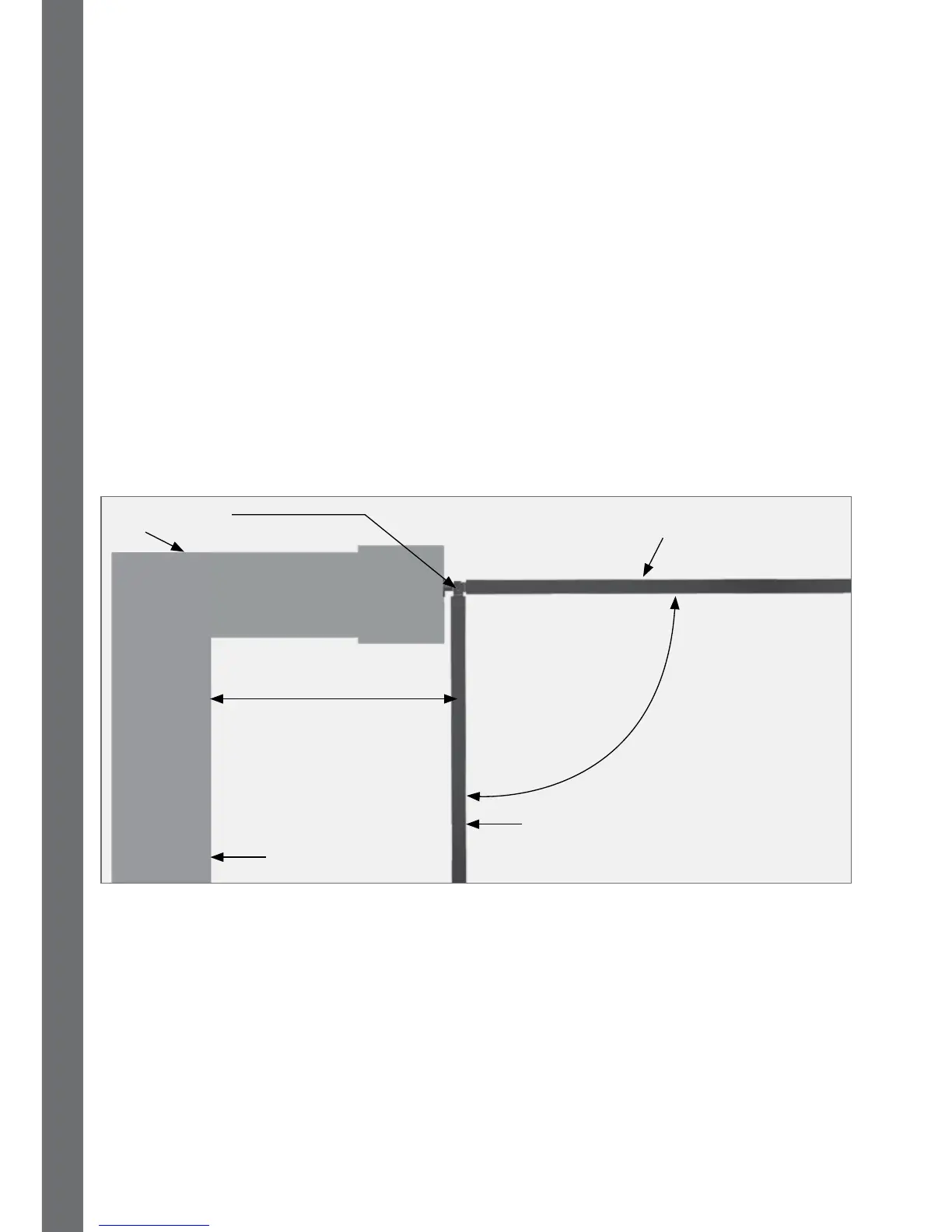

FIGURE 7. SIDE WALL LIMITATION FOR INWARD OPENING GATE
Wall minimum
must be greater than 200mm
Side wall
Wall
Gate in closed position
Gate in open position
Gate swing angle
Gate hinge point
6.3. Key Terms Used in this Section
6.3.1. Pillar maximum
The maximum allowable distance measured from the centre of the gate hinge to the edge
of the pillar.
6.3.2. Wall minimum
This value denotes the minimum amount of space needed to install the operator and is
measured from the side wall to the gate when the gate is in the open position.
