Ensure that the gate mass does not exceed the specications on
page 13.
10.1. Step 1
Depending on the gate opening angle determined in Section 6.2 refer to Figures 27 to 28
for the correct installation geometry.
In most cases it will be necessary to make up a suitable extension bracket on which to
mount the operator’s Wall Bracket.
10. Operator Installation - Outward Opening
Gates
SECTION 10 OPERATOR INSTALLATION - OUTWARD OPENING GATES

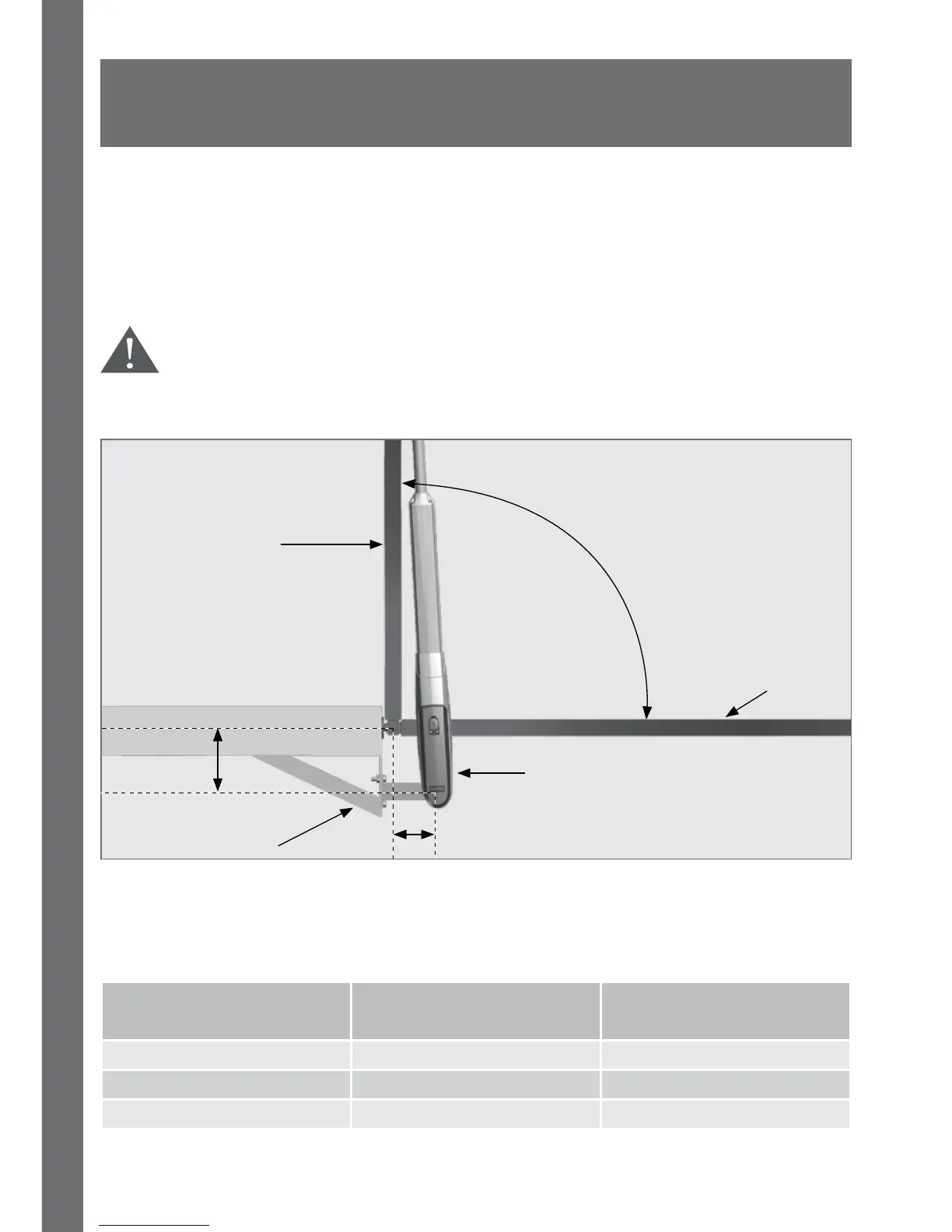

FIGURE 27. VANTAGE 400 OUTWARD OPENING GATE
Make up bracket to suit
A
B
Gate in closed
position
Gate in open position
VANTAGE
operator
Gate opening angle
VANTAGE 400 Outward Opening Gate:
VANTAGE 400 Outward Opening Geometry Tables:
Gate Opening Angle A B
90° 220mm 170mm
100° 200mm 160mm
110° 185mm 160mm
TABLE 16
