SECTION 6 PREPARATION OF SITE

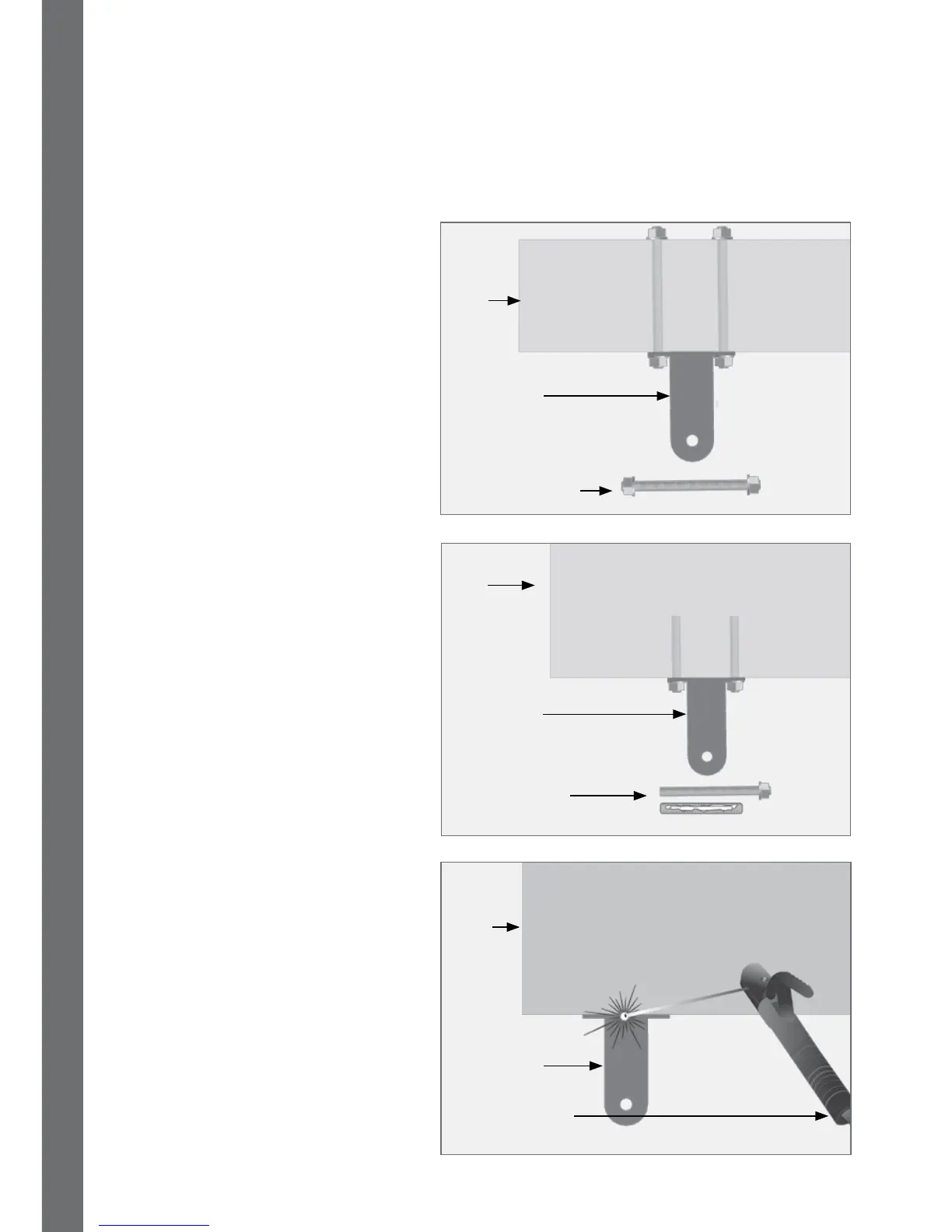

6.6. Wall Bracket Mounting Methods
The following recommended methods may be used to install the operator.
6.6.1. Through-wall
Applications:
• Pre-fabricated walling
• For heavy gates operating
frequently
6.6.2. Chemical anchors
Applications:
• Masonry pillars
• Frequent use
6.6.3. Welding
Application:
• Steel pillars
FIGURE 9
FIGURE 11
Pillar
Steel
pillar
Wall Bracket
Wall Bracket
Through-wall bolt
Welding machine
FIGURE 10
Pillar
Wall Bracket
Chemical anchor
