SECTION 6PREPARATION OF SITE
6.5. Pillar Hinge Depth Limitation - Inward Opening
Figure 8 shows the pillar hinge depth limitation for an Inward opening gate.
An operator must be installed in accordance with these limitations to ensure that it does
not interfere with the operation of the gate during movement. The hinge depth of the
gate on the pillar, needs to be checked against the pillar maximum values in Table 9
to determine if the installation is possible. If the hinge depth of the gate is excessive,
the gate may have to be relocated on the pillar to achieve the required pillar maximum
values.

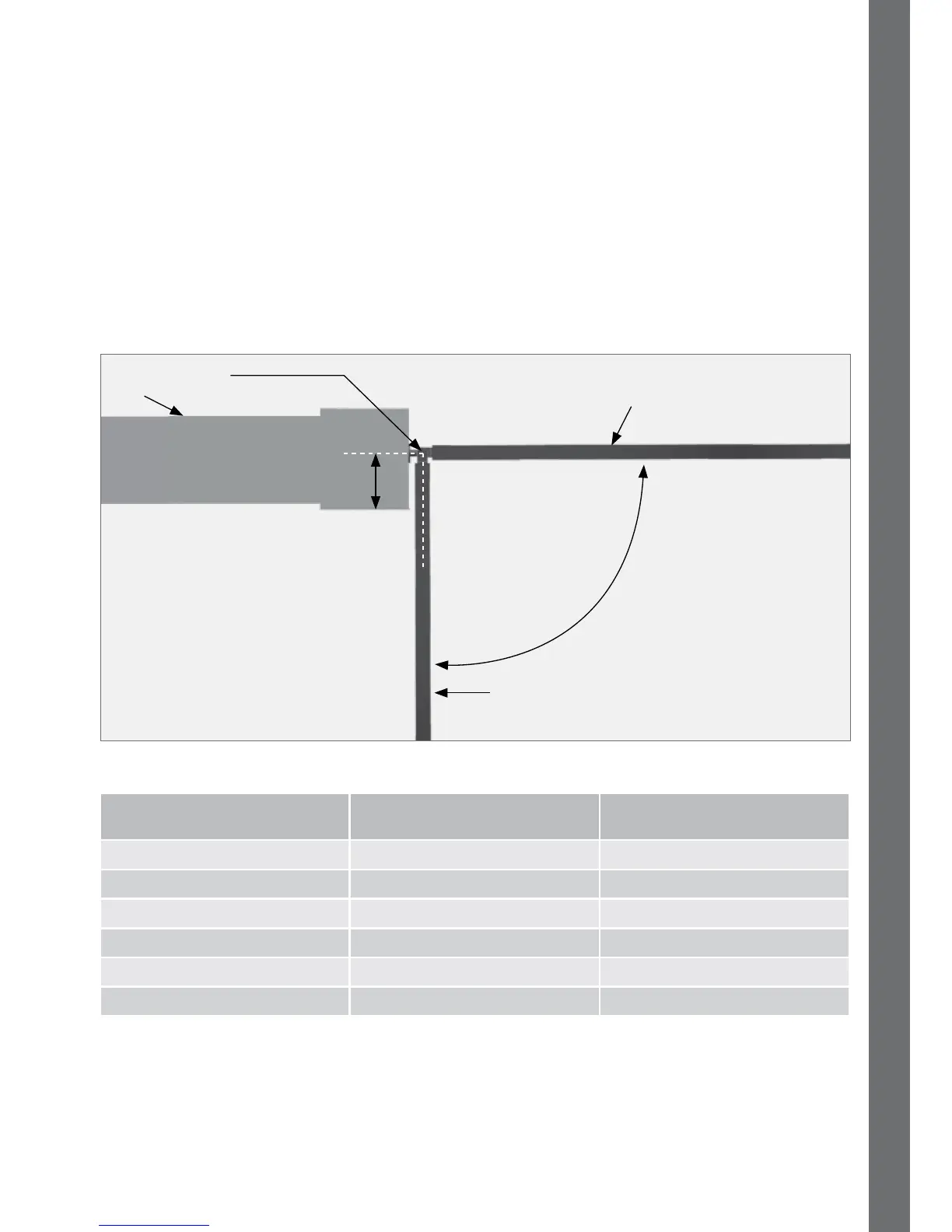

FIGURE 8. PILLAR HINGE DEPTH LIMITATION FOR INWARD OPENING GATE
Pillar maximum
Wall
Gate in closed position
Gate in open position
Gate swing angle
Gate hinge point
Operator Pillar Maximum Swing Gate Angle
VANTAGE 400 175mm 90°
VANTAGE 400 155mm 100°
VANTAGE 400 145mm 110°
VANTAGE 500 245mm 90°
VANTAGE 500 235mm 100°
VANTAGE 500 230mm 110°
TABLE 9
