Centurion Vantage - VANTAGE 500 Outward Opening Tables

page 37 www.CentSys.com
SECTION 10 OPERATOR INSTALLATION - OUTWARD OPENING GATES

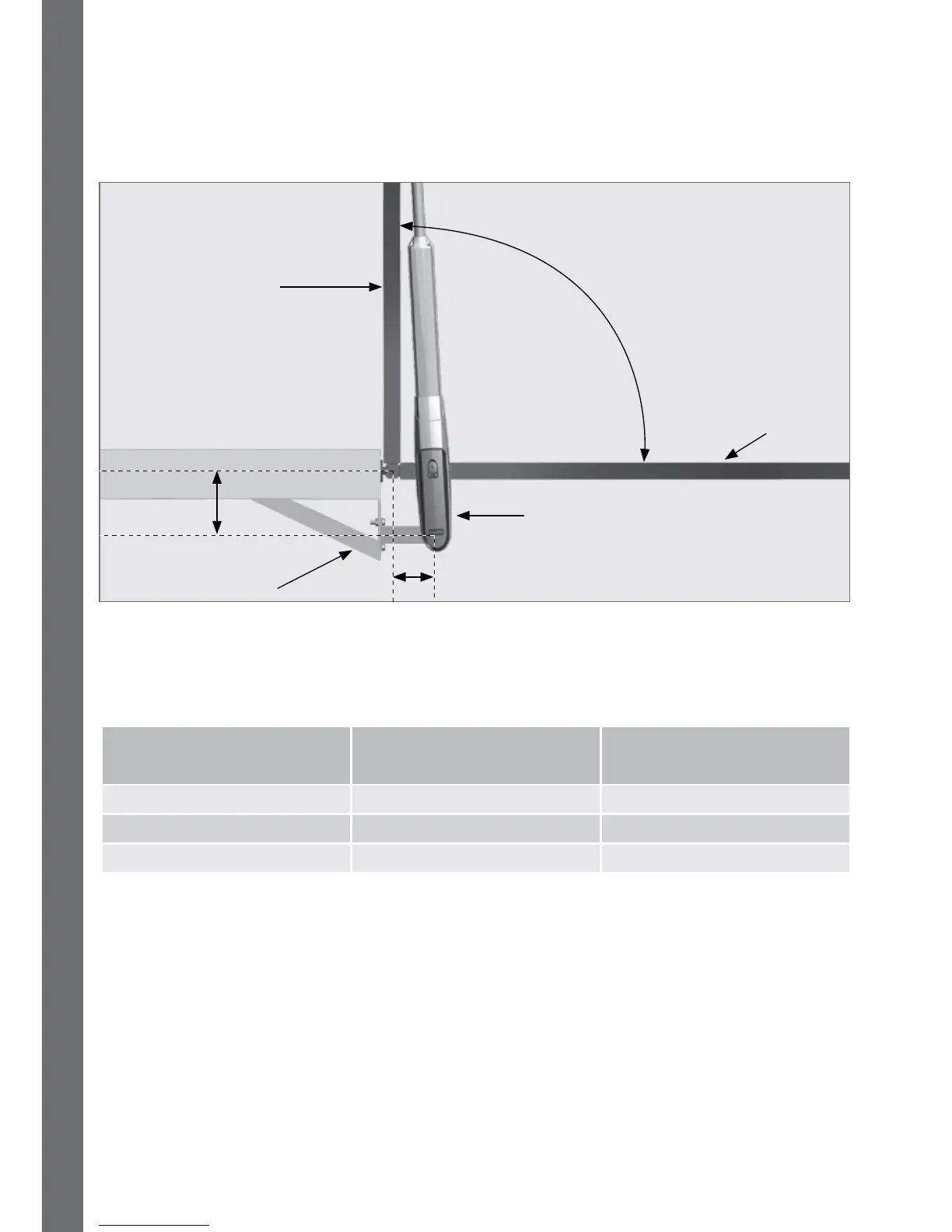

FIGURE 28. VANTAGE 500 OUTWARD OPENING GATE
Make up bracket to suit
B
Gate in closed
position
Gate in open position
VANTAGE
operator
Gate opening angle
VANTAGE 500 Outward Opening Gate:
VANTAGE 500 Outward Opening Geometry Tables:
Gate Opening Angle A B
90° 280mm 210mm
100° 255mm 200mm
110° 240mm 190mm
A
TABLE 17
