CESAB B 200 - Page 379

12-45
0
1
2
3
4
5
6
7
8
9
10
12
12
12
12
15
16
16
18

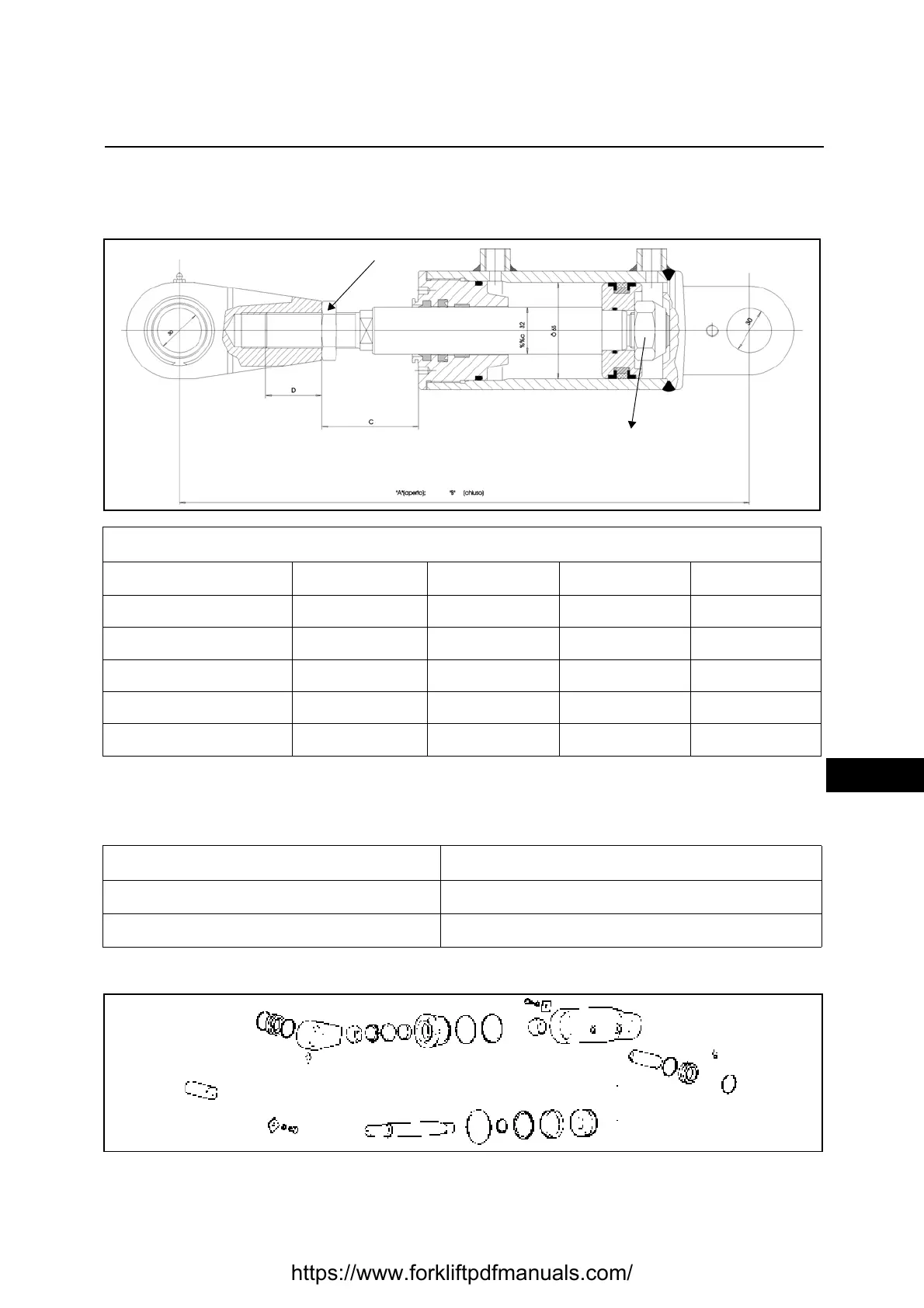

TILTING CYLINDERS
GENERAL
Tightening torque T=Nm
(*) cylinder open
(**) cylinder closed
SPECIFICATIONS
COMPONENTS
ROD HEAD ADJUSTMENT
Tilt angle A (*) B (**) C D
3° forwards - 4° backwards 437.0 395.0 101.5 31.5
3° forwards - 6° backwards 436.5 384.5 77.0 38.0
4° forwards - 5° backwards 442.5 390.5 83.0 32.0
5° forwards - 6° backwards 448.0 384.5 65.5 38.0
6° forwards - 5° backwards 454.0 390.5 71.5 32.0
Cylinder type Double acting type
Cylinder internal diametermm 65
Rod external diameter mm 32
M = 300 Nm
T = 300 Nm
