12-47
0
1
2
3
4
5
6
7
8
9
10
12
12
12
12
15
16
16
18

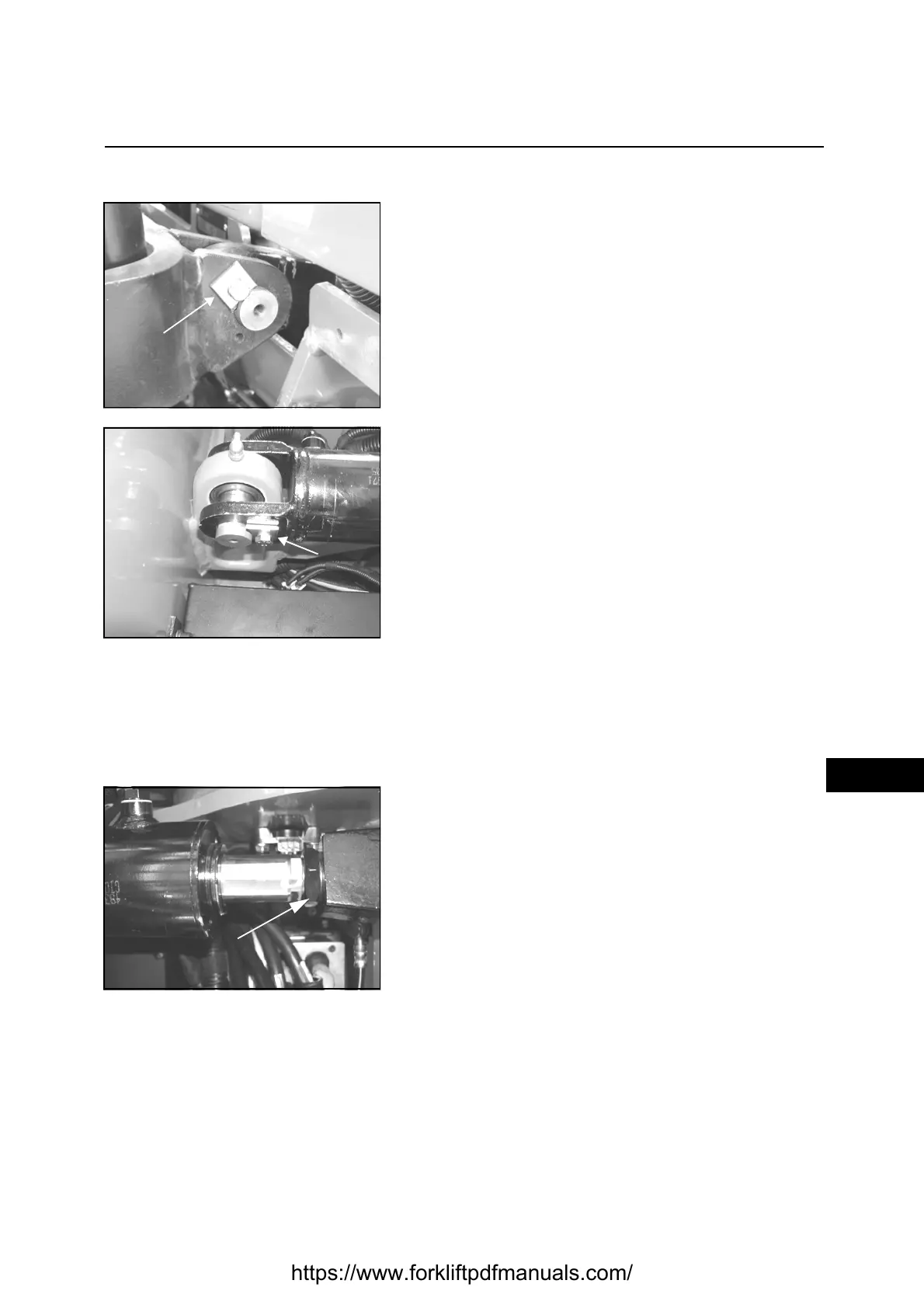

Point Operation
[Point 1]
Disassembly:
Remove the safety screw and then the tilting cylinder
front pin
[Point 2]
Disassembly:
Remove the safety screw and then the tilting cylinder
rear pin
SETTING
Note:
• Adjust the mast forward and backward tilting angle (to prevent uneven tilting) when the tilting
cylinder and mast are replaced.
Adjustment:
Turn the tilting cylinder rod with a spanner on the
appropriate sense and then tight counter nut with a
tightening torque of 300 Nm
