Cessna R182 - Page 162

SECTION
7
AIR,PLANE
& SYSTEMS
DESCRIPTIONS
AUIOfiTAIIC
AUDIO SETECTION
TRANSMITTER
SELECTOR
SWITCH
TRANSMITTER
SELECTOR
SWITCH
CESSNA
MODEL R182
As illustrated, the
number
1
transmitter
is
selected, the AUTO selector
switch
is in
the
SPEAKER
position,
and the NAV/COM 1,2 and
3
and ADF
1 and 2 audio
selectorswitchesareintheOFFposition.
Withthesrrvitche6setasshown,thepilot
will transmit on
the number
1
transmitter and hear the number 1 NAV/COM re-
ceiver
through the
airplane speaker.
IN DIVIDUAT
AUDIO SETECIION
As
illustrated, the
number
1
transmitter
is selected,
the
AUTO
selector switch is
in the
OFF
position,
the
number 1 NAV/COM receiver is in the PHONE
position,
and the number
1 ADF is
in
the SPEAKER
position.
With
the
switches set as
shown, the
pilot
will
transmit
on
ithe
number 1 transmitter and hear the number
1 NAV/COM
receiver
on a headset;
while the
passengers.are
listening
to the ADF
audio through
the
airplane
speaker. lf
another
audio selector $witch
is
placed
in
either
the PHONE
or
SPEAKER
position,
itwill
be heard simultaneously with
either the
number
1 NAV/COM
or number 1 ADF respectively.
I
Ls
|
"-,r/.t"tPEAKERl;;-l
;(\\Au^ror23rz
-q-O-O-O-@oFi
AUTOMATIC AUDIO
SELECTOR SWITCH
AUDIO
SELECTOR
SWITCH
(TYPICAL}
AUTOMATIC AUDIO
SELECTOR SWITCH
AUDIO
SELECTOR
SWITCH
(TYPICAL)

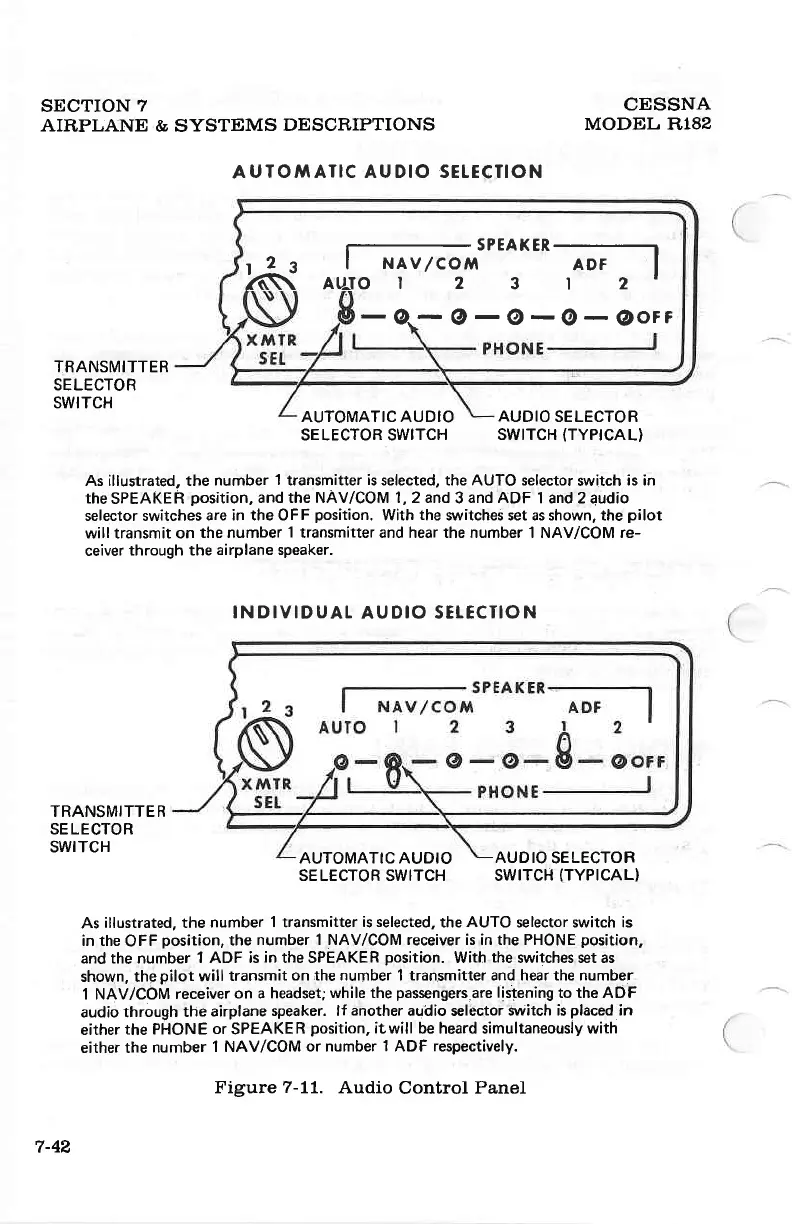

7-42
Figure
7-11.
Audio
Control
Panel
