MODEL
188
& T188
SERIES
SERVICE
MANUAL
AIRCRAFT
SERIAL 18800833\
THRU 18801040
1. Lower Nose
Cap
Detail A
NOTE
2. Retainer
3.
Plate
Should further
adjustment
be desired
4. Lamp
washers
may be added between
plate
5.
Bracket
(3)
and
retainer
(2).
6. Tinnerman Screw
7. Screw

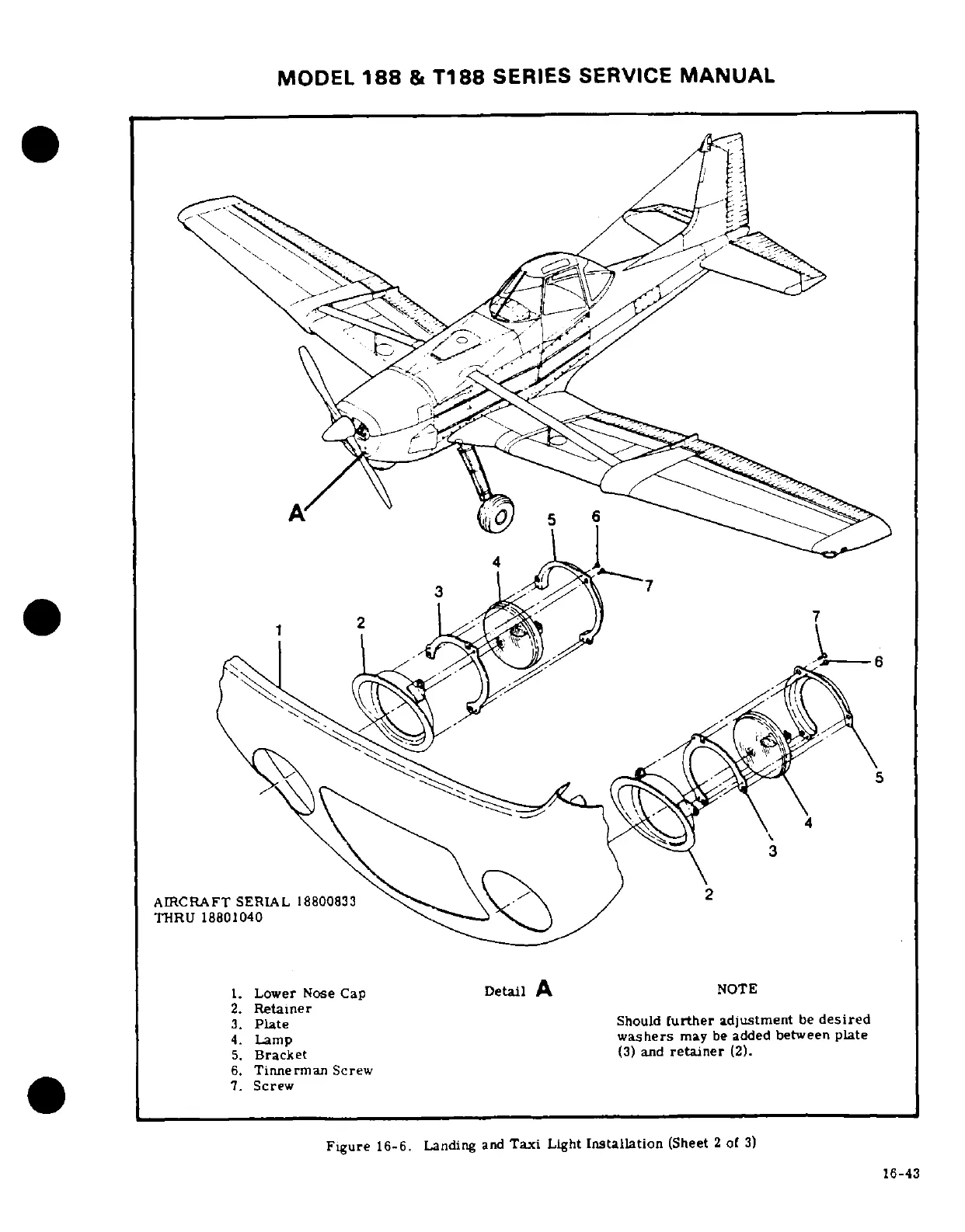

Figure
16-6. Landing
and Taxi Light
Installation (Sheet
2 of 3)
16-43
