Cessna T188C - Page 348

MODEL
188 &
T188 SERIES
SERVICE MANUAL
NOTE
On aircraft
serials
18801375
THRU
BEGINNING WITH AIRCRAFT 18802001 when the new solid rubber
BEGINNING WITH
AIRCRAFT
Detail
forward
engine mounts
are
installed,
SERIAL
18801041
refer to Cessna
Single-engine
Service
Letter
SE75-4.
dated
January
31,
1975.
1. Lower
Nose Cap
6. Lamp
2. Retainer 7. Gasket
3. Spacer
8. Bracket
4. Washer
9. Screw
5. Plate
10. Screw

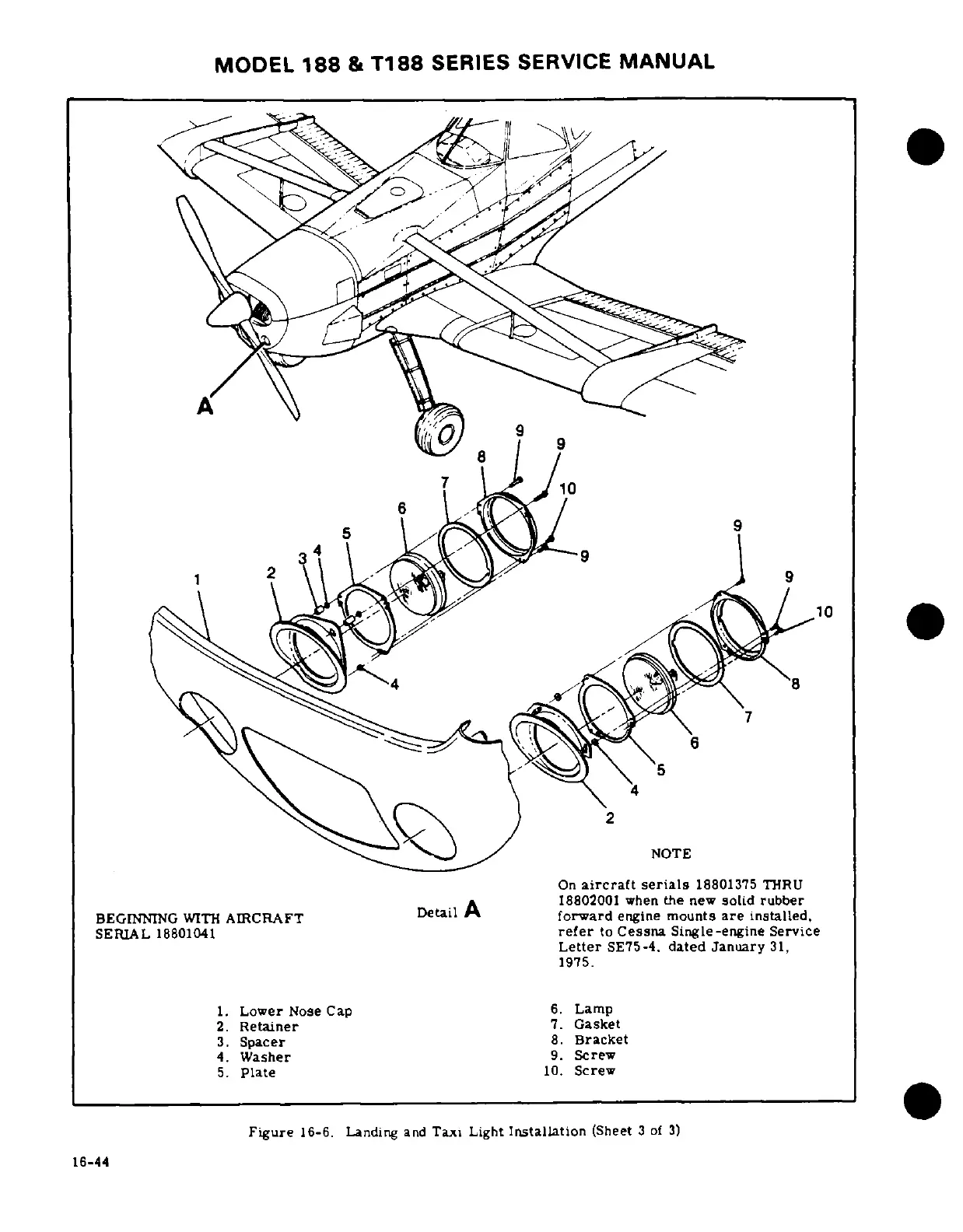

Figure
16-6.
Landing
and Taxi
Light
Installation
(Sheet
3 of 3)
16-44
