Cessna T188C - Page 408

MODEL
188 & T188
SERIES SERVICE
MANUAL
GRIP LENGTH
SELECTION
TABLE
GRIP LENGTH
1/8 DIA.
5/32 DIA.
3/16 DIA.
MIN. MAX. DASH NO. DASH NO. DASH NO.
.020 .062 4-1 5-1 6-1
.063 .126 4-2 5-2 6-2
.126 .187 4-3 5-3 6-3
.188
.250
4-4
5-4
-4
.251 .312
4-5
5-5
6-5
313
.375
4-6
5-
6-
.378 .437 4-7 5-7 6-7
.438 .500
4-8
5-8
6-8
.501
.562
4-9
5-9
6-9
.563 .625 5-10 6-10
.626
.687
5- 1
-11
.688 .750 6-12
SINGLE
-ROW
RIVET LAYOUT
TWO-ROW
RIVET
LAYOUT
1
4

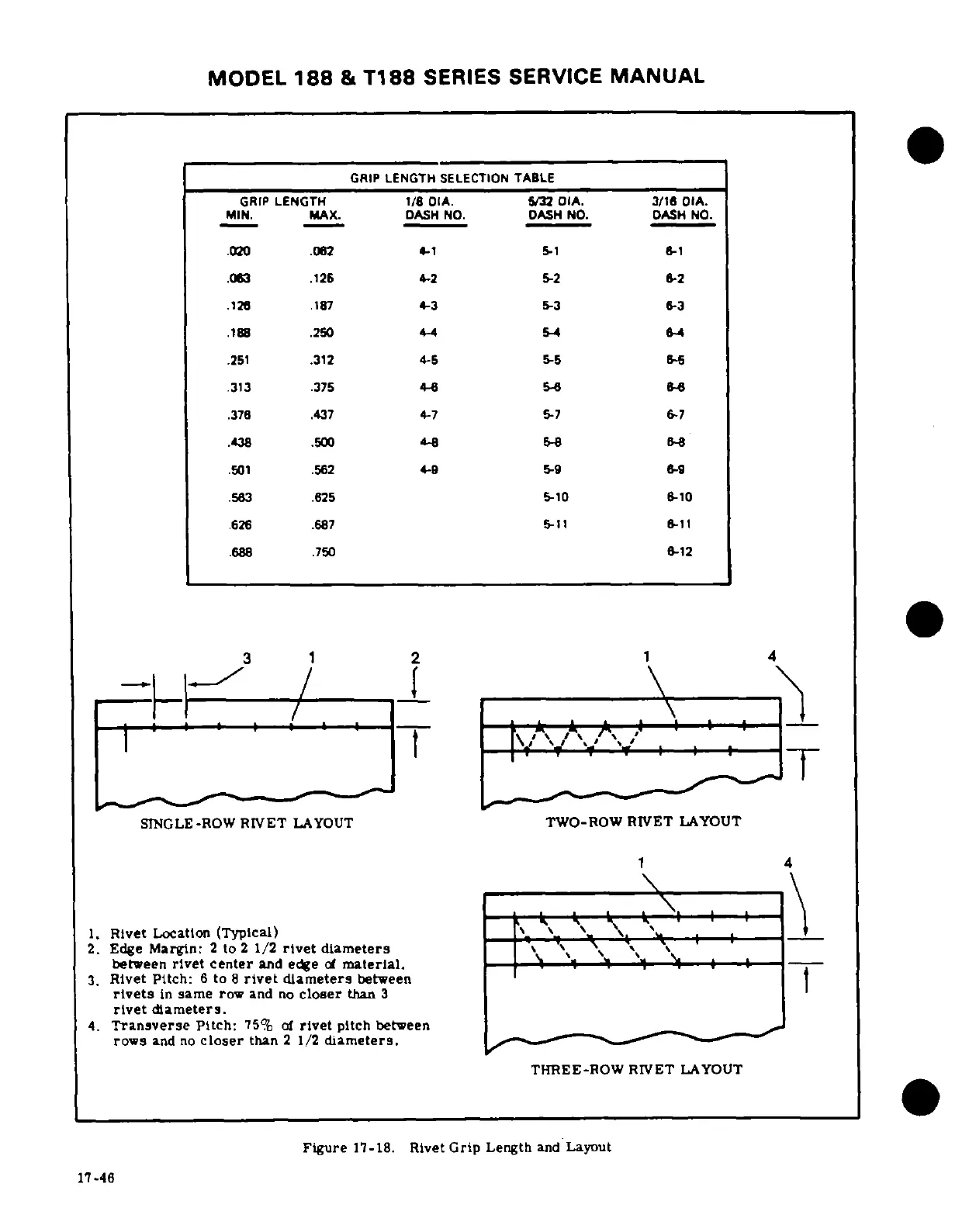

Figure
17-18.
Rivet Grip
Length and Layout
17-46
