MODEL
188 & T188
SERIES SERVICE
MANUAL
> - - USED ON AIRCRAFT
J
"->
,
1
0
WITH
8. 50x10
WHEELS
16
2-^ /^^ I .^ /11
SHIM INSTALLED 1 12
ON
A/C
18800833
THRU
18801009
13
15
USED ON AIRCRAFT
WITH
8.00x6
WHEELS
NOTE
Beginning
with aircraft serial
18800571, new
X
heavy-duty
landing
gear springs
are installed
as standard equipment. Service Kits 188-20
and SK188-21
are available
from the
Cessna
Supply
Division
for
installation
of heavy-duty
springs
on aircraft
prior
to
18800571.
Cess-
na -Single-Engine
Service Letter
No. SE"0-
18 describes
an improved
adhesive
for bond-
ing main
gear fretting
shims,
installed by
the
Service Kits.
NOTE
* For 8. 50x10 MLG torque nuts sym. in
50
in. lbs.
steps,
until 275
±
25 in.
1bs.
is reached.

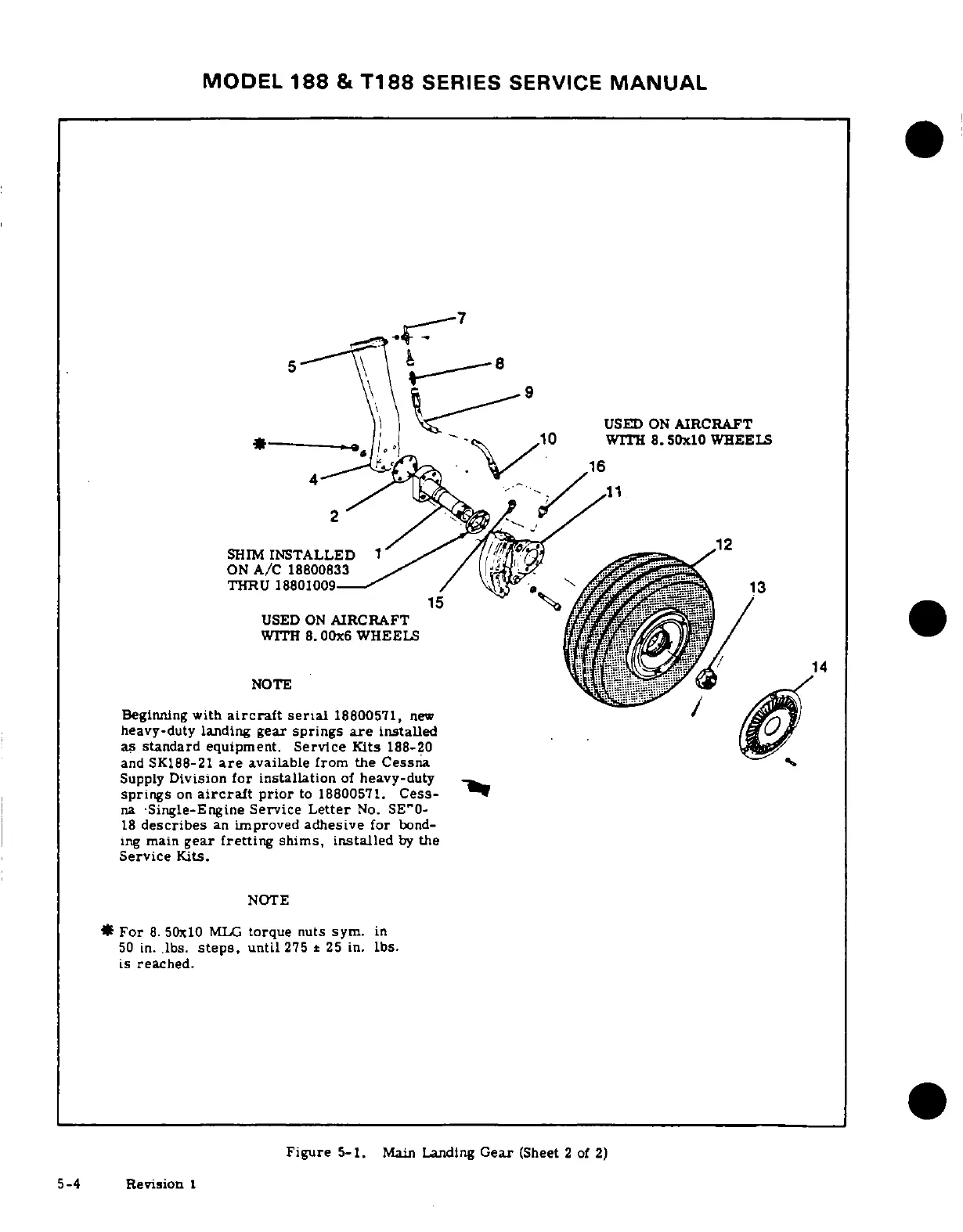

Figure
5-1. Main
Landing Gear
(Sheet 2 of 2)
