Cessna T188C - Page 87

MODEL
188
& T188
SERIES
SERVICE
MANUAL
MS20365-1216C
NUT
AN960-1216L
WASHER
AN960-716L WASHER
MS20365-720C NUT
AN960-1216L
WASHER (BETWEEN
LANDING
GEAR
SPRING
STRUT
AN960-716L
WASHER
AND TUBULAR
STRUCTURE)
MS20002012
WASHER
FOR
SERVICE
PARTS
'
I
LOWER
SADDLE
LANDING
GEAR
MS20002C12
WASHER
WASHER
)MS2000C7
WASHER
NAS147-94 BOLT
AN12-52A
BOLT
NAS147-66 BOLT
MODELS 188 & A188
SERIALS
188-0001
THRU
188-0049
*
TORQUE NUTS
TO 50-70
LB-FT
WHEN NOT
MODIFIED
PER SERVICE KIT
* TORQUE
NUTS
TO
2300-2500
LB-IN
WING
TIPS MAY
BE 3-INCHES
TOTAL
OUT OF
LEVEL;
IF
MORE THAN
3-INCHES.
ADD
MAXIMUM
OF
(3) WASHERS.
(FOR
SERVICE
PARTS.
WING
TIPS MAY
BE 3-INCHES
TOTAL
OUT
OF LEVEL;
IF MORE
THAN
3-INCHES.
ADD
MAXIMUM
OF
(1)
WASHER.)

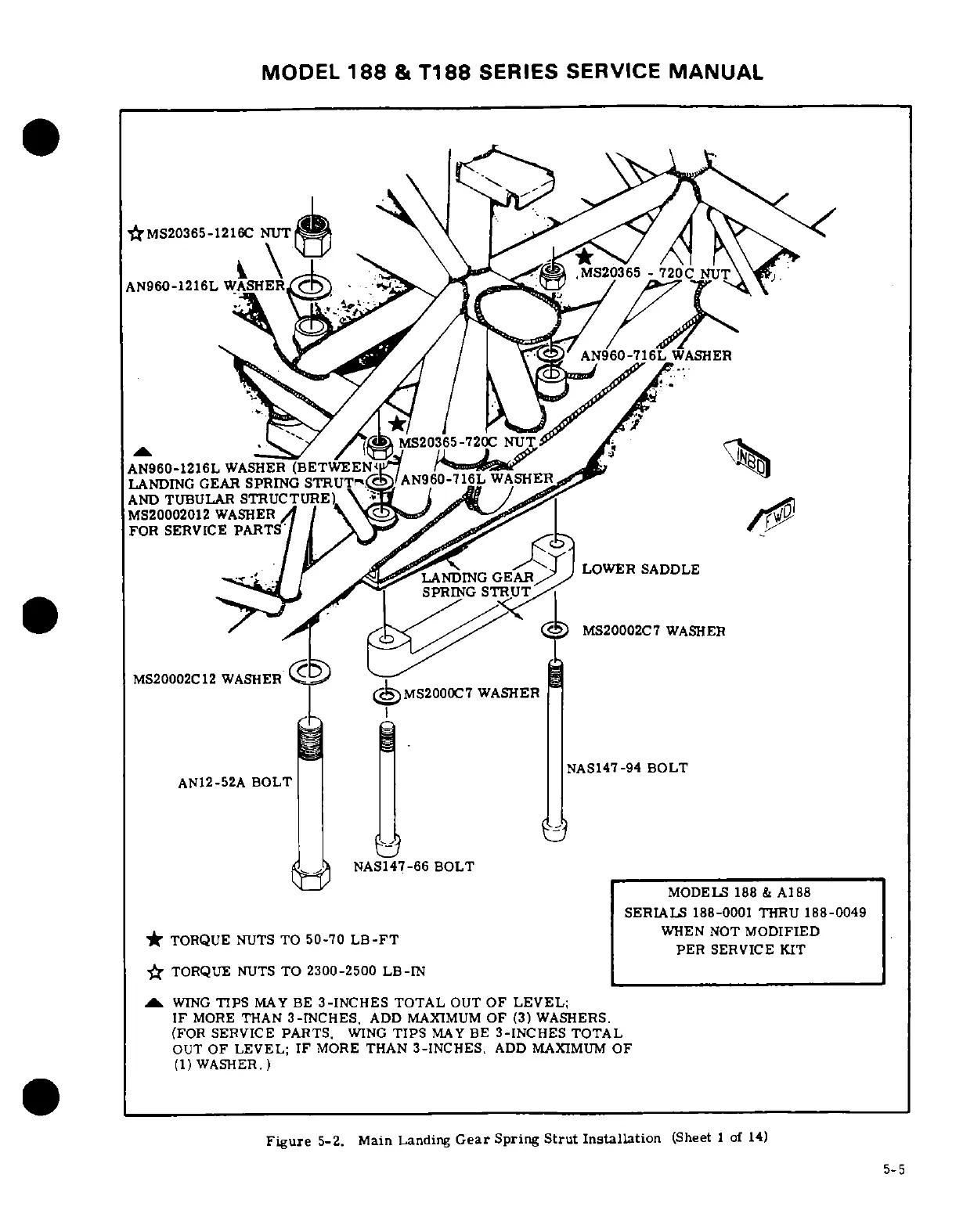

Figure
5-2.
Main
Landing
Gear
Spring
Strut
Installation
(Sheet
1 of 14)
5-5
