C-net 2000 MULTI
18
5. NAV Data Information
Ocean version only
The Navigator pages repeat information from a Navigation
system. It could be a sophisticated Chart Plotter system or
a simple hand held GPS. The data is received from any
standard NMEA 0183 source. Only one source is allowed.
If the signal is from a Differential GPS, a D will be
displayed in the top right corner of the display

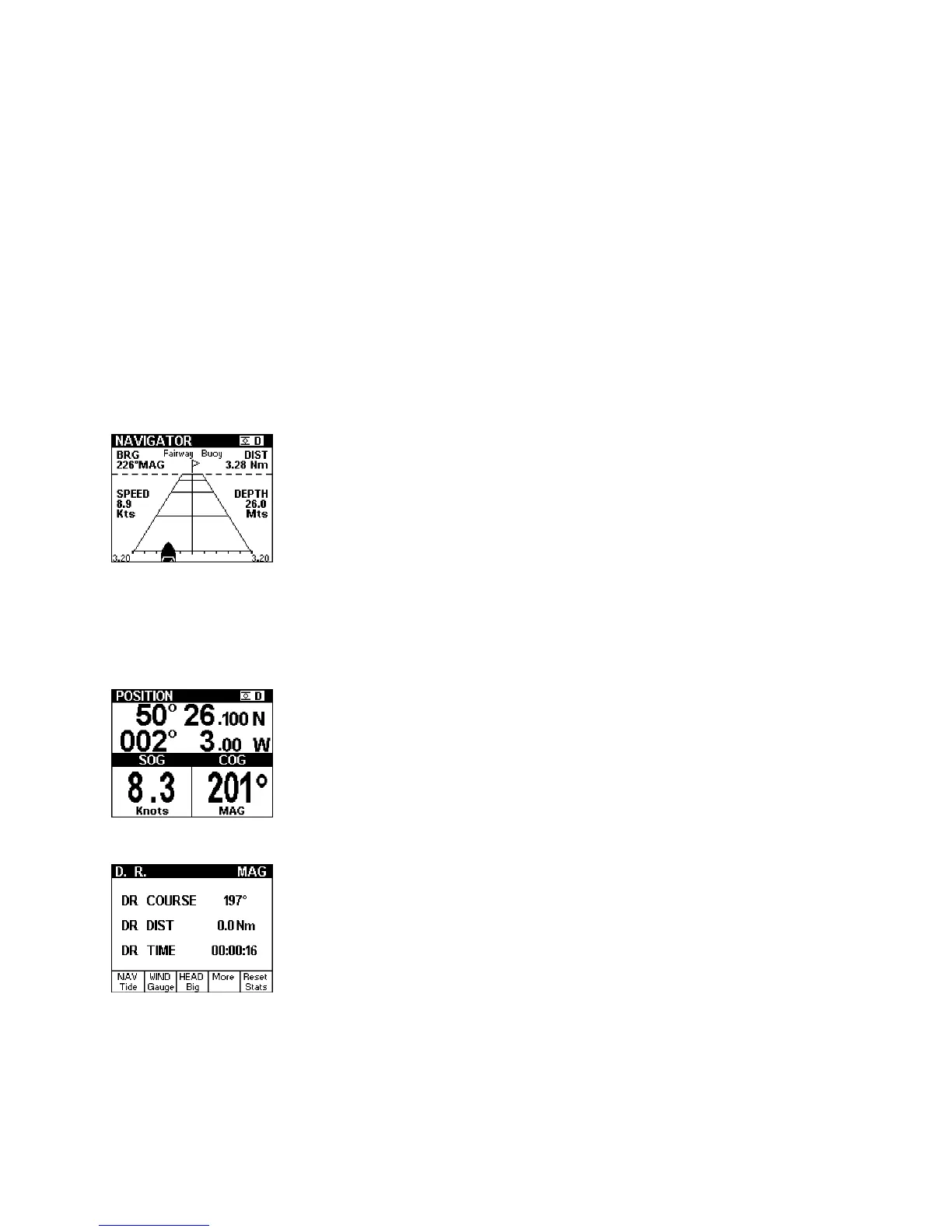

NAV Glide
The first screen shown is the Glide Path view of an
approaching waypoint. The distance, bearing and
waypoint name is shown clearly at the top of the screen.
Also on the screen is the current water speed and depth
reading. The boat symbol at the bottom of the screen
indicates the distance off-track from the direct course to
the waypoint.
NAV Pos
This screen shows the vessels current position, course and
speed.
NAV D.R.
This screen displays dead reckoning information. It uses
boat water speed and compass heading input to calculate
total distance and course made good since power on. Also
available is a RESET function. In the event of a GPS failure
this screen can be used to assist manual navigation.
