Connecting a Single MULTI to the 931659
Transducer Pack
Connect the transducers to the interface box as explained
in the leaflet that comes with the transducer pack.

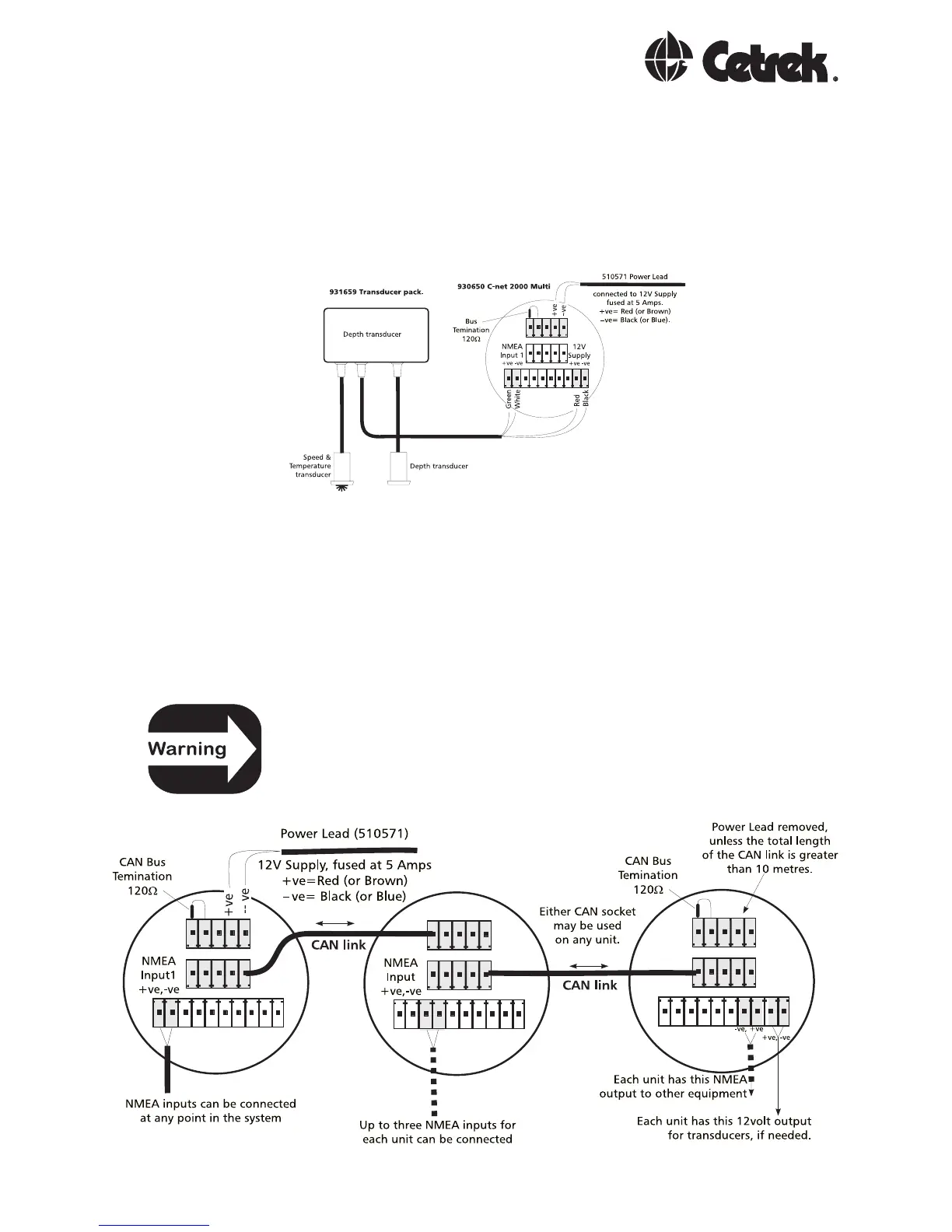

Connect the NMEA and power leads as shown here.
Connecting a System
The two 5way connectors at the rear of this product are
for the high speed CAN bus data link. This operates at
250Kbit/sec. which is 52 times faster than NMEA 0183.
MULTI, WIND and TACK units can all be in one system, in
any sequence.
Link cables are available, Part Numbers:
930030 = 5m Link cable, 930031 = 10m Link cable
When fitting a new unit to an existing system, ensure all
calibration settings are checked and reprogrammed, as
per the calibration procedure on page 27.
