Cetrek C-net 2000 MULTI - Bulkhead Mounting; Specifications; Trunnion Mounting

C-net 2000 MULTI
32

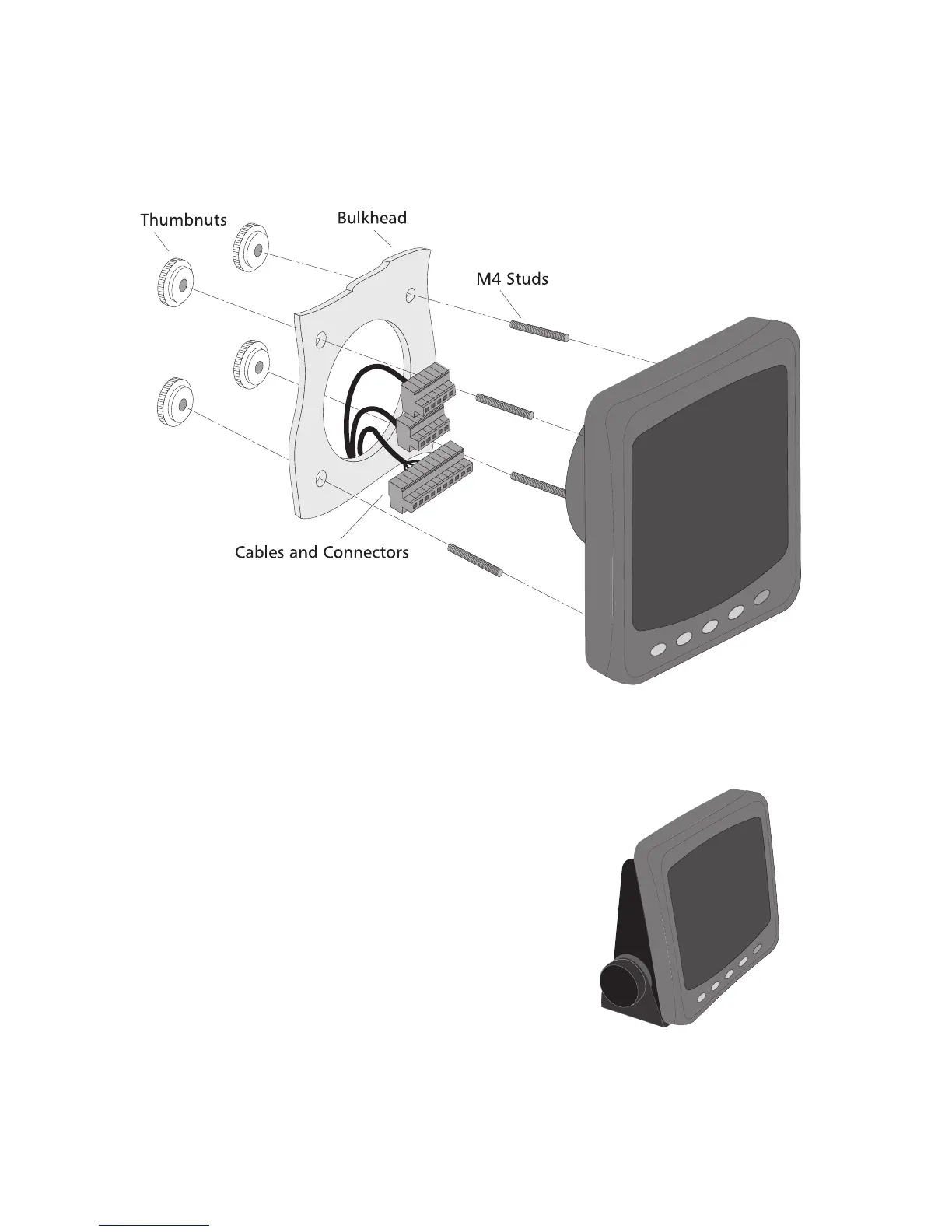

Bulkhead Mounting
Trunnion Mounting
Trunnion Mounting Kit
is available,
Part Number 930293
Specifications
Supply 12V nominal
(10.5V to 15.0V)
max. CAN link 30 units
NMEA inputs 3 per unit
NMEA outputs 1 per unit
Dimensions 110mm x 110mm
(4.3 x 4.3)
max. Stud depth 7mm
Weight 290g (9.3oz)
Operating temp. 0º to +55ºC
Storage temp. -20º to +70ºC
Environmental Weatherproof from front,
back must be protected.
