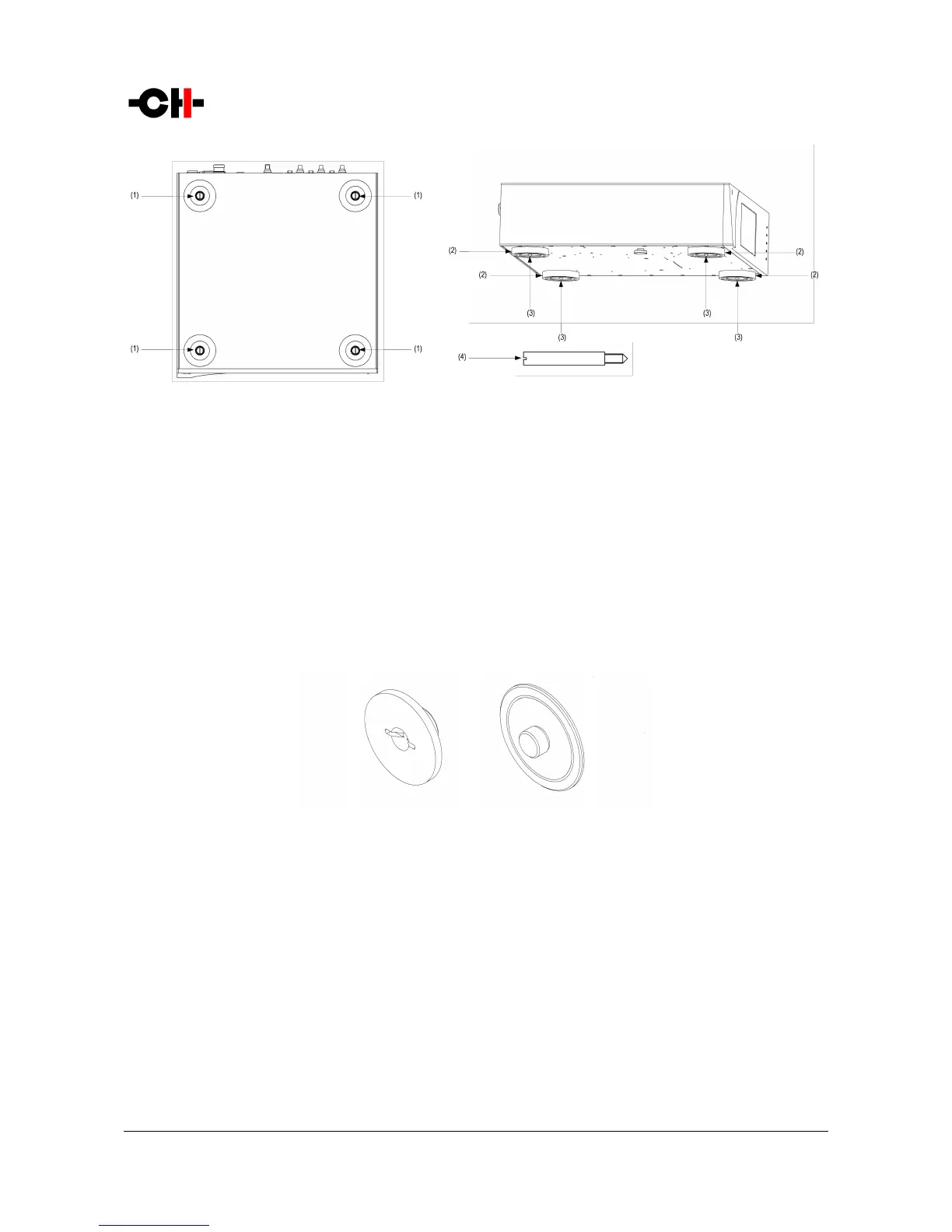

Adjustment shafts, feet and spikes
(1) Adjustment shafts. Insert the adjustment spikes and use the provided screwdriver to secure and adjust individual spikes
(2) Feet
(3) Adjustment spike heads (when inserted into the adjustment shafts)
(4) Adjustment spike
4.4 Top covers
Two types of top covers are delivered with your P1 unit. The steel stacking covers are used when several CH units are stacked on
top of each other. The aluminum top covers are used for decorative purposes only, either for the top unit of stacked units or for
each unit otherwise. Do not stack any component other than CH's on your P1 nor use the aluminum top covers in the middle of a
stack of units.
Shaft covers (left: stacking cover, right: top cover)
14 P1 User Manual Rev 1.1
