5 Connections
This section provides information on how to connect your P1 phono stage to the rest of your system. Please connect your P1 in the
same order as this chapter describes, starting with the audio connections and ending with the mains connections.

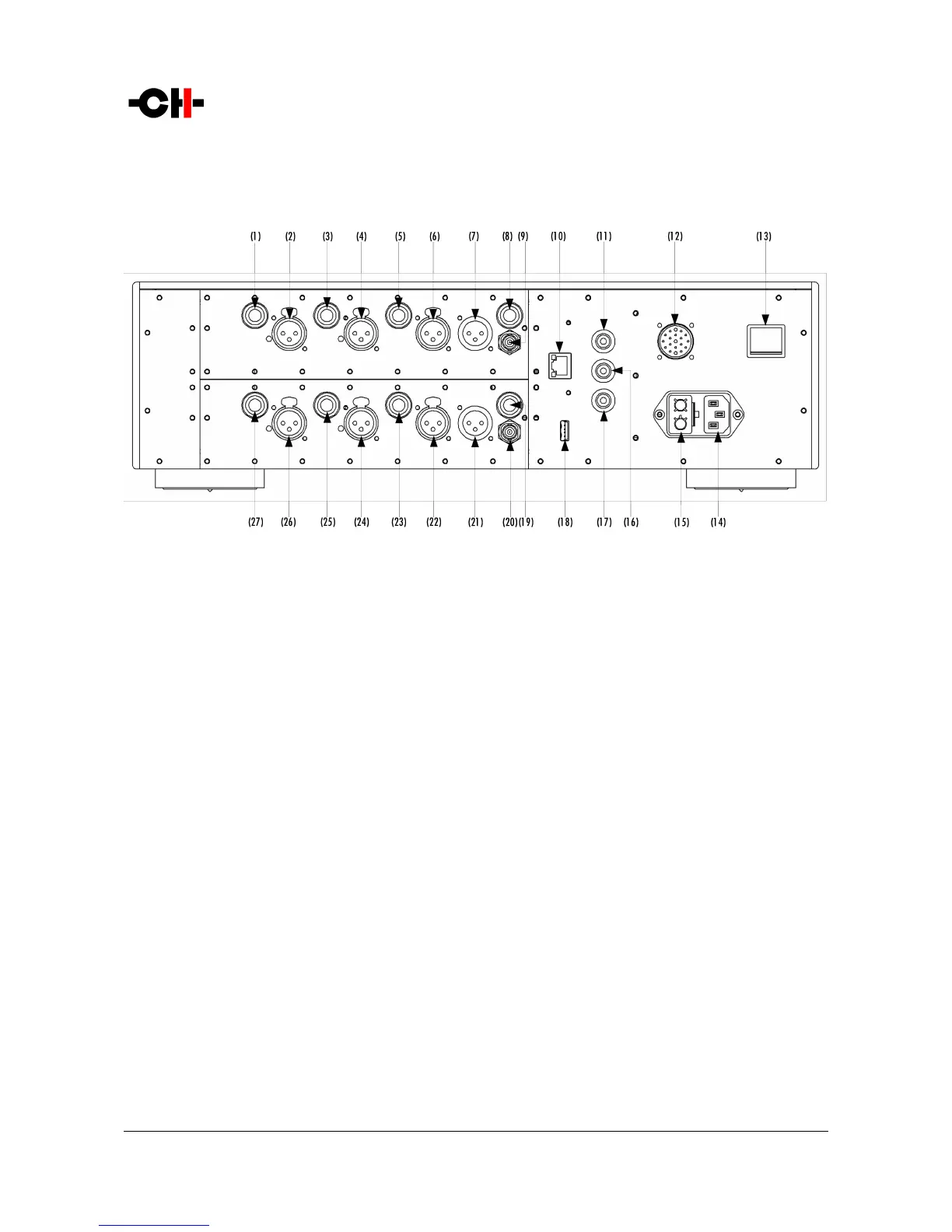

P1 rear panel connections
(1) RCA left MC1 current mode input
(2) XLR left MC1 current mode input
(3) RCA left MC2 current mode input
(4) XLR left MC2 current mode input
(5) RCA left MM/MC voltage mode input
(6) XLR left MM/MC voltage mode input
(7) XLR left output
(8) RCA left output
(9) BNC left output
(10) Ethernet port for command interface
(11) Analog ground connector 1.Can be connected to a tonearm's ground wire using provided jumper banana adapter
(12) External power supply connector for X1 power supply option
(13) Power on/off switch
(14) Power cord receptacle
(15) Power fuse and voltage selection
(16) Analog ground connector 2.Can be connected to a tonearm's ground wire using provided jumper banana adapter
(17) Earth connector. Internally connected to digital ground
(18) USB port for software updates
(19) RCA right output
(20) BNC right output
(21) XLR right output
(22) XLR right MM/MC voltage mode input
(23) RCA right MM/MC voltage mode input
Rev 1.1 P1 User Manual 15
