2 System Setups
The following setups can be realized.
2.1 Dual Monaural setup
In this setup, a single P1enclosure is used to hold the Left and Right channels. Two boards are fitted inside its chassis, each one
independently processing a single channel. The mains power supply section is common to both the board, however separate
dedicated DC regulation circuits are used for each board. For ultimate performances, the X1 External Power Supply unit should be
added to the setup.

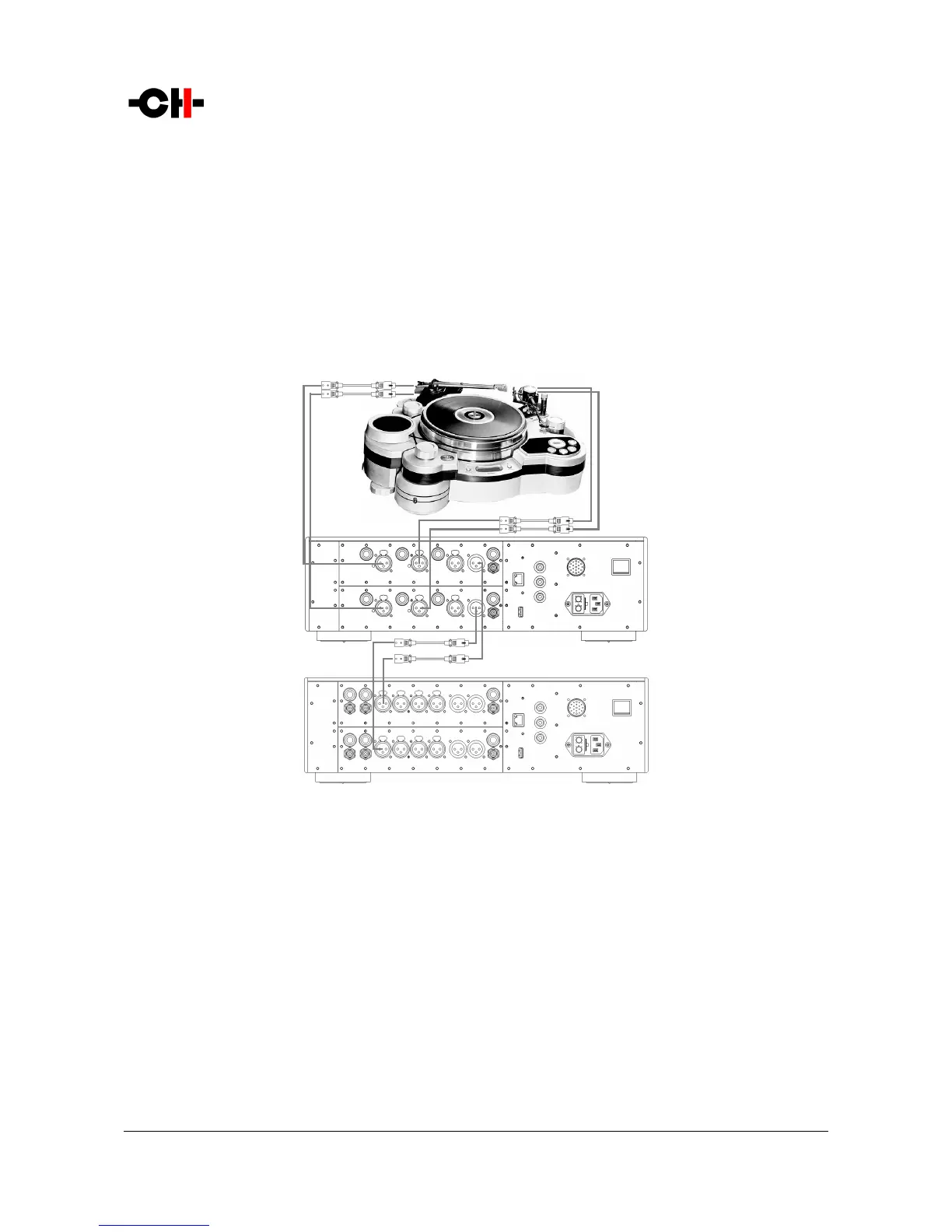

Dual Monaural setup
Rev 1.1 P1 User Manual 9
