CHAFFOTEAUX EXPERT CONTROL Manual

80
GB
installation

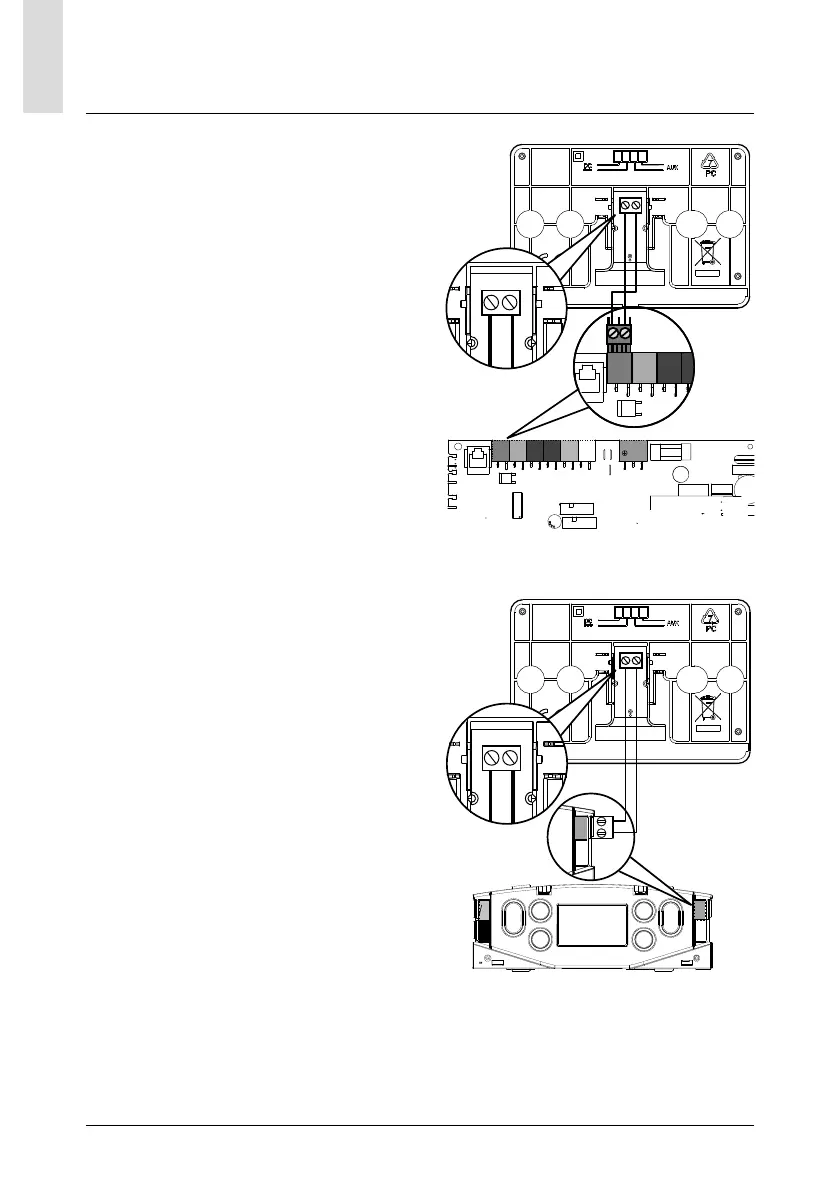

Connection to the boiler
The sending, receiving and decoding of sig-
nals occurs through the BridgeNet® BUS
protocol, which puts the boiler and the sys-
tem interface in contact with each other.
- connect a pair of wires to the BUS con-
nector on the boiler P.C.B.
- connect the pair of wires running from
the BUS connector to the system inter-
face terminal.
NOTE: To avoid interference problems
when connecting the room sensor and
boiler, use a shielded cable or twisted
pair cable.
N
N
FLAME
L
L
BUS
TB
FLOOR
TA 2
SE TNK SOL TA1
CN14
CN13
CN19
CN1
CN4
1
1
1
SE
BUS
TA1
T
230V
B
BUS
TB
FLOOR
TA2
SE TNK
BUS
B T
BUS
B T
B T
B T
BUS
TB

CHAFFOTEAUX EXPERT CONTROL Specifications

General

Brand	CHAFFOTEAUX
Model	EXPERT CONTROL
Category	Remote Control
Language	English
