a correction which is usually made to the
fl ow temperature in this type of system,
during climatic adjustment.
Turn the knob and select:
4.2.4 Room Infl uence Proportional
Press the OK button.
Turn the knob and set the most suitable val-
ue, then press the OK button.
The infl uence of the room sensor can be
adjusted to a value between 20 (maximum
infl uence) and 0 (no infl uence). This means
the contribution of the room temperature
to the fl ow temperature calculation can be
adjusted.
Turn the knob and select:
4.2.5 Maximum temperature
Press the OK button.
Turn the knob and set the most suitable val-
ue, then press the OK button.
temperatura di mandata all’impianto
bassa tempertaura alta tempertaura
temperatura esterna
valore di consegna
temperatura ambiente
°C
20
25
15
30
40
50
60
70
80
90
100°C
10
2.53.03.5 2.0
1.5
1.2
1.0
0.8
0.6
0.4
0.2
5 0 -5 -10 -15 -20 °C

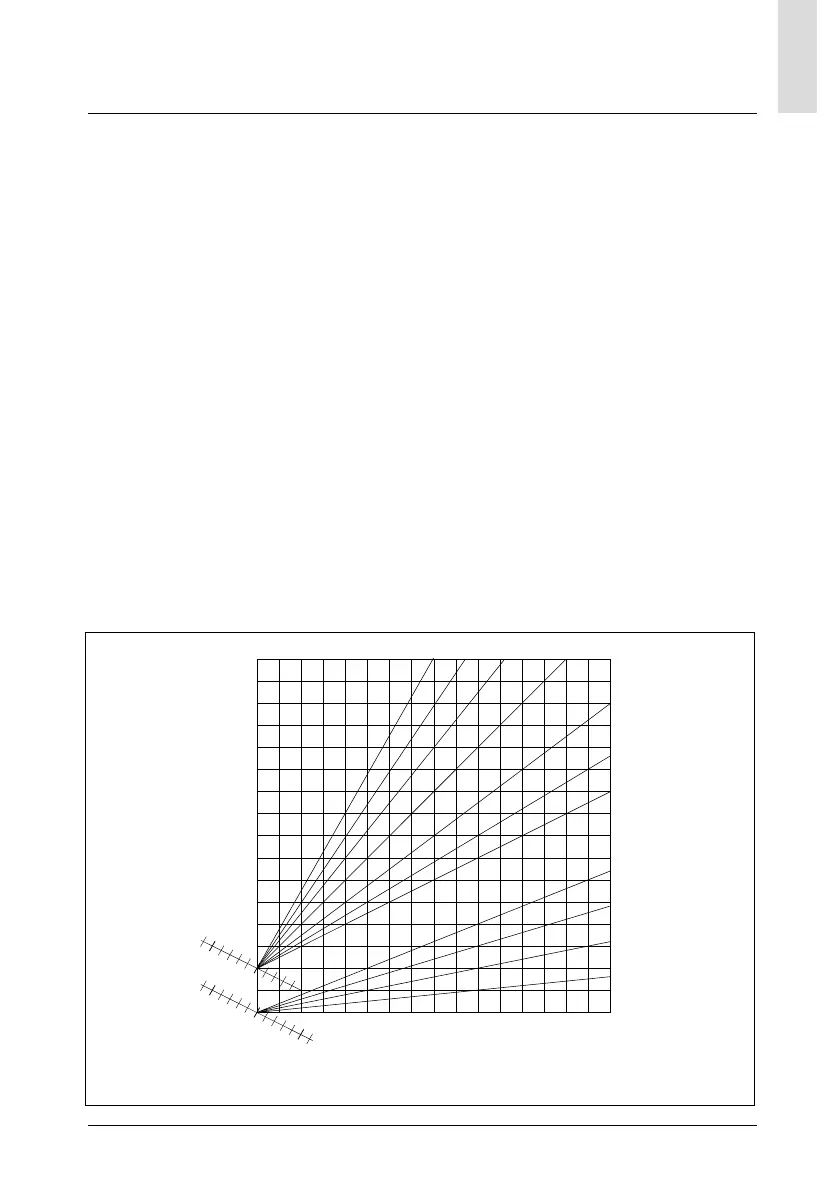

curve family chart
Turn the knob and select:
4.2.6 Minimum temperature
Press the OK button.
Turn the knob and set the most suitable val-
ue, then press the OK button.
Repeat the steps described to set the values
for zones 2 and 3, selecting menus 5 and 6.
temperature adjustment
outdoor temperature
LOW temperature
room temperature set-point value
HIGH temperature
fl ow temperature
to the system
