FY –33VC Operation manual
- 36 -
A. Look head C1 as datum mark, its horizontal and vertical value is 0. The value is A (0, 0).
B. The vertical gap between head C2 and head C1 is ensured by mechanical precision. The value of
horizontal gap is B. (In above figure is 255)
C. The vertical gap between head C3 and head C1 is ensured by mechanical precision. The value of
horizontal gap is C. (In above figure is 510)
D. The vertical gap between head M1 and head C1 is 0 in above figure. The value of horizontal gap is D. (In
above figure is 765)
E. The vertical gap between head M2 and head C1 is ensured by mechanical precision. The value of
horizontal gap is E. (In above figure is 1020)
F. The vertical gap between head M3 and head C1 is ensured by mechanical precision. The value of
horizontal gap is F. (In above figure is 1276)
G. The vertical gap between head Y1 and head C1 is 0 in above figure. The value of horizontal gap is G. (In
above figure is 1531)
H. The vertical gap between head Y2 and head C1 is ensured by mechanical precision. The value of
horizontal gap is H. (In above figure is 1786)
I. The vertical gap between head Y3 and head C1 is ensured by mechanical precision. The value of
horizontal gap is I. (In above figure is 2041)
J. The vertical gap between head K1 and head C1 is 5 in above figure. The value of horizontal gap is J. (In
above figure is 2296)

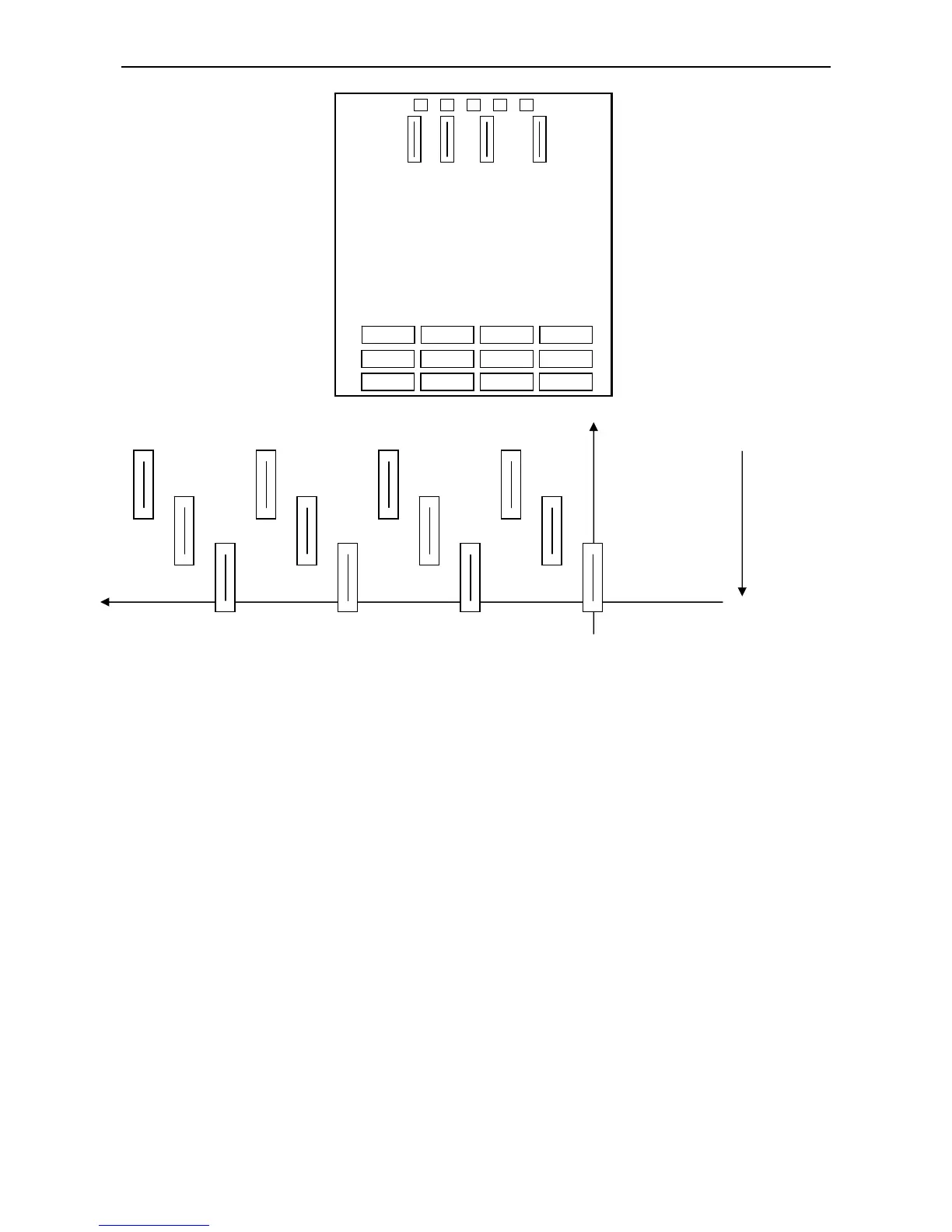

Head 2 Head 5 Head 8 Head 11
Head 1 Head 4 Head 7 Head 10
Head 0 Head 3 Head 6 Head 9
Printhead driving board
Clean position Original
Feed
L K J I H G F E D C B A（0，0）
Head 0-K3 Head 3-Y3 Head 6-M3 Head 9-C3
Vertical gap
Hor. gap
Head 1-K2 Head 4-Y2 Head 7-M2 Head 10-C2
Head 2-K1 Head 5-Y1 Head 8-M1 Head 11-C1
